Tootegrupid

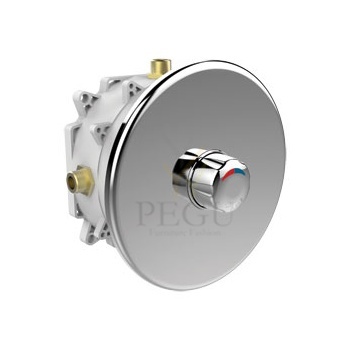

Alpa peitsegisti , kroomnupp, veekindel korpus, 30 sek, antiblock süsteemiga

Tootekood: P35192
Kaubamärk:
Ühik: tk
Tarneaeg: 7-14 päeva
Hind:
542,00 €
Kogus: - +
   - või -

Peitsegisti 30 sek töötsükkel

Antiblock süsteemiga

Kokku sobivad tooted
Suunatav dušiotsik, süvistatud paigaldus

1/2" väliskeere

Tootekood: P29300 ,   Tarneaeg: 7-14 päeva
134,50 €
Sarnased tooted
Damixa dušiotsik Slate, kroom/must
Tootekood: D7665774 ,   Tarneaeg: 7 päeva
64,00 €
Mora Cera Duo köögisegisti

Mora Cera Duo

Energia kokkuhoiu süsteem

Pehmeltsulguv , keraamiline sisu

Muudetuv voolutegevus ja temperatuuri piiraja

ECO funktsioon (energiat ja vett säästev õhusti 9l/min)

Pööratav jooksutoru,60.85, 110, või 360 kraadi ülatuses

Aegreleega loputus üleujutamise vältimiseks

Madal voolutarve, kõrge eluga

IP-klassi andur , IP67



Tootekood: FMO-242102 ,   Tarneaeg: 7-14 päeva
750,00 €
Aeraator pihsti ja voolikuga kööki, 2 funktsiooni

Aeraator pihusti ja voolikuga kööki,

2 funktsiooni

8/l (3 bar)



1801

Veesääst 40% (3 bar)

Kahe funktsiooniga pihustiga RST Aeraator>Long-Life<   segisti jooksutorule M24x1 või M22x1 (üleminek komplektis).  Roostevabast terasest sõel. Toodetud Saksamaal. Pakendis 1 tk.

Tootekood: RSTJ-1801 ,   Tarneaeg: 7 päeva
10,00 €
Isesulgev NEO valamusegisti 15 sek

Töötsükkel 15 sek

Tootekood: P68400 ,   Tarneaeg: 14 päeva
224,00 €
Antivandaalne R/V teras piezo dušisi nupp, eelsegatud veele,  ilma el.adaptorita



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Tootekood: AZP-AUS 11 ,   Tarneaeg: 3-4 nädalad
254,00 €
