Automatne kummikute pesur harjaga, 220V, 50Hz

Tootekood: AZP-RMO 02
Kaubamärk:
Ühik: tk
Tarneaeg: 3-5 nädalat
Hind:
6181,00 €
Kogus: - +
   - või -

RMO 02



automatic washing system for wellingtons

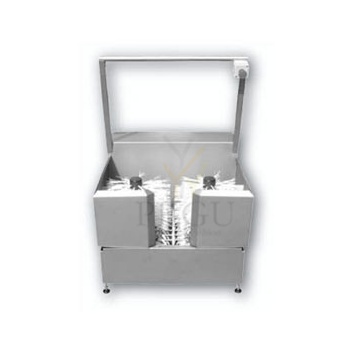

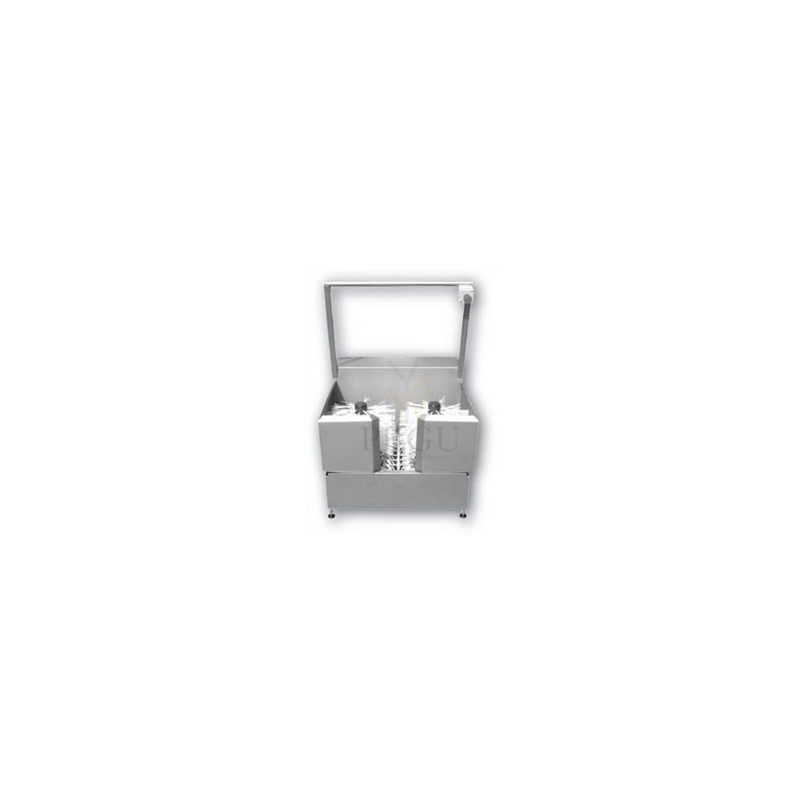

RMO 02 is a stainless steel sensor-controlled washing system with rotary brushes for wellingtons. A built-in photocell sensor reacts to the user holding the handrail. The electromagnetic valve switches on, opens the water inlet, the brushes start to rotate and the circular jet injection of the disinfecting lotion is carried out. After placing the foot with the wellington on the grid in between the rotary brushes, the sole is cleaned by means of the horizontal brush and the leg portion is cleaned by means of two vertical brushes. The system is automatically switched off when the user releases the handrail. There is a CENTRAL/STOP button on the handrail for emergency switch-off.
The washing system is intended for free standing installation on the floor. Imperfections of the floor are balanced out by four adjustable hobs. The construction of the system allows the outlet to be placed above the floor level.
The RMO 02 washing system, with its easy maintenance, is mainly intended for operations where quick removal of mechanical dirt from wellingtons is required.
The canister with disinfecting solution is not part of the delivery.

Package contents

  • body of the washing machine
  • removable grid
  • electronics with photocell
  • three rotary brushes
  • jerican holder
  • priming hose
  • adjustable supporting legs
  • central stop button
Radius of sensor 0,7 m
Water inlet G 1/2“
Water pressure 0,1 – 1,0 MPa
Outlet G 6/4”
Electricity protection IP 55
Power supply 230 V, 50 Hz
Power requirement 370 W
Water temperature max. 42°C
Weight 95 kg

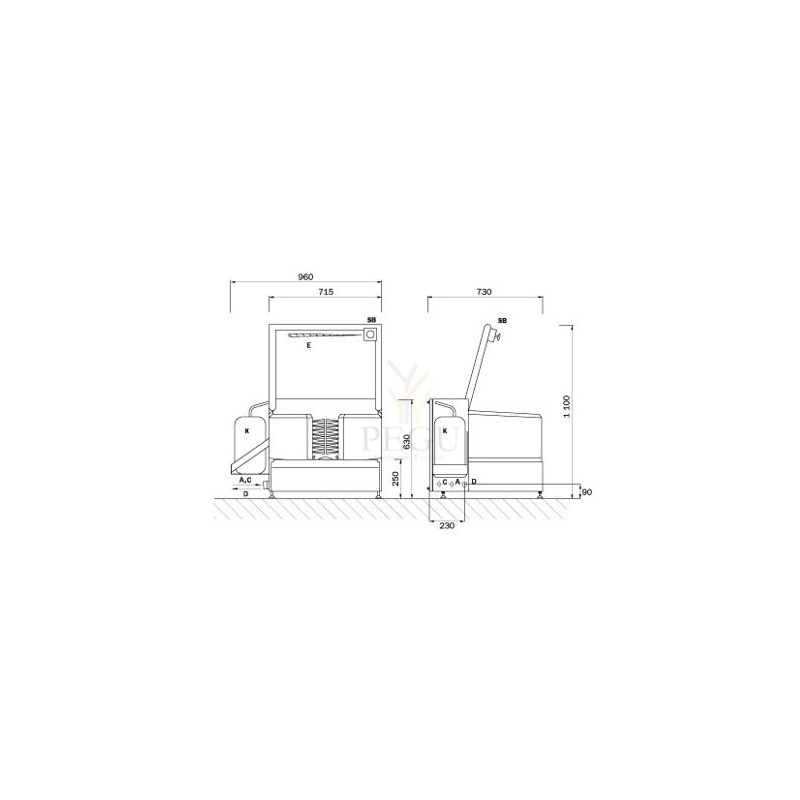

  • Set up water inlet as per picture
  • Set up outlet G 6/4” via effluvial cover
  • Set up cable for power supply – 230 V, 50 Hz
