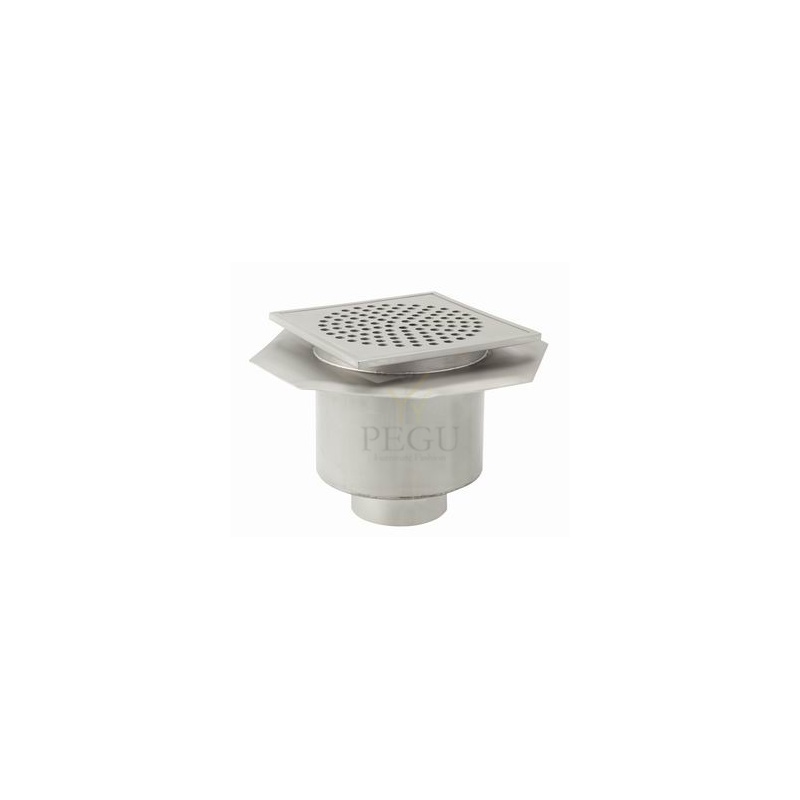

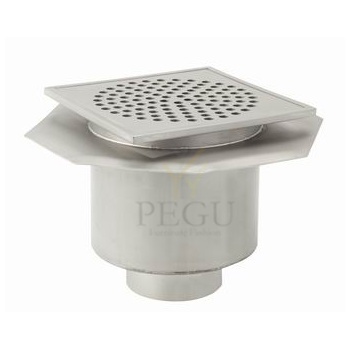

R/V teras veetrapp, D75 mm vertikaalne, 150x150mm

Tootekood: AZP-PV 01.D.75.P
Kaubamärk:
Ühik: tk
Tarneaeg: 3-4 nädalad
Hind: 120,00 €
111,60 €
Kogus: - +
   - või -
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

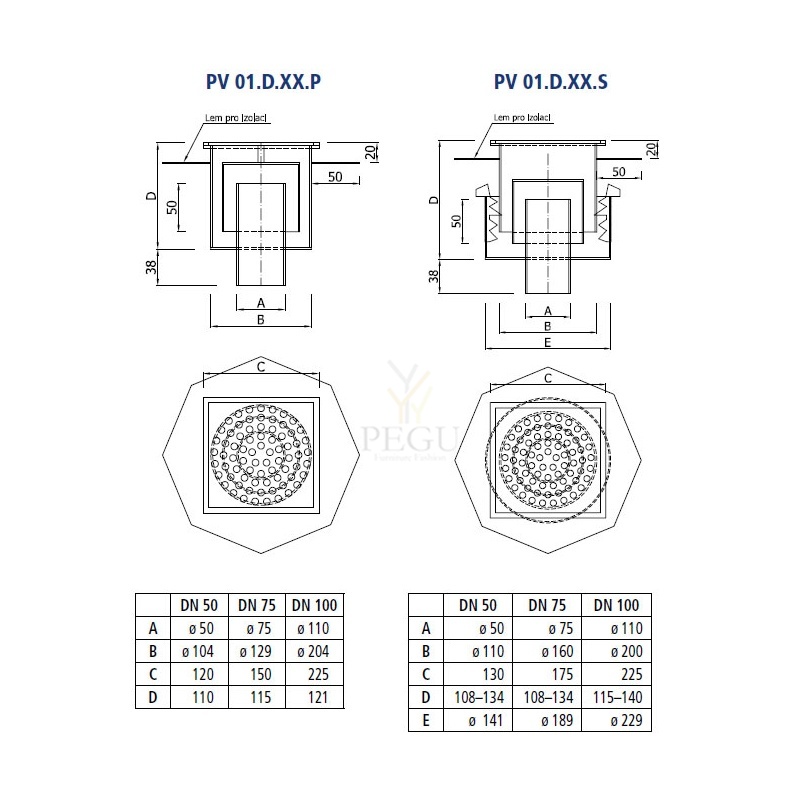

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm




PV 01

нержавеющий трап






PV 01 целонержавеющий трап определённыйк оттоку воды в душах, промышленных и другых внутерных помещениях. Водосток конструрирован для ходящих а нет для машин. Tрап изделан из нержавейки по качестве ČSN 17 240 (AISI 304). Для очистки не возможно ползоваться средствами содержающие хлор. В помещениях, кде к очистке хлор надо, рекомендуем консультовать произведение из другого материала (например AISI 316)



Для ухода за изделиями из нержавеющей стали рекомендуем изпользовать средство Würth – консервация (арт. 0893 121 K), очистка (арт. 893 121 1).



На заказ сделаем также другые варианты - сток d = 50 mm, 110 mm; без каймы для гидроизолации другая решётка, без вкладки против запахa, с настраимаевой высотой, и далее. Пошлите спрос на произведение по вашему требованию, срочно ответим.




Типовые варианты
PV 01.D.75.P - трап d 75, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности, установочная высота
PV 01.D.75.S - трап d 75, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности
PV 01.B.75.P - трап d 75, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности, установочная высота
PV 01.B.75.S - трап d 75, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности,
PV 01.D.50.P - трап d 50, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности, установочная высота
PV 01.D.50.S - трап d 50, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности
PV 01.B.50.P - трап d 50, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности, установочная высота
PV 01.B.50.S - трап d 50, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности
PV 01.D.110.P - трап d 110, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности, установочная высота
PV 01.D.110.S - трап d 110, гидрозатвор против запаха, вертикалный выпуск, фланцы для герметичности
PV 01.B.110.P - трап d 110, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности, установочная высота
PV 01.B.110.S - трап d 110, гидрозатвор против запаха, горизонтальный выпуск, фланцы для герметичности


Основные технические характеристики
мимнимальный просвет: 70 мм
диаметр трубы для соединения с канализацией: 75 мм
протекающие количество воды: мин. 50 л/мин
класс нагрузкы: K3
вес: 2,2 кг


Комплектация
  • корпус трапa
  • решётка с крышкой для вставки против запахa
  • крючок для вынутя решётки


Требования к установке
  1. подготовлена канализация с трубой DN 75, 50, 110
  2. подготовлено отверстие в полу о диаметре мин. 300мм (200мм без каймы для гидроизолации)
