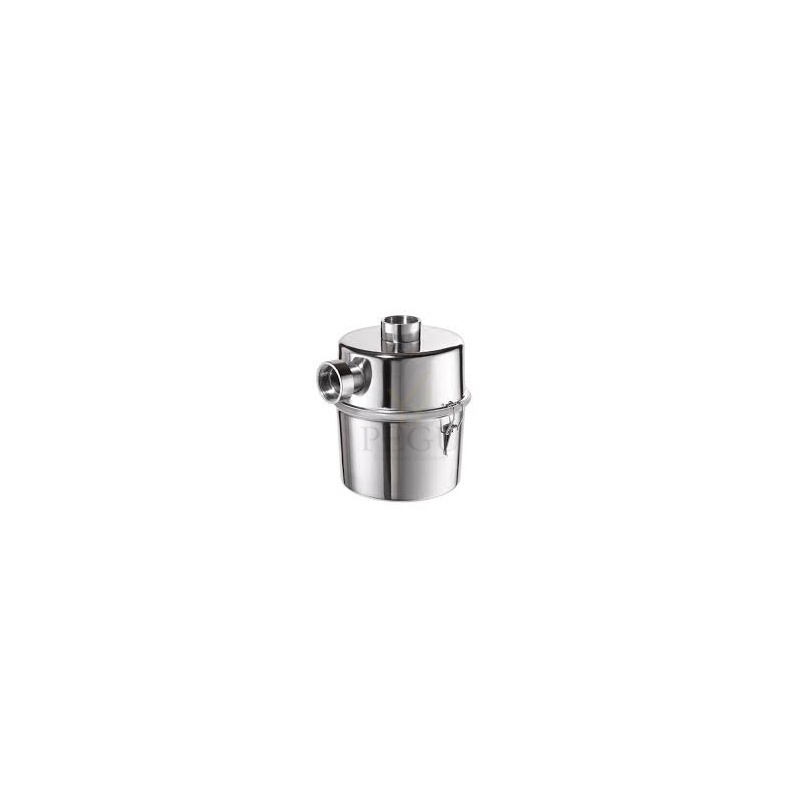

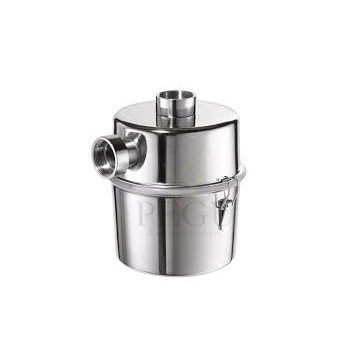

Отделитель песка Elcee 220, 3,5L, Н/Р сталь, AISI304

Артикул: EL220-1080020
Единица: шт
Время доставки: 3-4 недель
Цена:
375,00 €
Кол-во: - +
   - или -

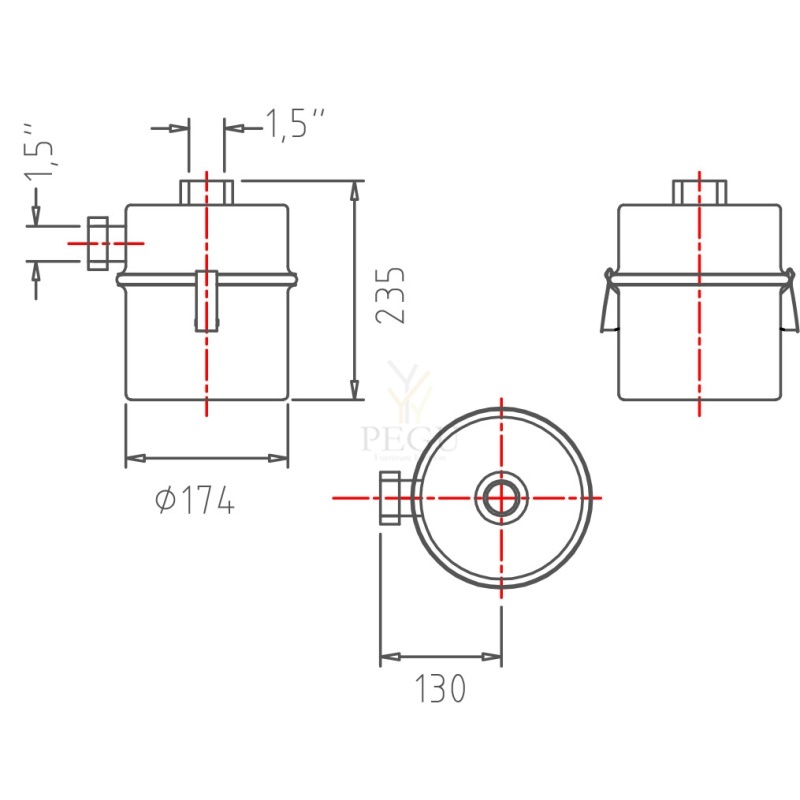

Overall dimension in mm Ø174 x 235 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 2.50

Файлы
