Delabie бесконтактный электронный смеситель BINOPTIC MIX 6V

Артикул: DE-478MCHLH
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
778,00 €
Kuumakse alates: 66,13 €
Кол-во: - +
   - или -

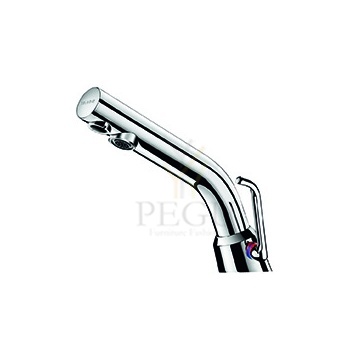

BINOPTIC MIX electronic mixer
Ref. 478MCHLH

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds every 24hr after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking safety.
Spout with smooth interior and low volume of water (reduces niches where bacteria can develop).
Side temperature control with long lever control and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.



TECHNICAL FEATURES

BINOPTIC MIX electronic mixer
Ref. 478MCHLH

Supply 6V battery
Connector M3/8"
Technology Electronic
Drop height 110mm
Spout length 135mm
Flow rate 3 lpm

Файлы

Схожие продукты
Артикул: D7656200 ,   Время доставки: 7 дней
27,55 € (5%)
29,00 €

veesäästu funktsioon Eco-Save

5 pihustivõimalust

Kummiaeraator-lihtne puhastada

Артикул: D7655500 ,   Время доставки: 7-14 дней
46,55 € (5%)
49,00 €
Артикул: D7665900 ,   Время доставки: 7-14 дней
38,00 € (5%)
40,00 €

Elektroisolatsioon klass 1

Kaal 3,8 kg

Voolutarve 1,3-4,8 A

Koguvõimsus 1010W-1150W

Kaitseklass IP23

Müratase 58-68dB(2m kaugusel)

Kuivatusaeg 10-15 sek.

Артикул: MM06AB ,   Время доставки: 7-14 дней
438,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
90,00 €
