SLP 32RZ

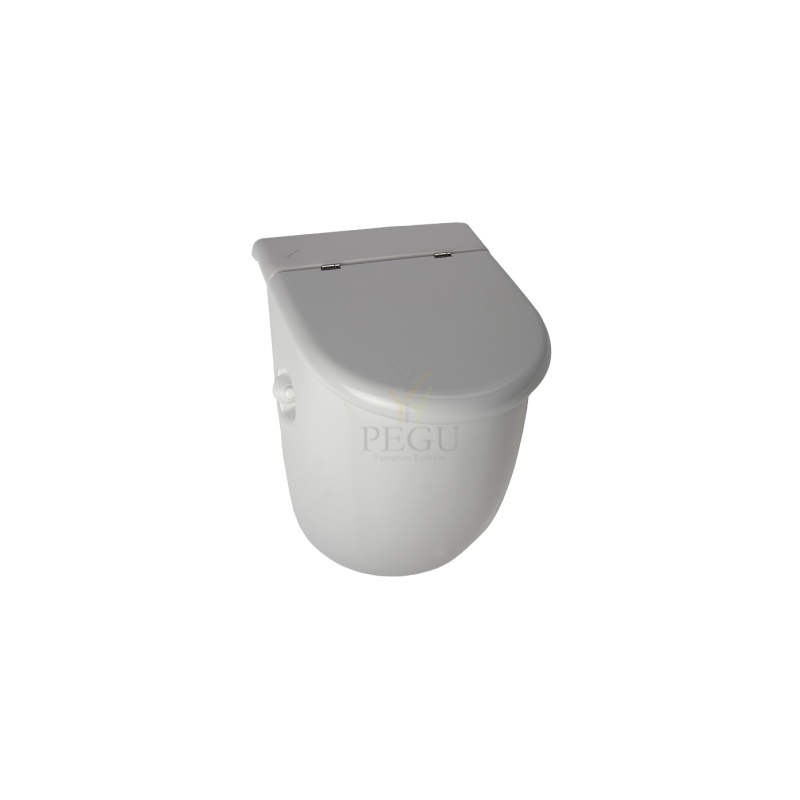

Urinal Arq with cover with a radar flushing unit and integrated power supply, 230 V AC

Characteristics

easy installation
whole flushing unit is placed behind the urinal
system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
adjustable flushing time 0,5 - 15,5 s
parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
automatic flushing after each 6 hours non-use
possibility to regulate a water flow by the angle valve
radar flushing unit recharges a water to the siphon after each flushing

Order number	01325
Code	SLP 32RZ

Supply specification

SLP 32RZ - Supply No. 01325 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and angle valve, inlet fitting with a rubber sealing, power supply

Technical information

Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing

922,45 € (-5%) 971,00 €

Ножницы для резки труб REMS ROS P 63 S

Артикул: REMS-291290 R , Время доставки: 7-14 дней

Torukäärid kiirtagastusega torudele Ø ≤ 63 mm, 2".

116,00 € (-25%) 155,00 €

DAN DRYER Рукосушитель 274 Н/Р сталь, MAXI DESIGN

Артикул: DAN274 , Время доставки: 14-21 день

PRODUCT DESCRIPTION

• Drying time of approx. 20-25 seconds.

• Standard in white enamelled steel, bright and satin chrome.

• Also available in all RAL-colours and coated with different prints.

• Powerful commutator motor with carbon brushes.

• A very hygienic and maintenance-free machine.

• Strong and shock-proof housing preventing vandalism.

• 5-year warranty (carbon brushes exempted).

SPECIFICATIONS
Product number:	274 / EAN no. 5-709818-002743
Technical data:	Hand dryer with housing in 2 mm satin chrome steel plate. Fixed, bright chrome air outlet nozzle in zinc. IR sensor and electronic timer. Drying cycle 20-25 sec. IP21, 230 V, 50/60 Hz, 2400 W, Class I (earthing required). 70dBA.
Dimensions	H: 247 mm, W: 281 mm, D: 212 mm
Net Weight:	7.4 kg
