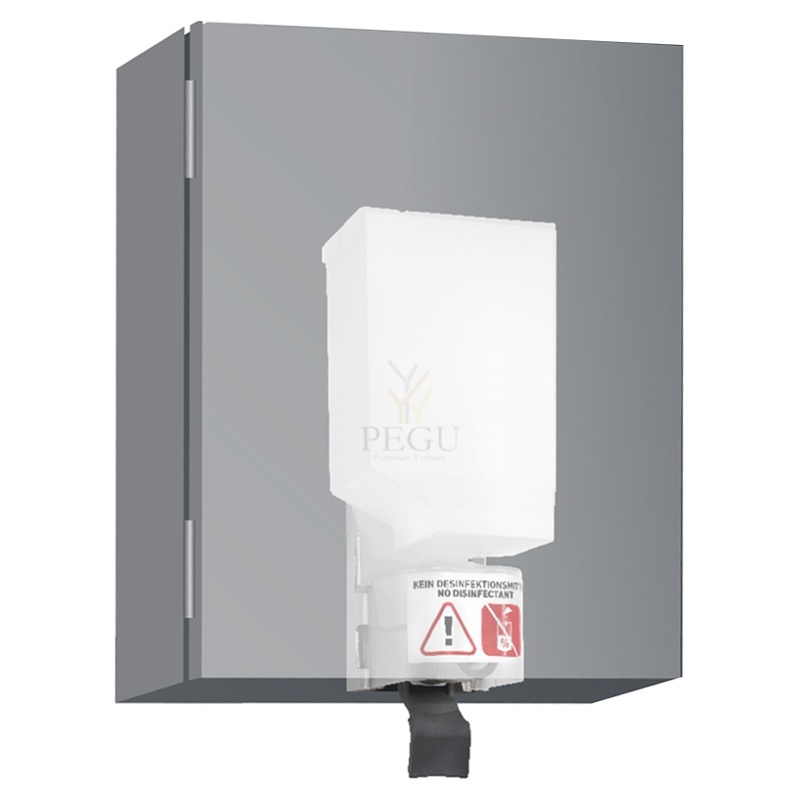

SOAP DISPENSER FOR MOUNTING IN CABINET 950(500)ML BOTTLE WP 173
87 x 289 (251) x 130 mm
Choose product variant
Liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
For mounting in cabinet on site.
One-hand operated and non-drip soap pump.
Designed for standard 500 ml or 950 ml disposable bottles of liquid soap or hand lotion. Refillable from the top.
Also refillable with large container using the plug-in tank as an option.
Wear parts can be replaced as modules.
Mounting: With two screws through key holes and one optional anti-theft hole in the back wall.
Delivery includes fixing material, self-adhesive information label „Soap“ and first fill with soap.
Weight (in kg): 2,7
AVAILABLE SURFACES
ORDER NUMBERS
satin finished (standard)
727173
Suggested text for specifications:
Liquid soap dispenser in stainless steel (AISI 316L) for mounting in cabinet. One-hand operated and non-drip soap pump. Designed for standard 500 ml or 950 ml disposable bottles of liquid soap or hand lotion. Refillable from the top. Delivery includes fixing material, self-adhesive information label Soap and first fill with soap.

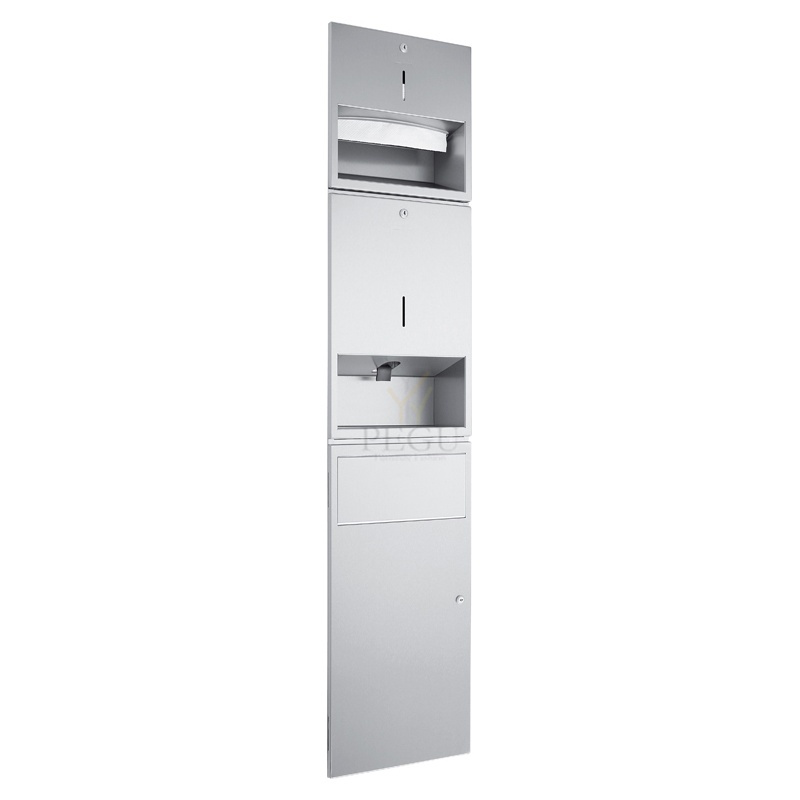

COMBINATION PAPER TOWEL- AND SOAP DISPENSER 950ML BOTTLE AND WASTE BIN WP 500
298 x 1348 x 120 mm ca. 250 paper towels / 950 ml soap bottle / 11 l
Combination consisting of a liquid soap dispenser, a paper towel dispenser and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Further available surfaces: see below.
Liquid soap dispenser with one-hand operated and non-drip soap pump.
Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
Also refillable with large container using the plug-in tank as an option.
Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
Designed for approx. 250 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
Inspection slots to indicate fill level.
Accessible for refilling through lockable front flap with fall protection.
Waste bin equipped with removable mesh basket. Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
Wear parts and front panels can be replaced as modules.
Installation dimensions: 300 x 1350 x 110 mm
Mounting: With eight screws in wall opening through fixing holes in the side walls.
Delivery includes fixing material, first fill with soap and one pack of paper towels.

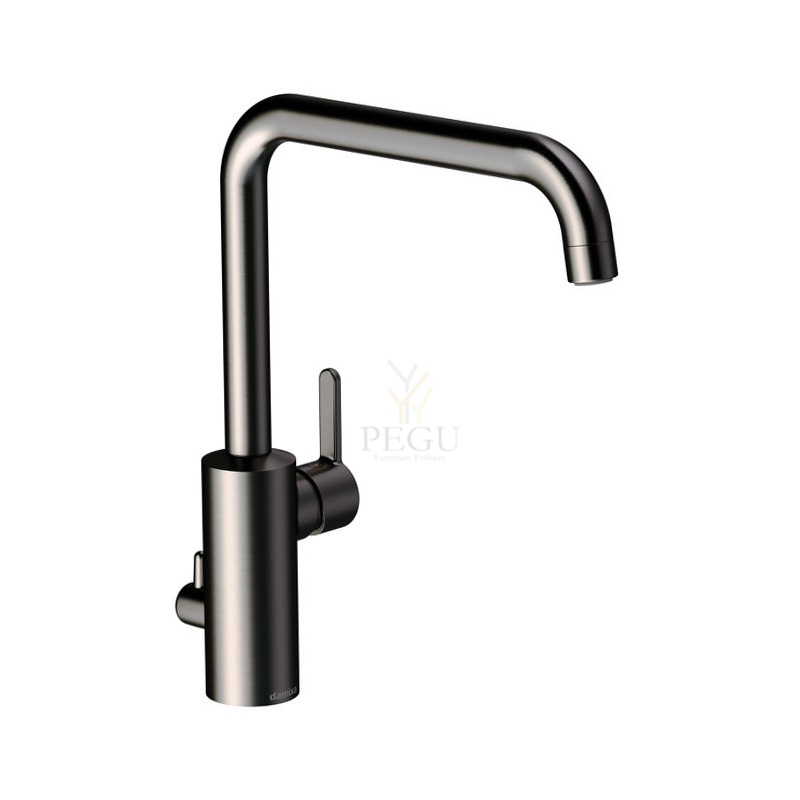

With its pure, inviting design Silhouet fits beautifully in the kitchens and bathrooms of today as well as tomorrow. For the bathroom sink, Silhouet is available in three different heights to ensure you can also use it with a tall, tabletop mounted vessel sink. The stylish Silhouet shower system features a showerhead that due to its ultra slim design appears to hover for an even more sophisticated look. Silhouet is the essence of timeless Scandinavian design and outstanding Damixa quality.
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Interchangeable head and non-turnable push-button Non-removable, wear-proof coloured marker Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with :
Instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
Töörõhk: 1 kuni 5 baari Voog: 3 l / min integreeritud vooluregulaatoriga Kvaliteetne katlakivivastane aeraator Veevarraste vastane disain Voolu aeg: 7 sekundit reguleeritav PRESTOCOMiga: http://www.presto.fr/whatabout/prestocom/ Eakate ja puuetega inimeste jaoks mõeldud elektrooniline päästikuteta päästik Hüdrauliline toiteallikas: G 3/8 "(12x17) Toide: Integreeritud 9V liitiumaku Materjali ja värvi viimistlus: Messingist kroomitud viimistlus Termiline takistus: Vastupidav temperatuurile 75 ° C 30-minutiliste termiliste löökide korral
Turvalisus: Temperatuuri piiramise süsteem ühes asendis, et vältida põletusohtu. Solenoidklapi automaatne väljalülitus elektrikatkestuse või anduri vea korral.
Tühjendus: 30 sekundit iga 24 tunni järel pärast viimast kasutamist (reguleeritav voolu aeg ja sagedus) Aku tühjenemise hoiatus (vilkuv LED-tuli)
Tarnitakse koos: 1 messingist kinnitusmutter 1 tihend ja 1 seib 2 PEX-voolikut pöörlevate mutrite ja NF-tagasilöögiklappidega 2 MM G 3/8 "(12x17) sulgeventiilid 2 Filtri tihendid 1 isekleepuv kleebis Kasutusjuhend
Standardid ja kinnitused: Vormitud kroomitud kere vastavalt standardile EN 12540 Messing vastavalt NF EN1982, EN12164, EN12165, UBA nimekirjale vastav 200-tunnine neutraalse soola pihustuskindel (NSS) vastavalt NF ISO 9227 ACS
PRESTO SAFE
Ref: 68077 - Deck-mounted mixer sensor tap - 3l/min
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow regulator High quality anti-limescale aerator Anti-water-hammering design
> Flow time:
7 sec adjustable with PRESTOCOM : http://www.presto.fr/whatabout/prestocom/ Electronic effortless trigger suitable for elderly and disabled people
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
Integrated 9V lithium battery
> Material and colour finish :
Brass body Chrome finishing
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security :
One position temperature limiting system to avoid any risk of scalding Automatic shutdown of solenoid valve in case of power failure or sensor error Duty flush 30 sec each 24h after last use (adjustable flow time and frequency) Low battery alert (blinking led light)
> Delivered with :
1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual
> Standards & approvals :
Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165, UBA list compliant 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227 ACS
