Ref: 70818 - Column –deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use Spring flexibility Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders) Reinforced body / column interface Robust mixing handle - possibility of installing it laterally Product design Adjustable wall support PU sheath shower hose to avoid bacterial niches and facilitate cleaning Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Dimensions:
Maximum fixing height: 632 mm
> Model:
Single-lever mixer with ceramic cartridge Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass Injected metal hook Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket 1 filter 2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum NF check valve on the hand shower
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540

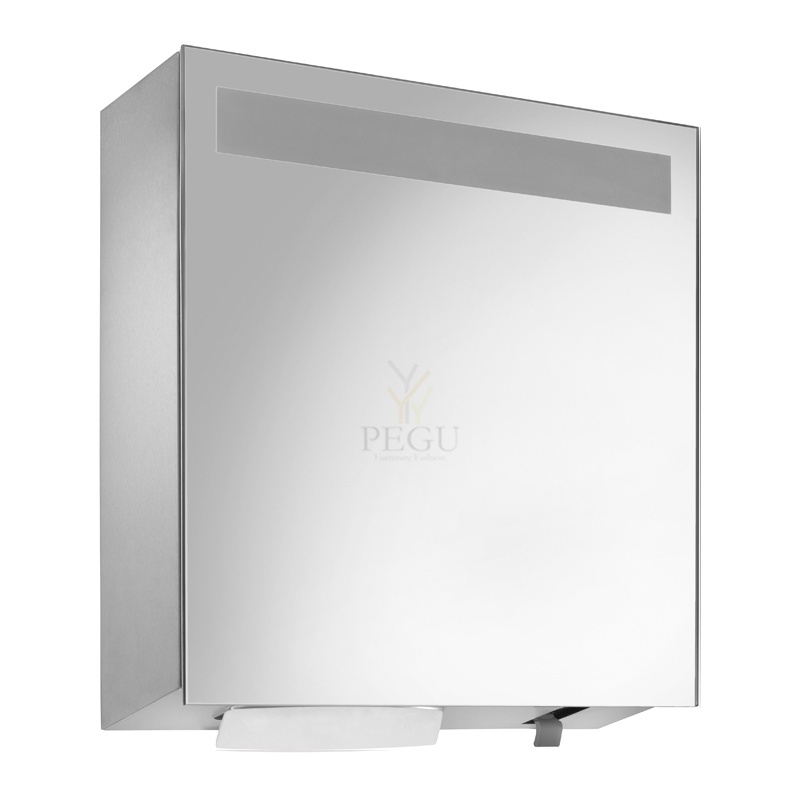

MIRROR CUPBOARD WITH BUILT-IN SOAP- AND PAPER TOWELS DISPENSER WP 600
450 x 450 x 130 mm 950 ml soap bottle / ca. 500 paper towels
Choose product variant
Mirror cupboard with integrated liquid soap dispenser and paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
All-stainless steel housing; visible surfaces satin finished and brushed.
Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set.
Liquid soap dispenser with one-hand operated and non-drip soap pump.
Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
Also refillable with large container using the plug-in tank as an option.
Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
Accessible for refilling through lockable door.
Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
Wear parts can be replaced as modules.
Lighting set available as an option.
Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
Delivery includes fixing material, first fill with soap and one pack of paper towels.
Weight (in kg): 11,5
AVAILABLE SURFACES
ORDER NUMBERS
satin finished (standard)
727850
Suggested text for specifications:
Mirror cupboard with integrated liquid soap dispenser and paper towel dispenser in stainless steel (AISI 304) for surface mounting. All-stainless steel housing; visible surfaces satin finished and brushed. Crystal mirror with all round 2 mm chamfer and frosted window for optional lighting set. Liquid soap dispenser with one-hand operated and non-drip soap pump. Designed for standard 950 ml disposable bottles of liquid soap or hand lotion. Paper towel dispenser with deep-drawn paper removal opening, filling quantity approx. 500 paper towels. Accessible for refilling through lockable door. Keyed alike cylinder lock in corrosion-resistant zinc die-casting. Delivery includes fixing material, first fill with soap and one pack of paper towels.
