Ventiilide 1” komplekt koonusliitmikuga, mis sobivad kasutamiseks Süsteemi KAN-therm kollektoritega, profiiliga 1”, lisatihenditeta. Kasutatakse juhul, kui kollektorit toidetakse küljelt.
Ventiilide 1” komplekt koonusliitmikuga koos põlvedega, mis sobivad kasutamiseks Süsteemi KAN-therm kollektoritega, profiiliga 1”, lisatihenditeta.
Kasutatakse juhul, kui kollektori toidetakse põrandalt.
Eurokoonus 16 mm x 3/4"
Eurokoonus 20 mm x 3/4"
Art. 6300.E7 - SELF-SEAL THREAD MANIFOLD WITHHEAD SCREWS AND DESTINATIONS
GF Kollektor suluga 2 ne eurok. 1"-2x3/4"
GF 6300E7N1005V2A
Art. 6300.E7 - SELF-SEAL THREAD MANIFOLD WITHHEAD SCREWS AND DESTINATIONS
GF Kollektor suluga 3 ne eurok. 1"-3x3/4"
GF 6300E7N1005V3A
Art. 6300.E7 - SELF-SEAL THREAD MANIFOLD WITHHEAD SCREWS AND DESTINATIONS
GF Kollektor suluga 4 ne eurok. 1"-4x3/4"
GF 6300E7N1005V4A

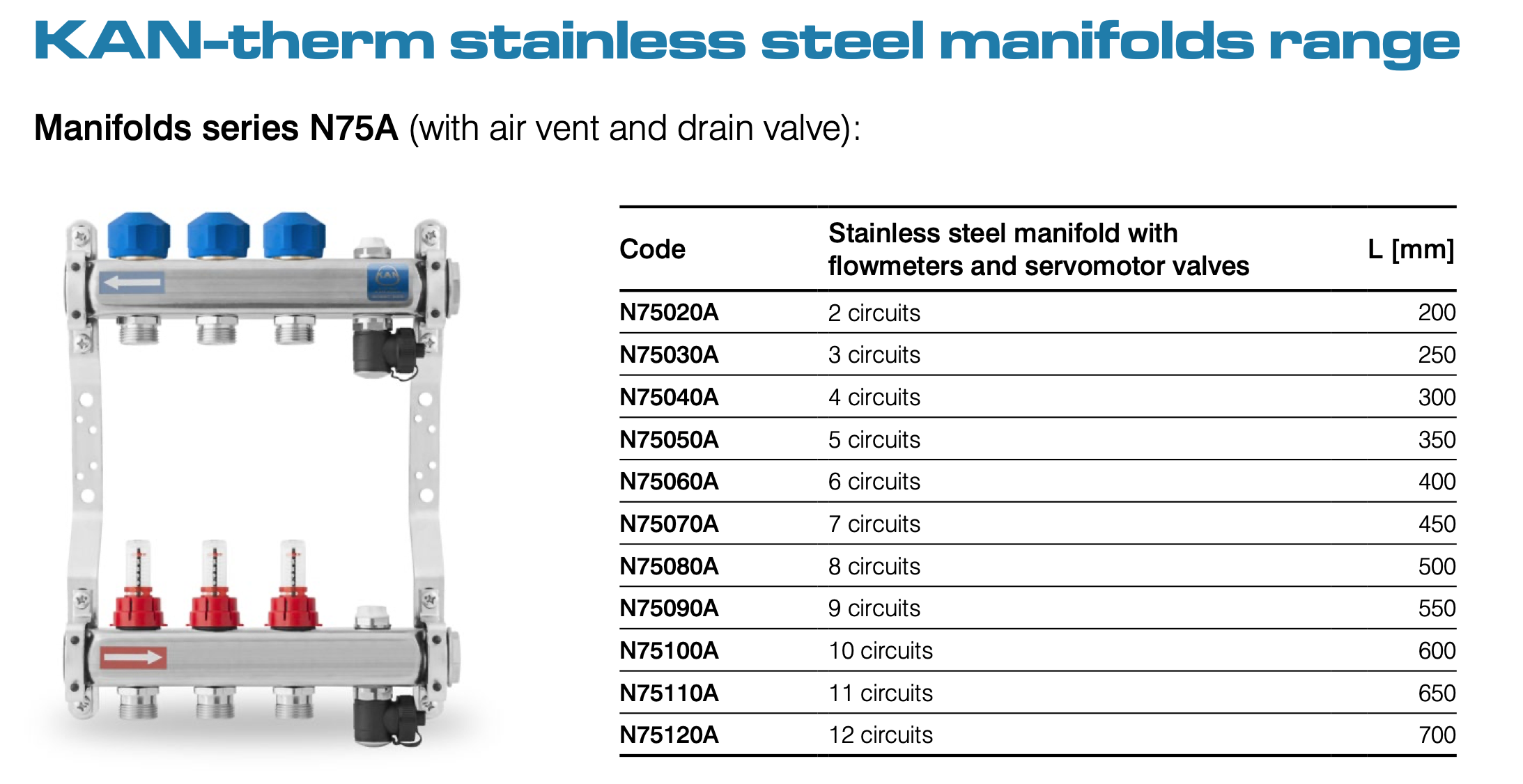

Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 10-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.

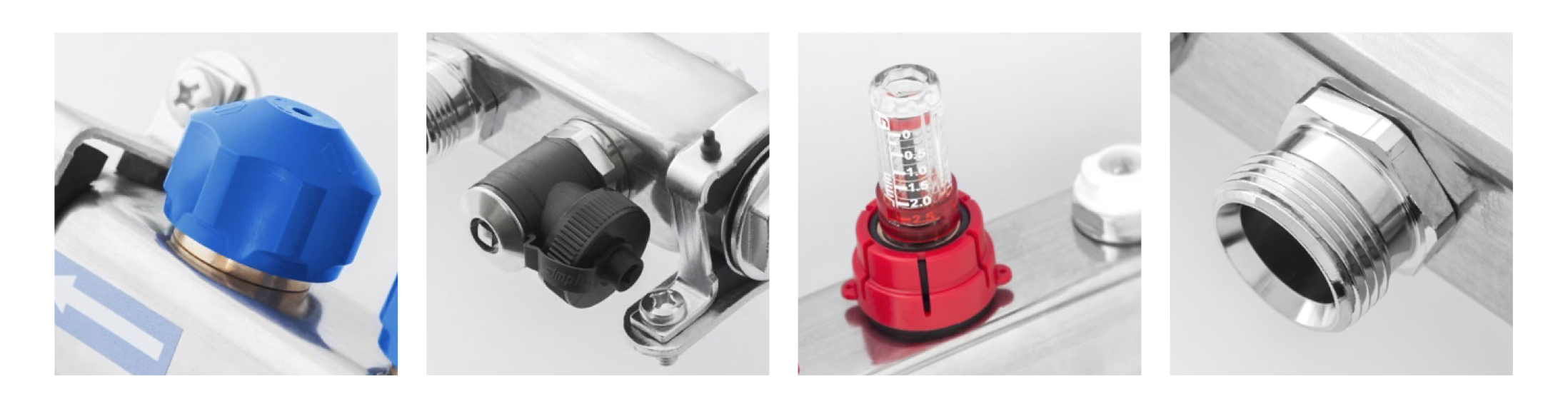

Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 11-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 12-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 2-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 3-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 4-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 5-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 6-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 7-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 8-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Porandakütte kollektor vooluhulga mootja ja ajamventiilidega
R/V kollektor N75A 9-ne
1 1/4", M30 x 1.5, vooluhulga mootjaga
Kollektorid sobituvad surveliitmikega G3⁄4”.
Kollektori väljundite vahe tsentritest 50 mm Kasuta ajameid või ajamiadaptereid M30×1.5.
Pealevool - alumine osa. Tagasivool - ülemine osa.
Kõige olulisemad omadused:
The most important features:
-
1 1⁄4” stainless steel profile.
-
1” female thread connection.
-
3⁄4” nipples with 50 mm spacing for easy and reliable
pipe connections via Eurocone adapters.
-
M30x1,5 servomotor valves.
-
Resistant to glycol mixtures up to 50%.
-
Versions with or without air vent and drain valve.
-
Inlet and outlet marking labels for trouble- free installation.
-
Manifold brackets with vibration damping inserts.
-
Up to 6 bar and 70oC.
-
Over 1,5 times bigger allowable flow*.
* compared to typical 1” profile brass manifold with flowmeters
Plastkinnitus ühene 12-20/12-26 Plastkinnitus kahele 12-20/12-26
Plastkinnitus ühene 12-20/12-26Plastkinnitus ühene 12-20/12-26
