Tabletop soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
Solid stainless steel body; visible surfaces satin finished. Further available surfaces: see below.
Design height: 128 mm Outlet height: 57 mm Projection: 75 mm
Non-drip soap pump with 500 ml soap bottle in plastics and pressure valve in stainless steel.
Designed for standard liquid soaps.
Refillable from above through detachable top part with bayonet lock.
Wear parts can be replaced as modules.
Installation dimensions: Ø 21-25 mm, surface thickness max. 40 mm.
Mounting: With one counternut.
Delivery includes fixing material.
Weight (in kg): 0,9
AVAILABLE SURFACES
ORDER NUMBERS
satin finished (standard)
925210
highly polished
931210
Suggested text for specifications:
Tabletop soap dispenser in stainless steel (AISI 316L) for counter mounting. Solid stainless steel body; visible surfaces satin finished. Non-drip soap pump with 500 ml soap bottle in plastics and pressure valve in stainless steel. Designed for standard liquid soaps. Refillable from above through detachable top part with bayonet lock. Delivery includes fixing material.
Dimensions: (with container) 60 x 420 x 125 mm Design height: 128 mm Outlet height: 57 mm Projection: 75 mm

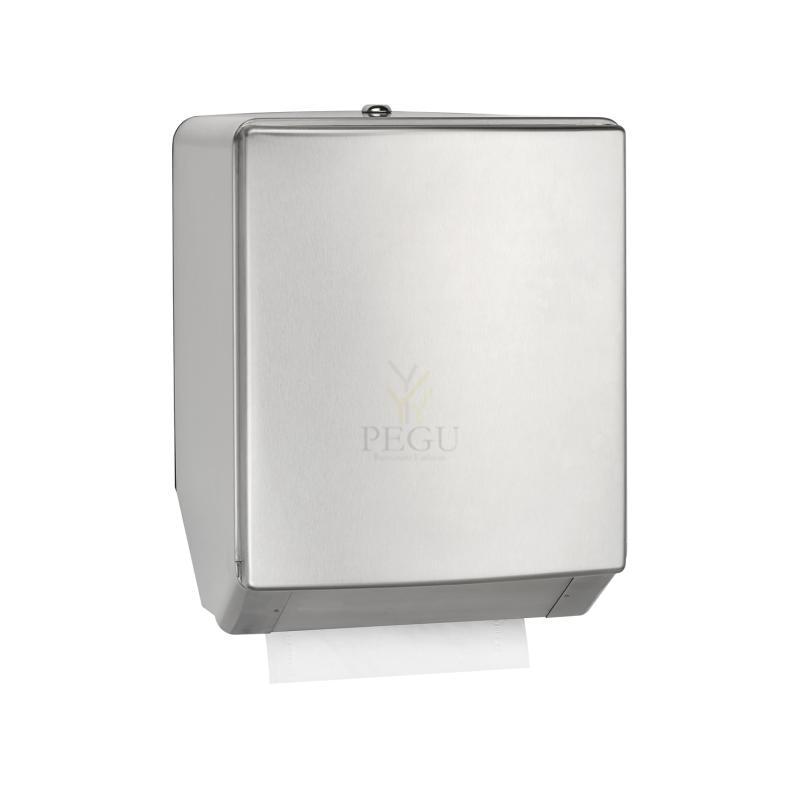

Arc Front Surface Mounted Auto-Cut Roll Paper Towel Dispenser shall hold and dispense one 205mm wide, 170 mm diameter, non-perforated paper towel rolls.
Touch-Free pull towel mechanism dispenses one 280 mm length of towel paper per pull. User only touches the paper.
Structural assembly of all components shall be of welded construction.
Compact, robust and vandal-proof design.
Suitable for collectivities. It can be installed in hospitals, elderly centers, offices, production centers kitchens and catering, etc.
Components & materials
DT0208ACS: Stainless steel satin finish, 0.8
mm thick.
UNIT FRAME AND CABINET: made in stainless steel AISI 304, 0.8 mm thick.
COVER: made in stainless steel AISI 304, 0.8 mm thick. It is attached to the back plate with two pivots and shall be held closed with a tumbler lock keyed alike to other washroom equipment. Locking door prevents unauthorized access or removal.
OPERATION LABEL: permanently affixed to inside rear panel to illustrate correct paper loading,
