Delabie бесконтактный электронный смеситель настенный L130mm TEMPOMATIC MIX 4 6V

Артикул: DE-493416
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
659,00 €
Kuumakse alates: 56,00 €
Кол-во: - +
   - или -

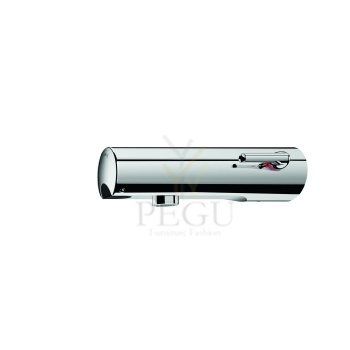

TEMPOMATIC MIX 4 electronic mixer
Ref. 493416

Wall-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated metal body L. 130mm.
Cap fixed in place by 2 concealed screws.
F3/8" stopcocks.
For cross wall installation.
Anti-blocking security.
Suitable for people with reduced mobility.



TECHNICAL FEATURES

TEMPOMATIC MIX 4 electronic mixer
Ref. 493416

Supply 6V batteries
Connector F3/8"
Technology Electronic
Spout length 130mm
Flow rate 3 lpm

Видео



Файлы

Схожие продукты

Pissuaarikraan 1/2-1/2" 6 sek

Isesulguva mehhanismiga, kroom

Артикул: P31707 ,   Время доставки: 7 päeva
111,15 € (5%)
117,00 €

Damixa Kudos Mini душевой комплект, хром LM

Душевой комплект Kudos Mini в составе: ручной душ (3 функции), система очистки рабклин, душевая штанга 650 мм, гибкий шланг 1500 мм, мыльница.

Артикул: D7650300 ,   Время доставки: 3-7 дней
78,75 € (25%)
105,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €
