Delabie KOMPACT loputuskastiga WC+valamu paremal põranda antivandaalne R/V teras AISI304 162700 Zoom

Delabie KOMPACT WC с бачком + раковина справа напольный антивандальный Н/Р сталь AISI304 162700

Артикул: DE-162700
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
4912,23 €
Kuumakse alates: 417,54 €
Кол-во: - +

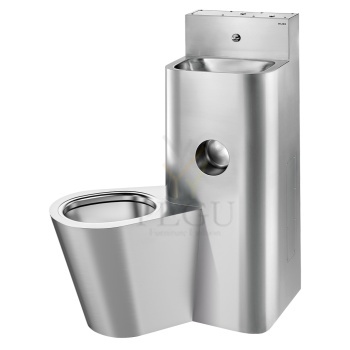

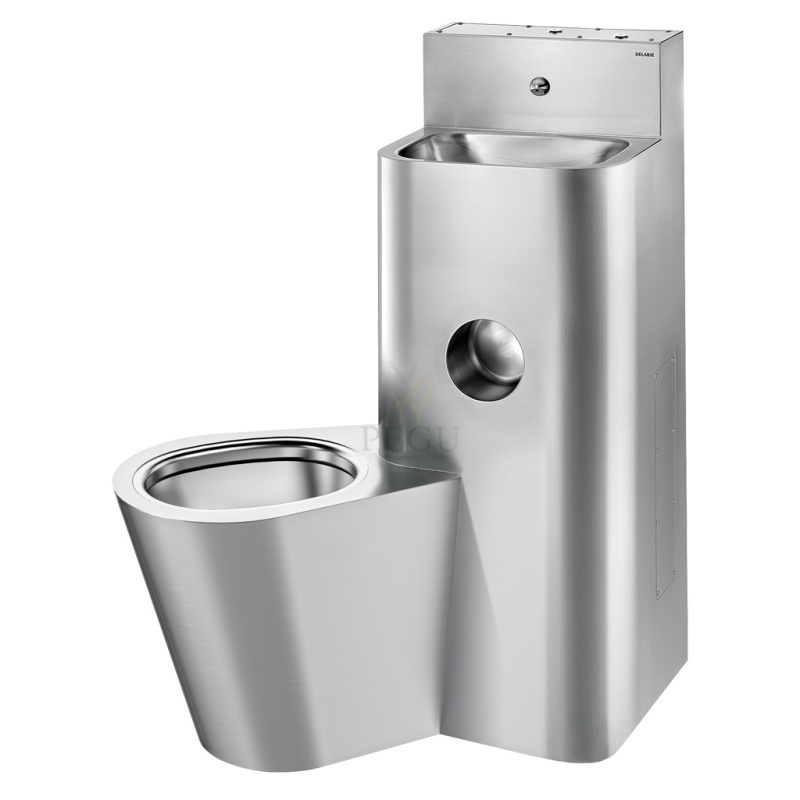

Delabie KOMPACT WC с бачком + раковина справа напольный антивандальный Н/Р сталь AISI304 162700

KOMPACT washbasin and floor-standing WC combination
Ref. 162700

Washbasin combination unit with cistern, floor-standing WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 162700

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish Polished satin 304 stainless steel

Файлы

Схожие продукты

Delabie WC INVA Monobloco 700 Н/Р сталь 110790

DESCRIPTION

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Height 895mm
Length 700mm
Width 370mm
Thickness 1.5mm
Finish Polished satin 304 stainless steel


Артикул: DE-110790 ,   Время доставки: 7 недель ,   Viimistlus:
2844,89 €

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Артикул: AZP-AUM 026.TV INV ,   Время доставки: 3-4 недели ,   Viimistlus:
4370,49 €

Раковина HEMI d310mm AISI304 матовая Нержавеющая сталь Delabie Раковина Genou, с коленным краном + и носиком 180330

HEMI inset round washbasin Ø 310mm - Ref. 120470

Round basin for recessed installation from above or below.

Basin internal diameter: 310mm.

Cut-out diameter: 330mm for installation from above, 310mm for installation from below.

Bacteriostatic 304 stainless steel.

Polished satin finish.

Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.

Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.

CE marked.

Complies with European standard EN 14688. Weight: 1.5kg.

[Formerly ref: 0213470201]

Артикул: DE-120470 ,   Время доставки: 14-21 день ,   Viimistlus:
174,82 €

Delabie коллективная раковина DUPLO RP 1200x500mm с отверстием под смеситель d35mm нержавеющая сталь сатин 121390

DUPLO RP wall-mounted multiple washbasin
Ref. 121390

Wall-mounted double washbasin, 1,200x500mm.
With a splashbaack to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Rounded edges prevent injury.
With central tap hole, Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 15kg.

Артикул: DE-121390 ,   Время доставки: 14-21 день ,   Viimistlus:
1593,70 €

Нержавеющая сталь WC настенный Delabie 700 S inva 110710

Wall-hung 700 S WC pan for disabled people
Ref. 110710

Wall-hung WC pan, 360 x 350 x 700mm.
Available with 700mm elongated pan for improved comfort for peoplewith reduced mobility (700 S).
Compatible with all standard frame systems available on the market.Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded WC pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14.5kg.

Артикул: DE-110710 ,   Время доставки: 14-21 день ,   Viimistlus:
1828,49 €
