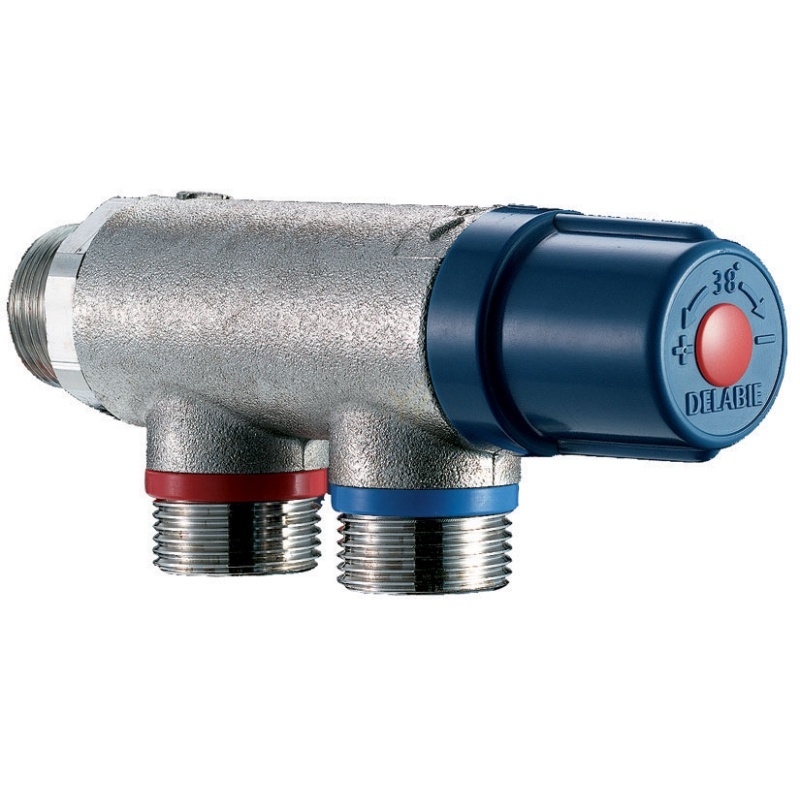

Delabie PREMIX COMPACT термостатический вентиль никель M3/4" 30 - 60°C

Артикул: DE-733020
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
152,50 €
Kuumakse alates: 13,15 €
Кол-во: - +
   - или -

PREMIX COMPACT
Ref. 733020

PREMIX COMPACT thermostatic mixing valve for mixed water distribution from 30 - 60°C:
For 2 to 10 sanitary points-of-use (depending on the flow rate).
Anti-scalding safety: immediate shut-off if cold or hot water supply fails.
Adjustable temperature from 30 - 60°C, can be blocked by the installer.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 5 lpm.
Thermal shocks are possible.

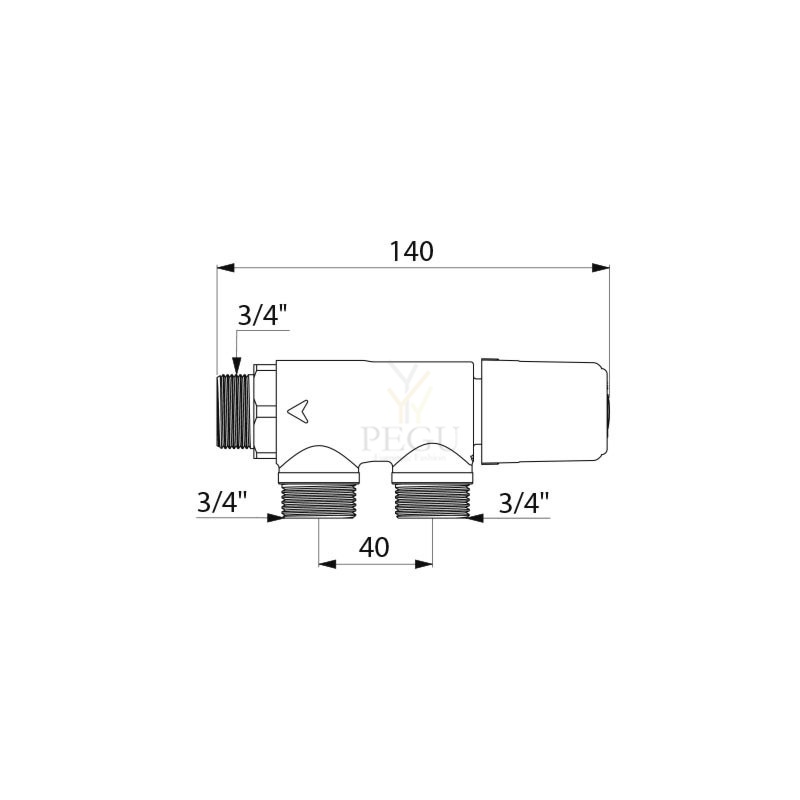

M3/4".
Nickel-plated brass with blue control cap.
