Душевой комплект экономичный самовыключающийся встраеваемый Delabie TEMPOMIX 794BOX1+794219 30sek
Коды и спецификации доступны по запросу для проектов и точного подбора.
Мы рекомендуем делиться ссылкой на товар, а не только кодом — это исключает ошибки.
Обратитесь напрямую: info@pegu.ee
Единица: комплект
Время доставки: 14 -21 день
Продавец: PEGU OÜ
Новый товар 790219+790BOX
DESCRIPTION
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219
Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.

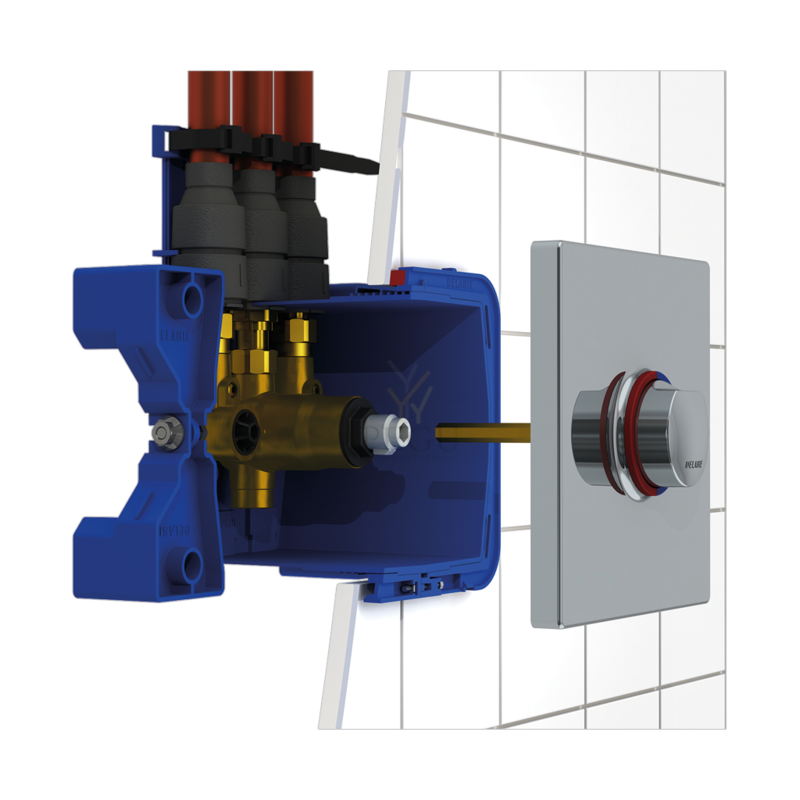

Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.

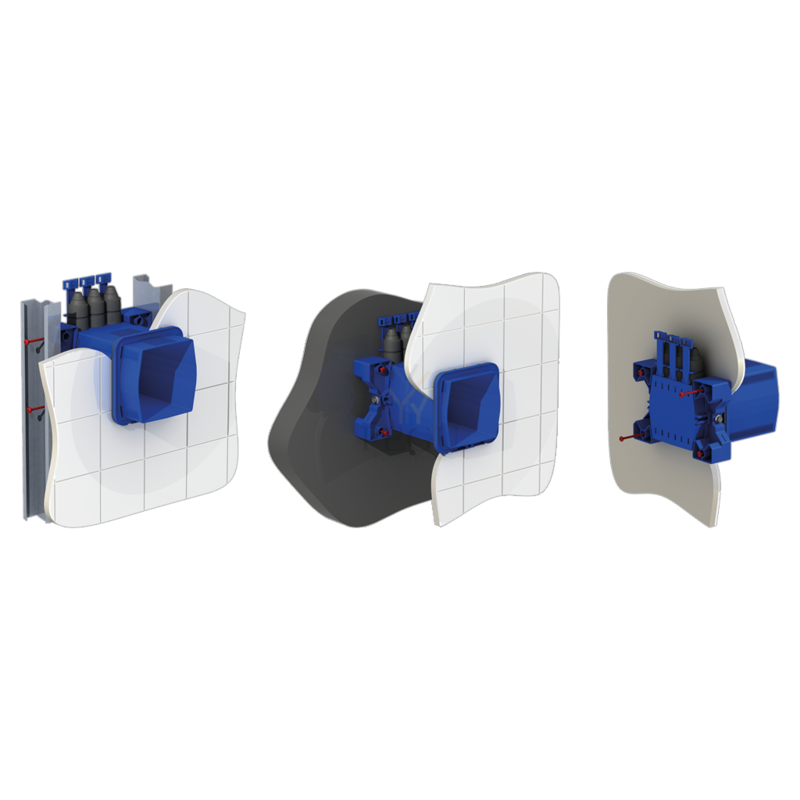

- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.

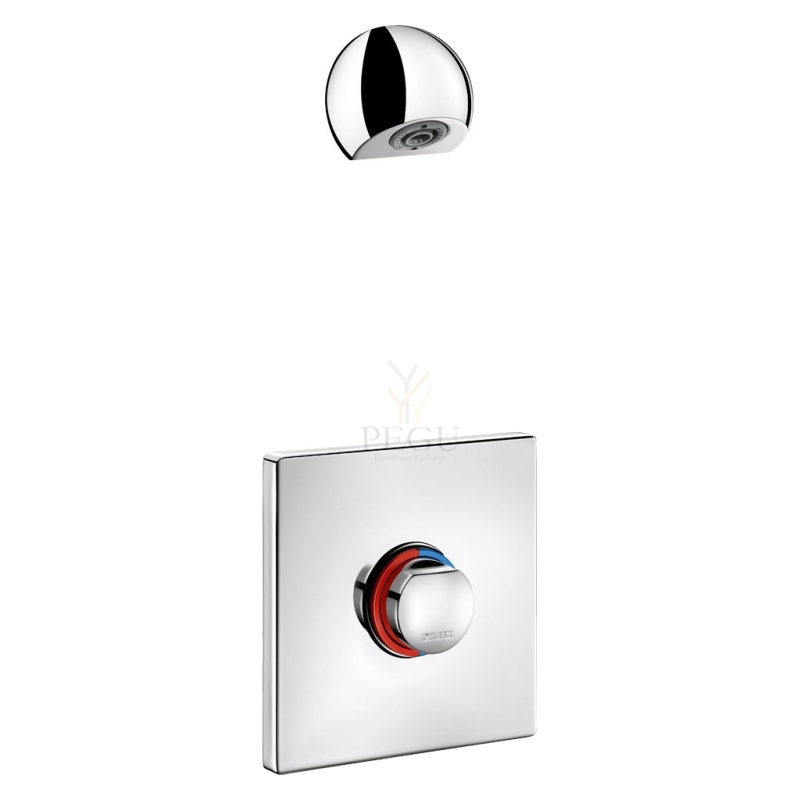

Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Файлы

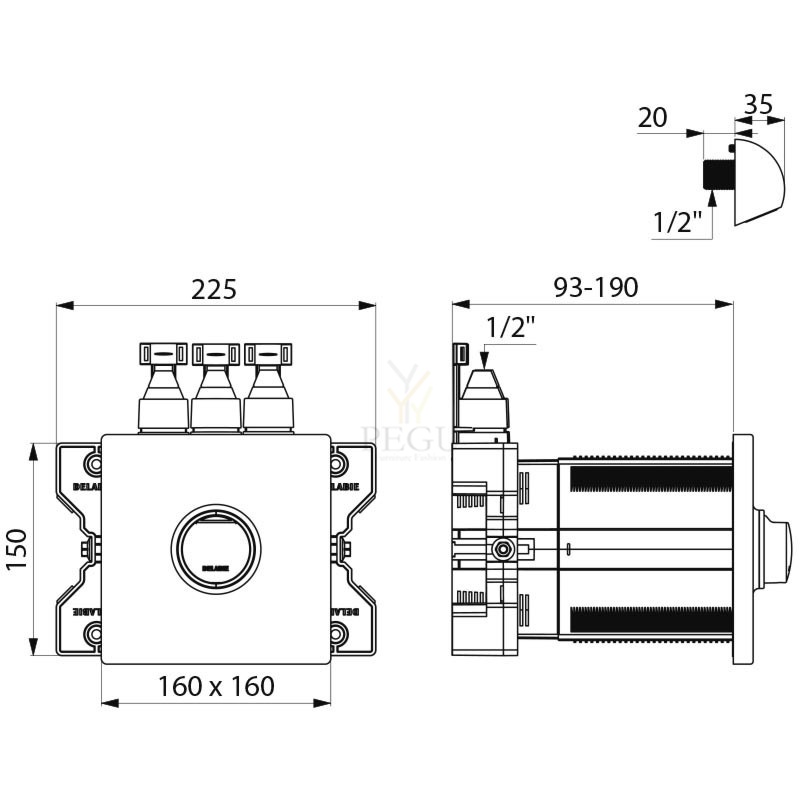

TECHNICAL FEATURES
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219
| Connector | 1/2" |
|---|---|
| Technology | Time flow |
| Height | 160mm |
| Depth | 93-190mm |
| Width | 160mm |
| Flow rate | 6 lpm |
1/2" вход шланга можно подсоединить
к любому смесителю или термостату с 1/2" выходом
1/2" väliskeere
Vajutava nupuga dušši segisti
ALPA
Presto
kroom-must nupp
30 sek. töötsükkel 3 bar
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bars - 4-position setting Anti water-hammer system
> Flow time: 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Safety: With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 1 base gasket 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 Fixing bracket > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
