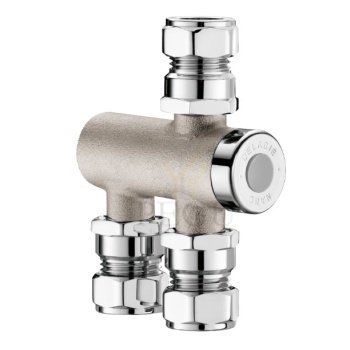

jpg_732115_1.jpg Zoom

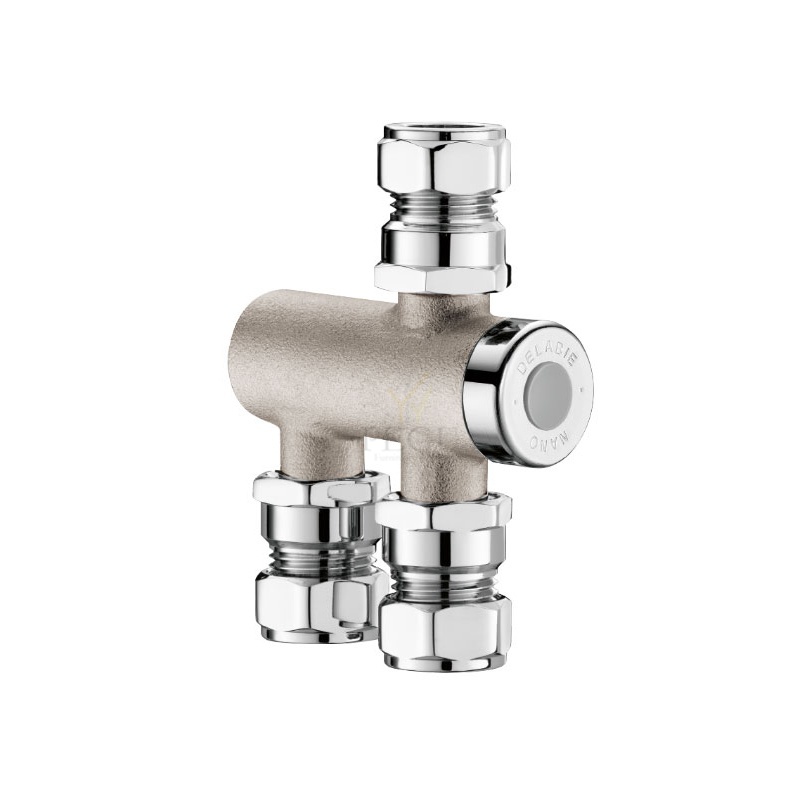

Delabie PREMIX NANO термостатический вентиль d15mm никель 34°C to 60°C

Артикул: DE-732115
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
165,00 €
Kuumakse alates: 14,03 €
Кол-во: - +
   - или -

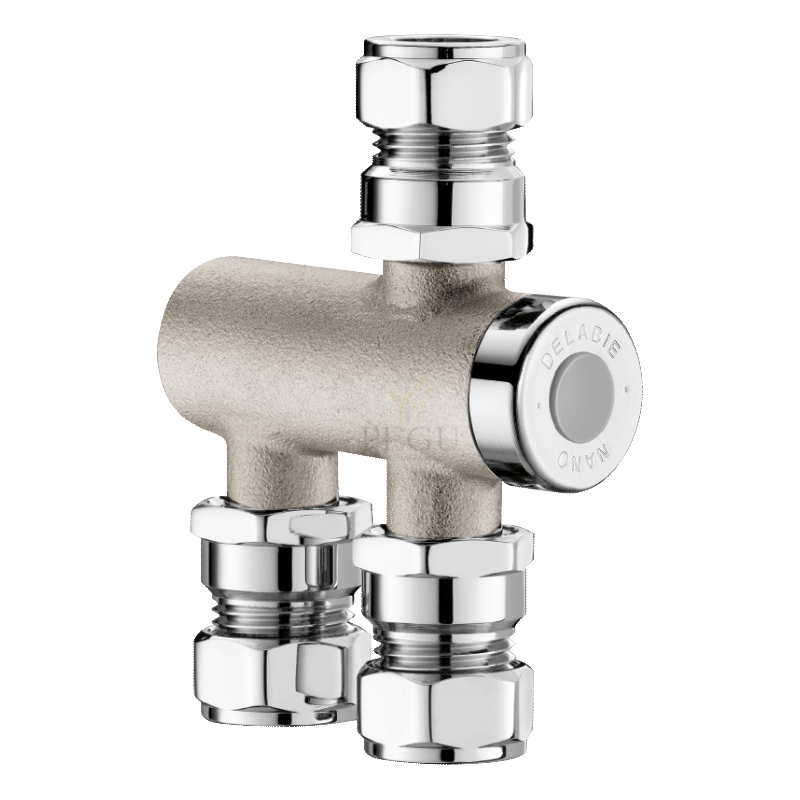

PREMIX NANO thermostatic mixing valve
Ref. 732115

Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.

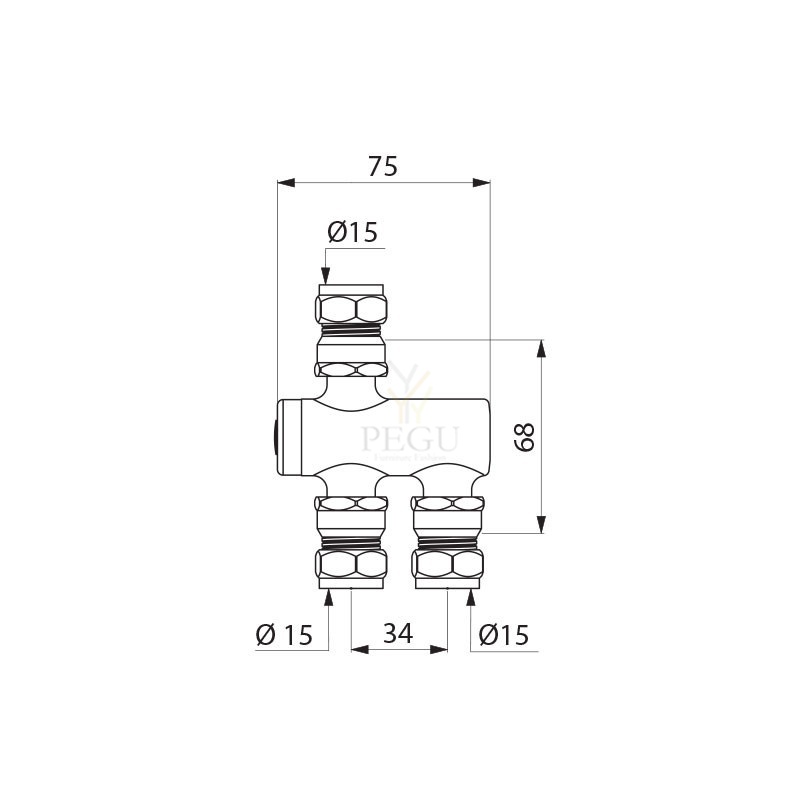

Nickel-plated brass body M1/2'' inlets and Ø 15mm conical outlets.
