Peidetud seinasisene valamule topeltjuhtkraan 15sek Presto 30212, eelsegatud+külm vesi Zoom

Антивандальный кран для раковины в стену 15sek Presto 30212, смешанная и холодная вода

Артикул: P30212
Бренд:
Единица: комплект
Время доставки: 14-21 день
Цена:
780,59 €
Kuumakse alates: 66,35 €
Кол-во: - +

Антивандальный кран для раковины в стену 15sek Presto 30212, смешанная и холодная вода

Peidetud seinasisene valamule 15 sek topeltjuhtkraan Presto 30212, eelsegatud+külm vesi

> Töörõhk:
1 kuni 5 baari
> Voog:
3 l/min 3 baari juures – 4-asendiline vooluhulga reguleerimisseade Veetõkkevastane disain
> Vooluaeg:
15 sekundit (± 5 sek.)
> Hüdraulikavarustus:
M G 1/2" (15x21) mõlema kraani jaoks. Külm – kuum – eelsegatud vesi
> Soojustakistus:
Vastupidav temperatuurile 75°C 30-minutistele soojuslöökidele
> Turvalisus:
Patenteeritud blokeerimisvastane "S" süsteem, et vältida vee pidevat voolamist Vahetatavad pead ja pöörlemisvastased surunupud, mis takistavad enneaegset kulumist Mitteeemaldatav kulumiskindel värviline marker
> Tarnitakse koos:
6 vandaalikindlat kruvi esiplaadi kinnitamiseks Kasutusjuhend
> Standardid ja kinnitused:
Messingist korpus vastavalt standarditele EN 1982, EN 12164, EN 12156
Vormitud kroomitud korpus vastavalt standardile EN 12540
200-tunnine neutraalne soolapihustuskindel (NSS) vastavalt standardile ISO 9227

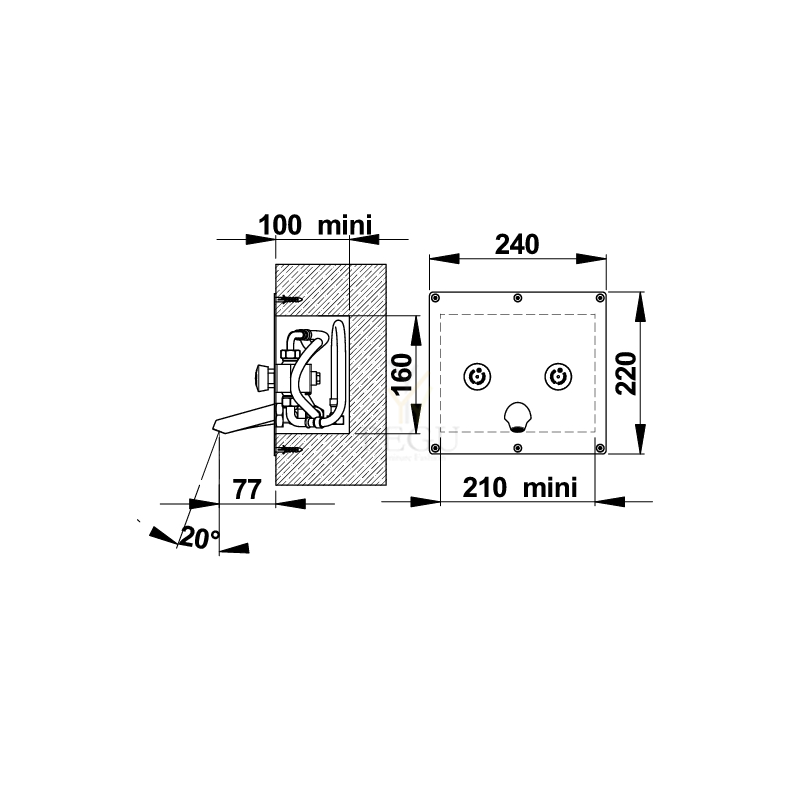

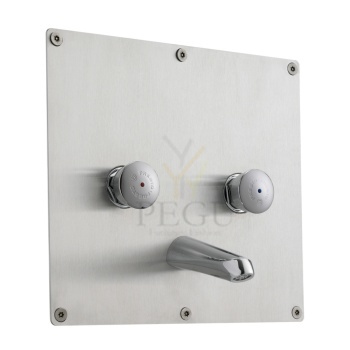

Concealed dual control tap for wash basin

Ref: 30212 - PRESTO Dual control tap, anti-blocking

> Working pressure :

1 to 5 bar

> Flow :

3 l/min at 3 bar - 4-positions flow adjustment device Anti-water-hammering design

> Flow time :

15 seconds (± 5 sec.)

> Hydraulic supply :

M G 1/2" (15x21) for each of the 2 taps. Cold – hot – premixed water

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously Interchangeable heads and anti-rotation push-buttons preventing premature wear off Non-removable, wear-proof coloured marker

> Delivered with :

6 vandal proof screws for fixing the front plate Instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12156
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Схожие продукты

Vajutava nupuga segisti

Presto

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Артикул: P68032 ,   Время доставки: 7 дней ,   Viimistlus:
397,41 €
Артикул: P63210 ,   Время доставки: 7-14 дней ,   Viimistlus:
199,21 €

Töötsükkel 7 sek

Артикул: P68401 ,   Время доставки: 14 дней ,   Viimistlus:
328,30 €

Peitsegisti 30 sek töötsükkel

Артикул: P35941 ,   Время доставки: 7-14 дней ,   Viimistlus: Kroom
667,77 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €
