AMO-01.jpg Zoom

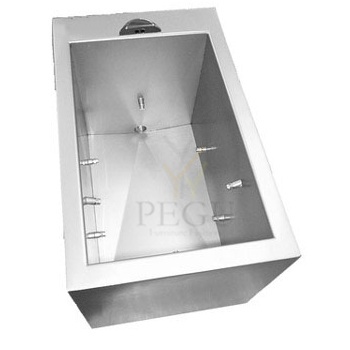

Автоматическая мойка для сапог с дюзами, 12V, 50Hz

Артикул: AZP-AMO 01
Бренд:
Единица: шт
Время доставки: 3-5 недель
Цена:
2405,00 €
Kuumakse alates: 204,43 €
Кол-во: - +
   - или -

Автоматическая мойка для сапог с дюзами, 12V, 50Hz

automatic washing system for wellingtons with jets - 12V, 50Hz


Radius of sensor 0 – 0,4 m
Water inlet G 1/2“
Water pressure 0,3 – 1,0 MPa
Outlet d = 32 mm

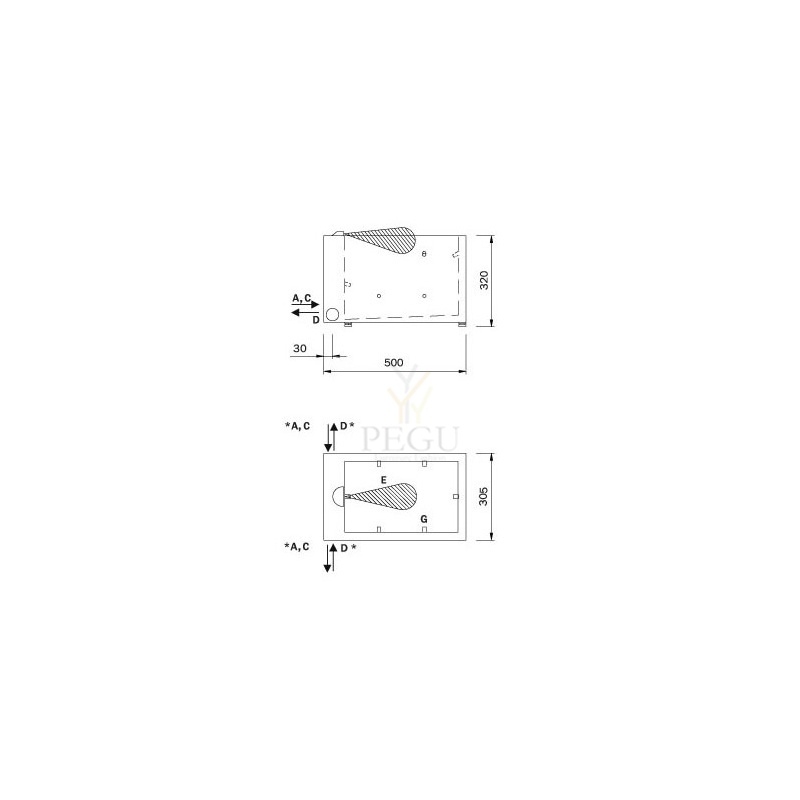

Inner dimensions of the trough 250 x 400 x 280 mm
Electricity protection IP 55
Power supply 12 V, 50 Hz
Power requirement 10 VA
Source of power supply ZAC 1/20 (max. 2 x AMO 01)
  ZAC 1/50 (max. 5 x AMO 01)
Weight 18 kg
  • Set up water inlet as per picture
  • Set up outlet d = 32 mm
  • Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Схожие продукты

Elektroisolatsioon klass 1

Kaal 3,8 kg

Voolutarve 1,3-4,8 A

Koguvõimsus 1010W-1150W

Kaitseklass IP23

Müratase 58-68dB(2m kaugusel)

Kuivatusaeg 10-15 sek.

Артикул: MM06AB ,   Время доставки: 7-14 дней
405,90 € (10%)
451,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

automatic washing system for wellingtons with jets - 12V, 50Hz


Radius of sensor 0 – 0,4 m
Water inlet G 1/2“
Water pressure 0,3 – 1,0 MPa
Outlet d = 32 mm
Inner dimensions of the trough 250 x 400 x 280 mm
Electricity protection IP 55
Power supply 12 V, 50 Hz
Power requirement 10 VA
Source of power supply ZAC 1/20 (max. 2 x AMO 01)
  ZAC 1/50 (max. 5 x AMO 01)
Weight 18 kg
  • Set up water inlet as per picture
  • Set up outlet d = 32 mm
  • Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Артикул: AZP-RMP 02 ,   Время доставки: 3-5 недель
10323,00 €

Surface automatic foam soap dispenser



Automatic wall-mounted foam soap dispenser of 1 L capacity, manufactured in stainless steel AISI 304, 0.8 mm thick.

Available in four finishes (white, black, bright and satin) these soap dispenser models have a functional, robust and trendy design that matches the new range of Mediclinics bathroom accessories. This allows this soap dispenser to blend into any space perfectly.

Suitable for high traffic facilities and for public use.

Dispenses liquid soaps with neutral pH, chlorine free and density between 0.9 and 1.35 kg/dm3. Surgical soaps and soaps with solid abrasive particles are not supported.

Артикул: MDJF0038AB ,   Время доставки: 7-14 дней
211,50 € (10%)
235,00 €
