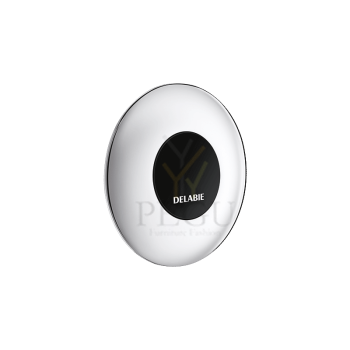

Kontaktivaba loputusseade WC-le Delabie TEMPOMATIC (läbi seina paigaldus), 230/12V 463030 Zoom

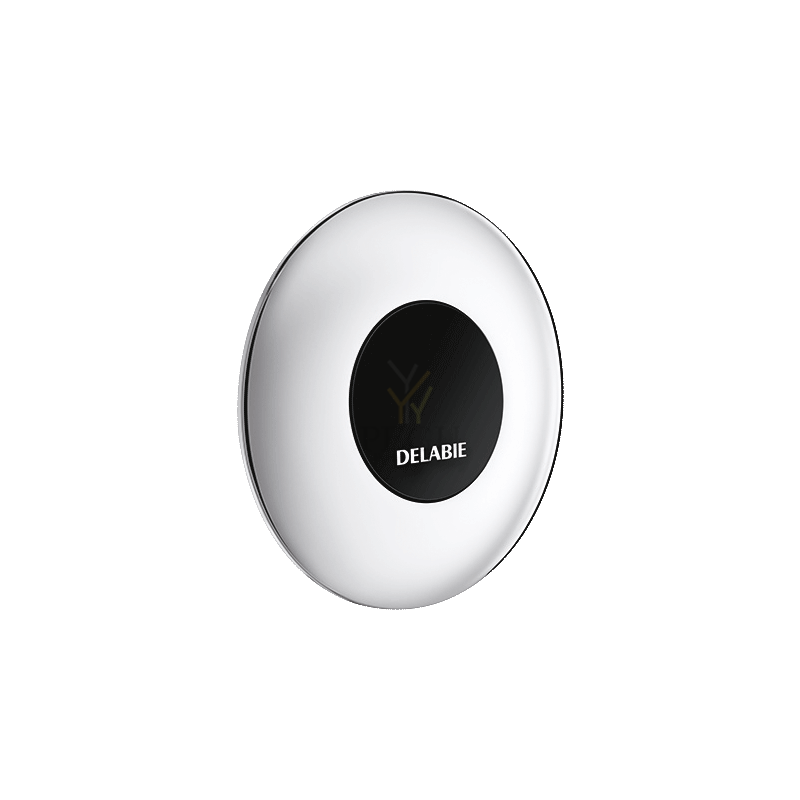

Бесконтактная система смыва для унитаза Delabie TEMPOMATIC (скрытый монтаж), 230/12V 463030

Артикул: DE-463030
Бренд:
Единица: комплект
Время доставки: 3-4 недели
Цена:
1290,00 €
Kuumakse alates: 109,65 €
Кол-во: - +

Бесконтактная система смыва для унитаза Delabie TEMPOMATIC (скрытый монтаж), 230/12V 463030

Описание:

Клапан прямого смыва TEMPOMATIC — технологичное решение для общественных санузлов. Система прямого смыва работает без накопительного бачка, подключаясь напрямую к водопроводу, что минимизирует риск размножения бактерий и экономит место.

  • Управление: Инфракрасный датчик присутствия. Автоматический смыв при удалении пользователя или при поднесении руки к сенсору (~4 см).

  • Монтаж: Скрытый монтаж через стену (толщина перегородки ≤ 30 мм).

  • Настройки: Регулируемое время смыва (3–12 сек), дистанция обнаружения и объем воды.

  • Надежность: Электронный блок с защитой IP65 и ударопрочный сенсор.

  • Универсальность: Совместим с безободковыми унитазами (rimless), а также с системами использования дождевой и морской воды.

  • Доступность: Подходит для людей с ограниченными возможностями (МГН).

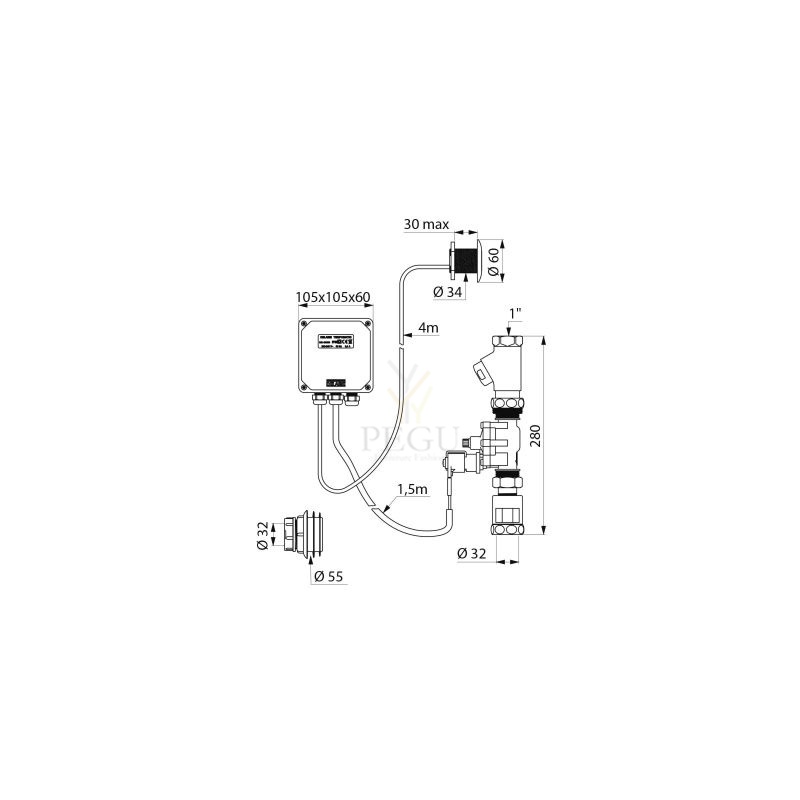

TEMPOMATIC direct flush valve

Ref. 463030

Flush system without cistern: directly connected to pipework.
Mains supply with 1" solenoid valve.
230/12V transformer.
IP65 independent electronic unit.
For cross wall installation on walls ≤ 30mm.
Shock-resistant infrared presence detection sensor.
Contactless automatic flush when the user leaves or voluntary activation (when hand is detected ~4cm in front of the sensor).
Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
Detection distance, flow rate and flush volume can be adjusted.
Stopcock FF1".
Vacuum breaker Ø32mm
Connection washer Ø 32/55mm.
Wall plate flush to the wall.
Threaded rod can be cut to size.
Base flow rate: 1 L/sec at 1 bar dynamic pressure.
Compatible with rain water, sea water and gray water.
Suitable for rimless WC pans without flow rate regulation
Suitable for people with reduced mobility.

TECHNICAL CHARACTERISTICS

TEMPOMATIC direct flush valve

Ref. 463030
Supply 230/12V mains supply
Connector 1"
Technology Electronic
Length 30mm
