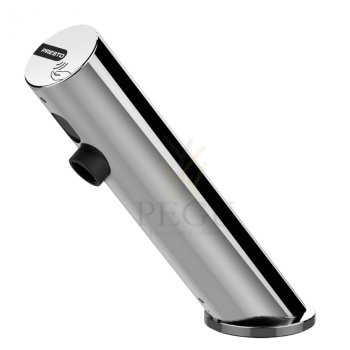

Бесконтактный сенсорный кран для раковины PRESTO Linea 3l/min 230V

Артикул: P57200
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
531,00 €
Kuumakse alates: 45,72 €
Кол-во: - +

Бесконтактный сенсорный кран для раковины PRESTO Linea  3l/min 230V

Sensoriga kraan valamule kontaktivaba PRESTO Linea 64679 3l/min 230V

Range: PRESTO LINEA®
Ref: 57200 - Deck-mounted sensor single tap for washbasin, mains 230V, 3l/min with stop valve

> Working pressure:

1 to 5 bar

> Function:

Starts and stops automatically by hand detection
Sensor trigger suitable for PRM, elderly, children and disabled people

> Flow:

3l/min at 3 bar with integrated regulated anti-limescale aerator

> Hydraulic supply:

F G 3/8" (12x17) hose

> Power supply:

Mains-operated with 230 V AC / 7 V DC transformer in IP65 waterproof case

> Material and colour finish:

Chrome-plated brass body with smooth inside body Chrome-plated molded metal cover

> Thermal resistance:

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security:

Anti-overflow security time set to 30 seconds preventing the water to flow continuously Automatic shutdown of solenoid valve in case of power failure or sensor damage
Duty flush 30 sec every 24h after last use (adjustable flow time and frequency)
Low battery alert (blinking led light)

> Installation:

Recommended installation : 30 cm minimum between the sensor and the basin

> Delivered with:

1 Brass clamping nut, 1 Gasket and 1 WasheTr
1 PEX hose with revolving nut and filter gasket
1 M M G 3/8" (12x17) stop valve
1 Self-adhesive sticker
1 Instruction manual
> Standards & approvals:
Brass body in accordance with NF EN1982, EN12164, NF EN 12165,
UBA list compliant
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

Видео



Файлы

Схожие продукты

SENSOR - LIQUID SOAP DISPENSER 950ML BOTTLE WP 102E

86 x 298 x 121 mm

Choose product variant

  • Sensor liquid soap dispenser in robust, germ-reducing and easy-care stainless steel (AISI 316L).
  • All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
    Further available surfaces: see below.
  • With EWAR® eModule touch-free operated and non-drip soap pump.
  • Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
  • Inspection slot to indicate fill level.
  • Accessible for refilling through lockable, hinged housing.
  • Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
  • eModule battery-powered with two 1.5 V Baby/LR14 batteries.
    Power supply available as an option.
  • Wear parts can be replaced as modules.
  • Mounting: With three screws through key holes and one optional anti-theft hole in the back wall.
  • Delivery includes fixing material, batteries and first fill with soap.
  • Weight (in kg): 2,8
Артикул: WAG-WP102e ,   Время доставки: 14 дней
417,24 € (5%)
439,20 €

Surface automatic liquid soap dispenser



Automatic wall-mounted liquid soap dispenser of 1 L capacity, manufactured in stainless steel AISI 304, 0.8 mm thick.

Available in four finishes (white, black, bright and satin) these soap dispenser models have a functional, robust and trendy design that matches the new range of Mediclinics bathroom accessories. This allows this soap dispenser to blend into any space perfectly.

Suitable for high traffic facilities and for public use.

Dispenses liquid soaps with neutral pH, chlorine free and density between 0.9 and 1.35 kg/dm3. Surgical soaps and soaps with solid abrasive particles are not supported.




Артикул: MDJ0037A ,   Время доставки: 7-14 дней
180,90 € (10%)
201,00 €

Керамический писсуар Golem с радаром Sanela, 24V/ DC

SLP 19RS



Urinal Golem with a radar flushing unit, 24 V DC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11195
Code SLP 19RS

SLP 19RS



Urinal Golem with a radar flushing unit, 24 V DC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 to 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11195
Code SLP 19RS


Supply specification

SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Supply specification

SLP 19RS - Supply No. 11195 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP19RS ,   Время доставки: 14-21 день
823,50 € (10%)
915,00 €

Керамический писсуар HOME с крышкой Alessi LAUFEN с радаром Sanela,  интегрированый источник питания 230V/AC

SLP 24RZ



Urinal Alessi with cover with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01245
Code SLP 24RZ


Supply specification

SLP 24RZ - Supply No. 01245 - ceramic urinal with radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, mounting set, siphon, plastic cover, power supply

Technical information

Dimension of mounting box: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP24RZ ,   Время доставки: 14-21 день
2360,70 € (10%)
2623,00 €

Керамический писсуар с крышкой Vila с радаром Sanela,  с встроенным источником питания 230V/ AC

SLP 37RZ



Urinal Vila with cover, with a radar flushing unit and with integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • water flow could be regulated by ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01375
Code SLP 37RZ


Supply specification

SLP 37RZ - Supply No. 01375 - ceramic urinal with the radar flushing unit, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, inlet fitting with a rubber sealing, siphon, mounting set, plastic cover, power supply

Technical information

Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf.data)
Water inlet: male thread G 3/4“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP37RZ ,   Время доставки: 14-21 день
1525,50 € (10%)
1695,00 €
