Больничный слив Kavika 3075

Артикул: KAV3075
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
6199,00 €
Kuumakse alates: 526,92 €
Кол-во: - +
   - или -

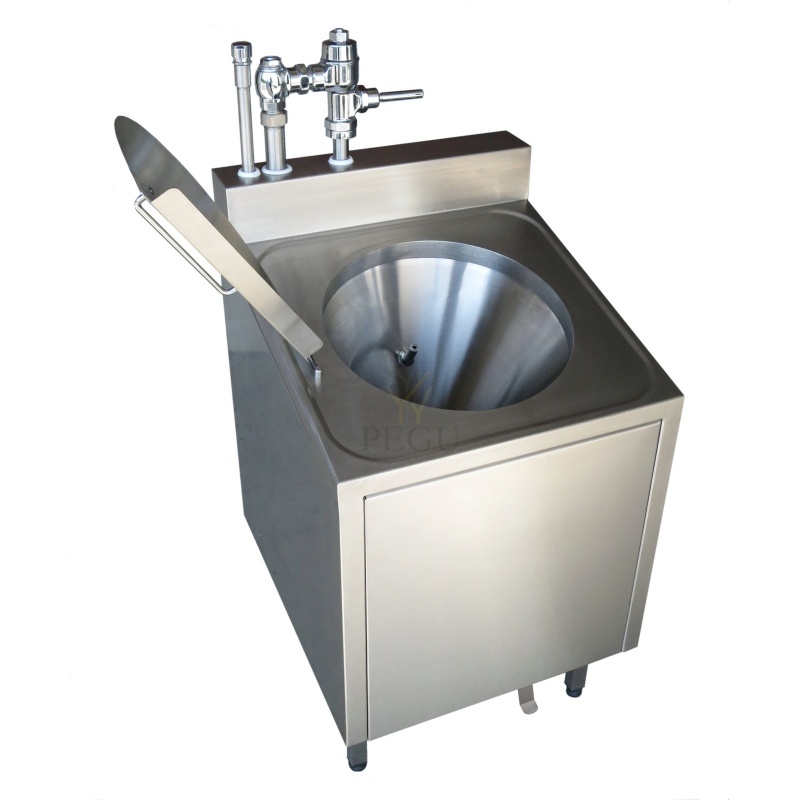

Slop closets

Slop closets are used for flushing disposing solid and fluid waste into the drain. For example kidney dishes and bottles can be emptied into the closet.

The inside surface of the slop closet is smooth and is assembled for a proper flushing of the waste. Water flows evenly to the slop closet from the flushing ring under the edge of the pouring hole. Waste is flushed using a manual flushing valve. The closet is also manufactured with a foot operated nozzle for easy rinsing of the containers.

The pouring area of 3075/V slop closet is angled for easier emptying of the containers and improving ergonomics.

Схожие продукты

Коллективный писуар 1200 mm нержавеющая сталь

Артикул: PURM-1200 ,   Время доставки: 3-4 недели
1345,00 €

General

Size (mm): 560 x 420 x 199

Accessories

Included:
Extra equipment: Brackets

Mounting: Wall mount
Finish: Satin
Properties: Overflow
Артикул: I-RS72STD + I-91008 ,   Время доставки: 14-21 д
427,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
105,00 €

Splashback 2400mm for CANAL wash trough
Ref. 100300

Splashback for CANAL wash trough.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Length: 2,400mm.



TECHNICAL FEATURES

Splashback 2400mm for CANAL wash trough
Ref. 100300

Height 300mm
Length 2400mm
Width 1.5mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Артикул: DE-100300 ,   Время доставки: 14-21 день
474,00 €

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.

Артикул: I-L1 ,   Время доставки: 14-21 день
488,00 €
