350 x 448 x 210 mm
1 paper roll

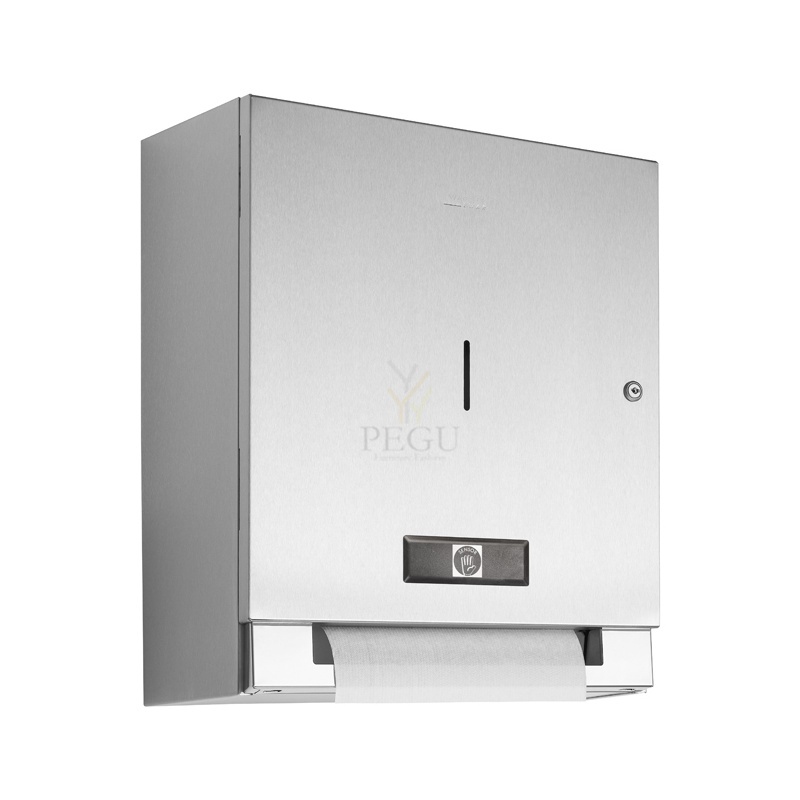

• Sensor paper roll dispenser, battery-powered, in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed with tapered glossy surface at the bottom.
  Further available surfaces: see below.
• With touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Battery-powered with four standard 1.5 V Mono/LR20/12 A batteries.
• Designed for one paper roll with dimensions: Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes in the back wall.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 10,3

Käterätikuivati on valmistatud messingist. (brass)

Полотенцесушители выполнены из латуни

Sobib nii küttevee kui ka tarbevee süsteemi.

Подходят как для отопительной системы, так и для ГВС

Maksimaalne töörõhk on 600 KPa

Максимальное рабочее давление 600 KPa

Maksimaalne temperatuur 85°C

максимальная температура 85°C

Võimalikud viimistlused Chroom +...%

Возможные покрытия Chroom +...%

Ø 45 x 170 x 155 mm
normal pressure

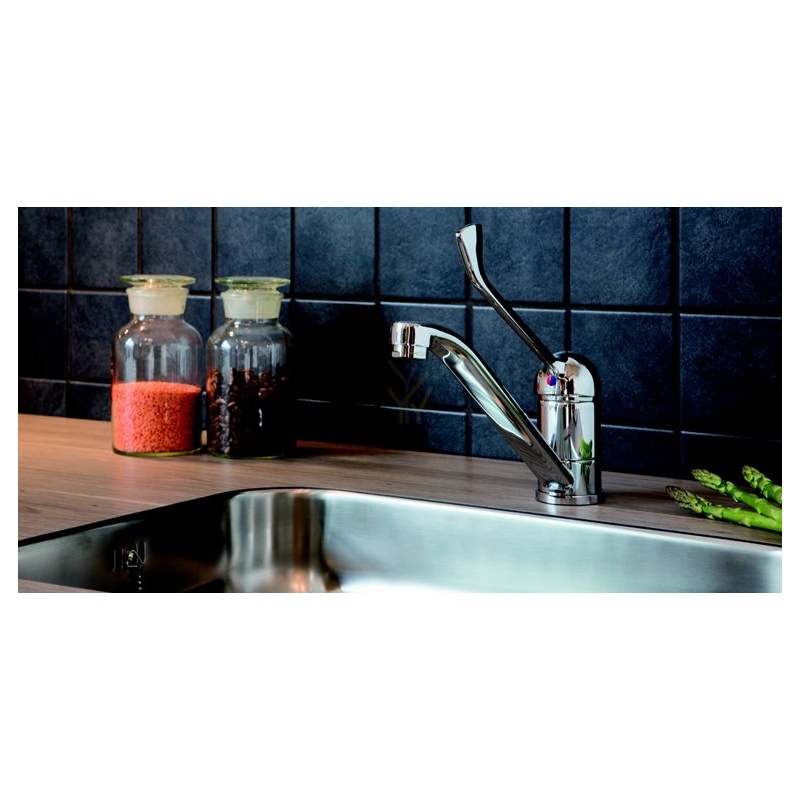

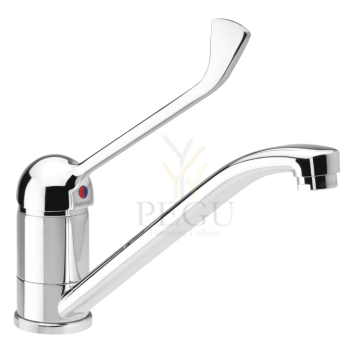

• Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
• Version: normal pressure. Operating pressure 2–6 bar.
• Solid stainless steel body; visible surfaces satin finished.
  Further available surfaces: see below.
• High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
• Neoperl® air bubble spray M22 x 1 mm.
• Design height: 171 mm
  Outlet height: 87 mm
  Projection: 98 mm
  Length of lever: 40 mm

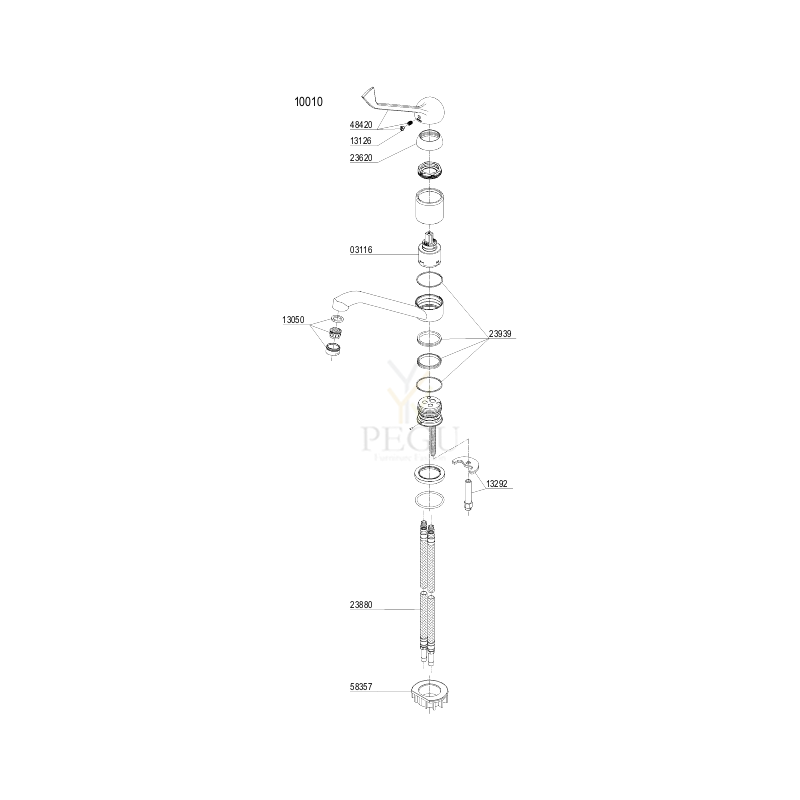

• Wear parts can be replaced as modules.
• Installation dimensions: Ø 33-40 mm
  Surface thickness max. 40 mm
• Mounting: With one counternut.
• Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

• Weight (in kg): 1,60
