Delabie turvavalamu TEK roostevaba teras satiin 7 sek kraaniga 161340 Zoom

Delabie антивандальная раковина TEK нержавеющая сталь сатин с краном 7 sek

Артикул: DE-161340
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1543,90 €
Kuumakse alates: 131,23 €
Кол-во: - +

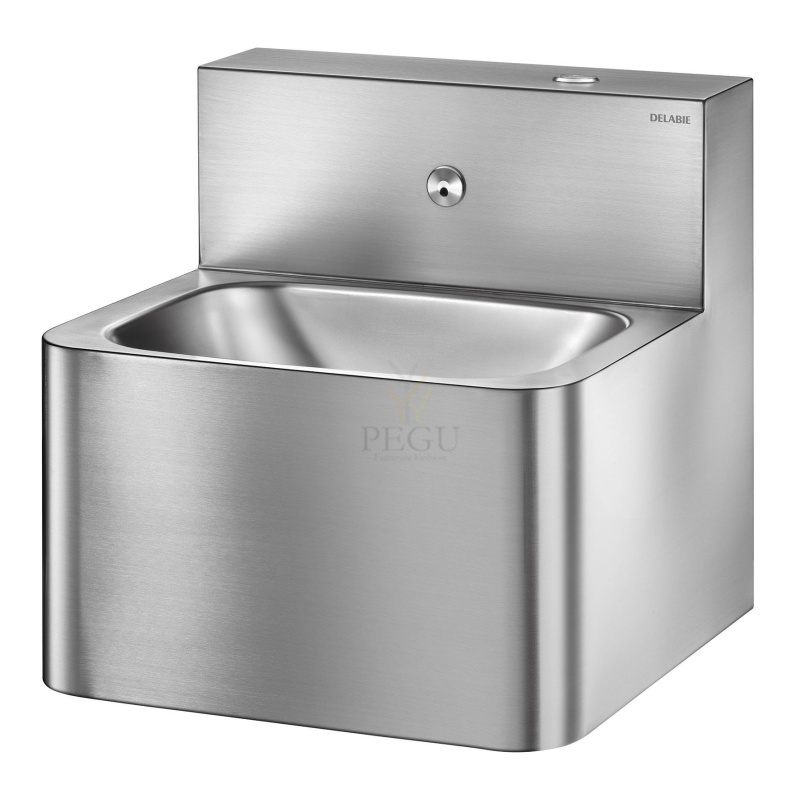

TEK washbasin
Ref. 161340

Wall-mounted washbasin.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Supplied with 1 time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 seconds time flow.
Recessed horizontal waste outlet Ø 32mm.
Flat perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with trap.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.6kg.

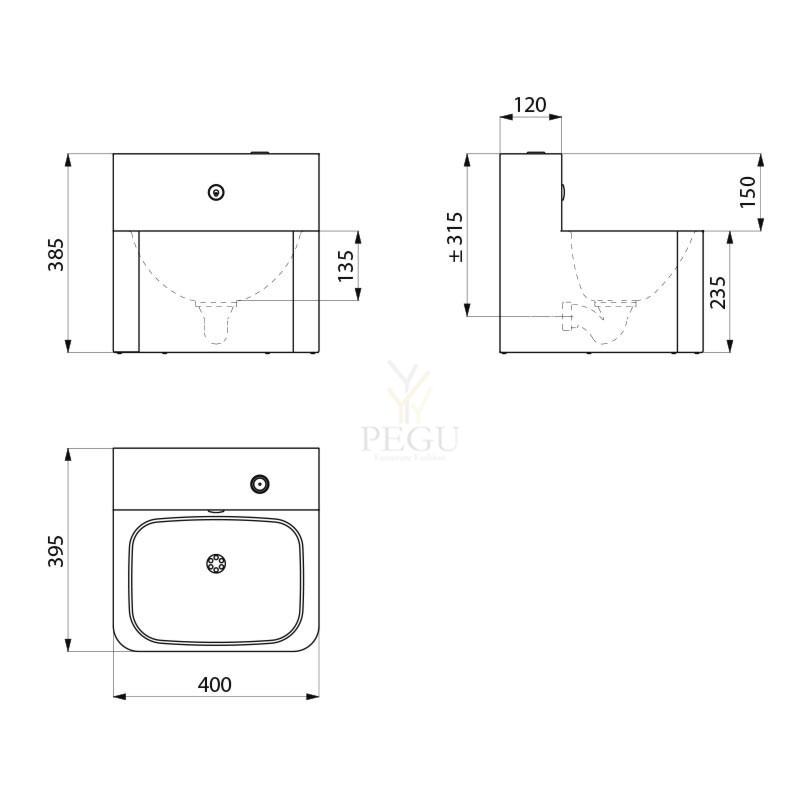

TECHNICAL FEATURES

TEK washbasin
Ref. 161340

Height 385mm
Length 395 mm
Width 400mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel

Файлы

Схожие продукты

Отделитель гипса GIPS-01, 9L, Н/Р сталь, AISI 304

Overall dimension in mm Ø300 x 382 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 7.70

Артикул: EL255-GIPS-01 ,   Время доставки: 3-4 недели ,   Viimistlus:
1309,11 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €

MINIMAL corner washbasin
Ref. 121550

Wall-mounted corner washbasin (90° angle).
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
With Ø 35mm central tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 4kg.

Артикул: DE-121550 ,   Время доставки: 14-21 день ,   Viimistlus:
533,61 €

DUPLO RP wall-mounted multiple washbasin
Ref. 121390

Wall-mounted double washbasin, 1,200x500mm.
With a splashbaack to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Rounded edges prevent injury.
With central tap hole, Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 15kg.

Артикул: DE-121390 ,   Время доставки: 14-21 день ,   Viimistlus:
1593,70 €

S21 P floor-standing WC pan
Ref. 110300

Floor-standing WC pan, 360 x 400 x 580mm.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORXsecurity screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14kg.

Артикул: DE-110300 ,   Время доставки: 14-21 день ,   Viimistlus:
1598,79 €
