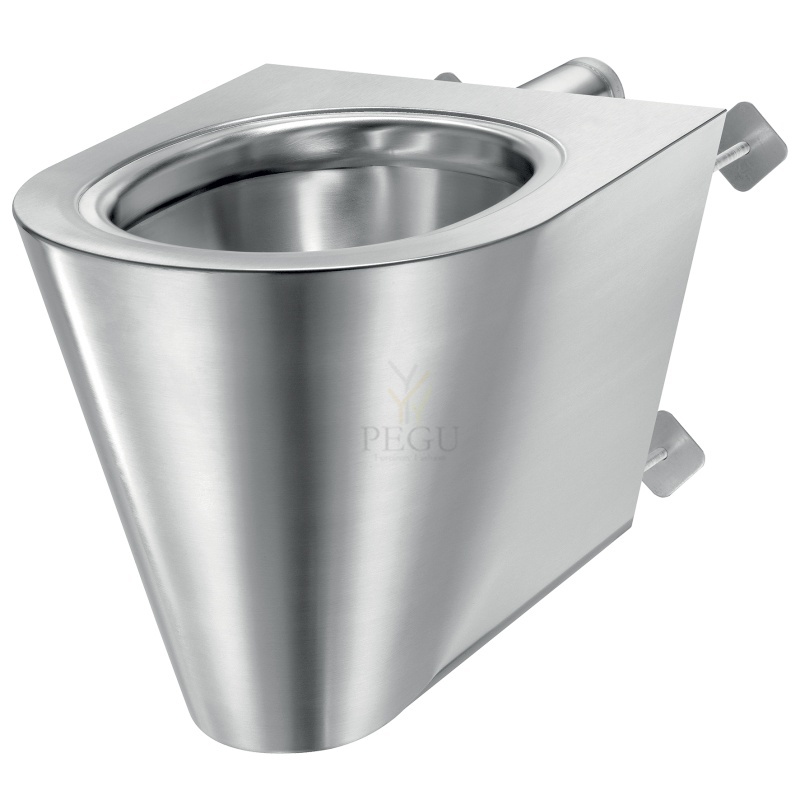

Delabie антивандальный униназ WC настенный S21 S TC Н/Р сталь

Артикул: DE-160310
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1543,90 €
Kuumakse alates: 131,23 €
Кол-во: - +

S21 S TC wall-hung WC pan
Ref. 160310

Wall-hung WC pan with through-the-wall installation for service ducts.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm
One-piece pressed WC bowl, seam-free for easy maintenanceand better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm
Horizontal waste outlet: Ø 100mm
Water saving: works with 4L or more of water.
200mm threaded rod can be cut to size (other lengths are available on request).
Shrouded WC pan.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 11kg.
[Formerly ref: 0116320001]

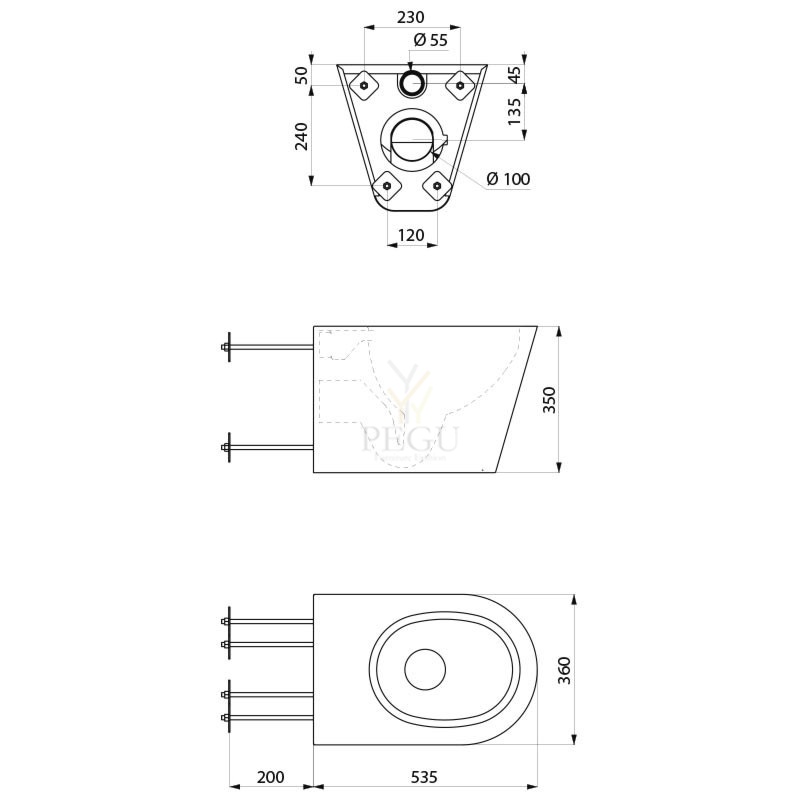

TECHNICAL FEATURES

S21 S TC wall-hung WC pan
Ref. 160310

Height 350mm
Length 535mm
Width 360mm
Thickness 1.5mm
Finish 304 polished satin stainless steel





Файлы

Схожие продукты

Delabie WC INVA Monobloco 700 Н/Р сталь

DESCRIPTION

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Height 895mm
Length 700mm
Width 370mm
Thickness 1.5mm
Finish Polished satin 304 stainless steel


Артикул: DE-110790 ,   Время доставки: 7 недель ,   Viimistlus:
2844,89 €

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Артикул: AZP-AUM 026.TV INV ,   Время доставки: 3-4 недели ,   Viimistlus:
4370,49 €

TEK washbasin
Ref. 161340

Wall-mounted washbasin.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Supplied with 1 time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 seconds time flow.
Recessed horizontal waste outlet Ø 32mm.
Flat perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with trap.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.6kg.



TECHNICAL FEATURES

TEK washbasin
Ref. 161340

Height 385mm
Length 395 mm
Width 400mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Артикул: DE-161340 ,   Время доставки: 14-21 день ,   Viimistlus:
1543,90 €

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Central WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130005]



TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Артикул: DE-166500 ,   Время доставки: 4-6 недель ,   Viimistlus:
4240,39 €

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030008]



TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Артикул: DE-160800 ,   Время доставки: 4-6 недель ,   Viimistlus:
4240,39 €
