Delabie Be-line поднимающаяся инвалидная ручка D42mm L850mm матовый белый алюминий

Артикул: DE-511964W
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
438,00 €
Kuumakse alates: 37,31 €
Кол-во: - +
   - или -

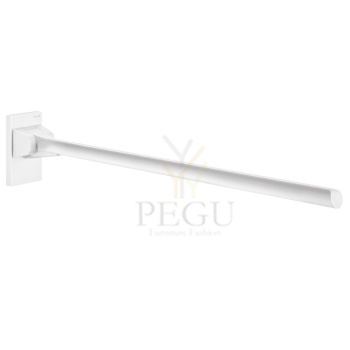

Be-Line drop-down support rail, L. 850mm, white
Ref. 511964W

Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Slowed down descent. Retained in upright position.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 850 x 210 x 120mm.
Tested to over 200kg. Maximum recommended user weight: 135kg



TECHNICAL FEATURES

Be-Line drop-down support rail, L. 850mm, white
Ref. 511964W

Height 210mm
Length 850mm
Width 120mm
Finish Powder-coated matte white aluminium

Файлы

Совместимые продукты

DESCRIPTION

Cover plate for Be-Line drop-down rail
Ref. 511950C

Be-Line metallised anthracite cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.



TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail
Ref. 511950C

Height 230mm
Depth 17mm
Width 105mm
Finish Metallised anthracite
Артикул: DE-511950C ,   Время доставки: 14-21 день
66,00 €

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC

Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.



TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC

Height 230mm
Depth 17mm
Width 105mm
Finish Metallised anthracite
Артикул: DE-511950FC ,   Время доставки: 14-21 день
120,00 €

Cover plate for Be-Line drop-down rail
Ref. 511950W

Be-Line matte white cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.

TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail
Ref. 511950W

Height 230mm
Depth 17mm
Width 105mm
Finish Matte white
Артикул: DE-511950W ,   Время доставки: 14-21 день
66,00 €

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW

Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.



TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW

Height 230mm
Depth 17mm
Width 105mm
Finish Matte white



Артикул: DE-511950FW ,   Время доставки: 14-21 день
120,00 €
