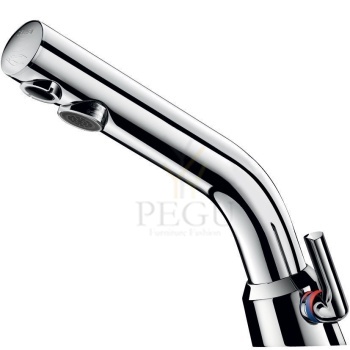

Delabie бесконтактный электронный смеситель BINOPTIC MIX 6V

Артикул: DE-478MCH15
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
872,30 €
Kuumakse alates: 74,48 €
Кол-во: - +
   - или -

BINOPTIC MIX electronic mixer
Ref. 478MCH15

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium battery.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 sec. every 24h after last use).
Active, infrared movement detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
PEX flexibles with filters, solenoid valves and Ø 15mm conical inlets.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking safety.
Spout with a smooth interior and low volume of water (limits bacterial niches).
Side temperature control with adjustable maximum temperature limiter.



TECHNICAL FEATURES

BINOPTIC MIX electronic mixer
Ref. 478MCH15

Supply 6V battery
Connector M1/2'' Ø 15mm
Technology Electronic
Drop height 110mm
Spout length 135mm
Flow rate 3 lpm

Файлы

Схожие продукты

veesäästu funktsioon Eco-Save

5 pihustivõimalust

Kummiaeraator-lihtne puhastada

Артикул: D7655500 ,   Время доставки: 7-14 дней
63,00 €

Vajutava nupuga segisti

Presto

Antiblokeerimise süsteemiga

kroom

15 sek. töötsükkel 3 bar

3-6 l/min

Артикул: P68132 ,   Время доставки: 7 дней
378,20 €

Vooluhulga piiraja

12 l/min (3bar)

1401

Veesääst 30% (3 bar)

RST vee vooluhulga regulaator dušisegistile või peaduššile (½” ühendus). Toodetud Saksamaal. Pakendis 1 tk.

Артикул: RSTJ-1401 ,   Время доставки: 7 päeva
12,20 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3056 / EAN no. 5-709818-030562
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Артикул: DAN3056 00 ,   Время доставки: 14-21 день
427,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €
