jpg_498MCHLH15_1.jpg Zoom

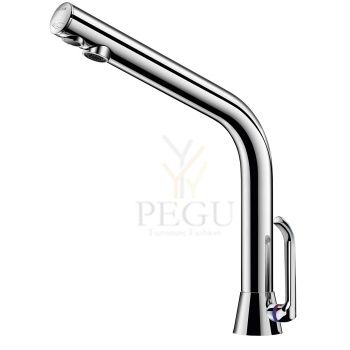

Delabie бесконтактный электронный смеситель H250mm BINOPTIC MIX 6V

Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1129,21 €
Kuumakse alates: 95,98 €
Кол-во: - +
   - или -

BINOPTIC MIX electronic mixer
Ref. 498MCHLH15

Deck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium batteries.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush 60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves Ø 15mm for compression fittings.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Side temperature control with adjustable maximum temperature and ergonomic LH lever.
Drop height 250mm for counter-top washbasins.
Suitable for people with reduced mobility.

TECHNICAL FEATURES

BINOPTIC MIX electronic mixer
Ref. 498MCHLH15

Supply 6V batteries
Connector M1/2'' Ø 15
Technology Electronic
Drop height 250mm
Spout length 185mm
Flow rate 3 lpm
