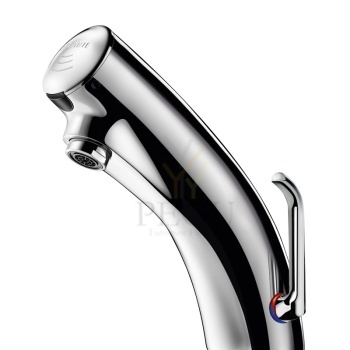

Delabie бесконтактный электронный смеситель TEMPOMATIC MIX 3 6V

Артикул: DE-492006LH
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
643,00 €
Kuumakse alates: 54,70 €
Кол-во: - +
   - или -

TEMPOMATIC MIX 3 electronic mixer
Ref. 492006LH

Deck-mounted electronic basin mixer:
Battery-operated with integrated 223 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated solid brass body.
Cap fixed in place by 2 concealed screws, with pictogram to easily identify sensor.
PEX flexibles with stopcocks, filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.



TECHNICAL FEATURES

TEMPOMATIC MIX 3 electronic mixer
Ref. 492006LH

Supply 6V battery
Connector F3/8"
Technology Electronic
Drop height 100mm
Spout length 120mm
Flow rate 3 lpm

Файлы

Схожие продукты

Кран с сенсором Sanela Н/Р сталь холодная/смешанная вода

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Артикул: SA-SLU 45, 24V DC ,   Время доставки: 14 дней
575,00 €

Töötsükkel 15 sek

Артикул: P68400 ,   Время доставки: 14 дней
306,85 € (5%)
323,00 €

PRODUCT DESCRIPTION

• Winner of a Red Dot Design Award!

• Holds approx. 9,5 dl liquid soap (= 800-950 doses).

• Battery-operated. Connection to power supply via a transformer.

• An intelligent sensor automatically sets the best sensor range.

• LED light indicates when dispenser is in use.

• Comes in trendy matt black and classic white as standard.

• Also available in all RAL colours and coated with different prints.

• Top plate in 6 optional standard designs

• 2-year warranty.



SPECIFICATIONS
Product number: 3056 / EAN no. 5-709818-030562
Technical data:
Touch-free soap dispenser for liquid soap/disinfectant. Matt black steel housing (RAL 9005, gloss 3). Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
Dimensions H: 330 mm, W: 139 mm, D: 127 mm
Net Weight: 2.3 kg
Артикул: DAN3056 00 ,   Время доставки: 14-21 день
490,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €
Антивандальная душевая головка  12l/min



SP 5

tilting shower head - 12 l/min - VANDAL-RESISTANT






Design vandal-resistant arm with the flow of 12 litres / minute. The arm has a tilting outlet and an aerator protected against scaling. The arm is protected against theft with a countersunk Allen screw; therefore, it cannot be dismounted without a tool.

Артикул: AZP-SP5 ,   Время доставки: 3-4 недели
152,00 €
