Delabie majahoidja põranda valamu viduariga R/V teras AISI304 180140 Zoom

Delabie хозяйственная напольная раковина c видуаром Н/Р сталь AISI304 180140

Артикул: DE-180140
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 2119,00 €
1907,10 €
Kuumakse alates: 162,10 €
Кол-во: - +

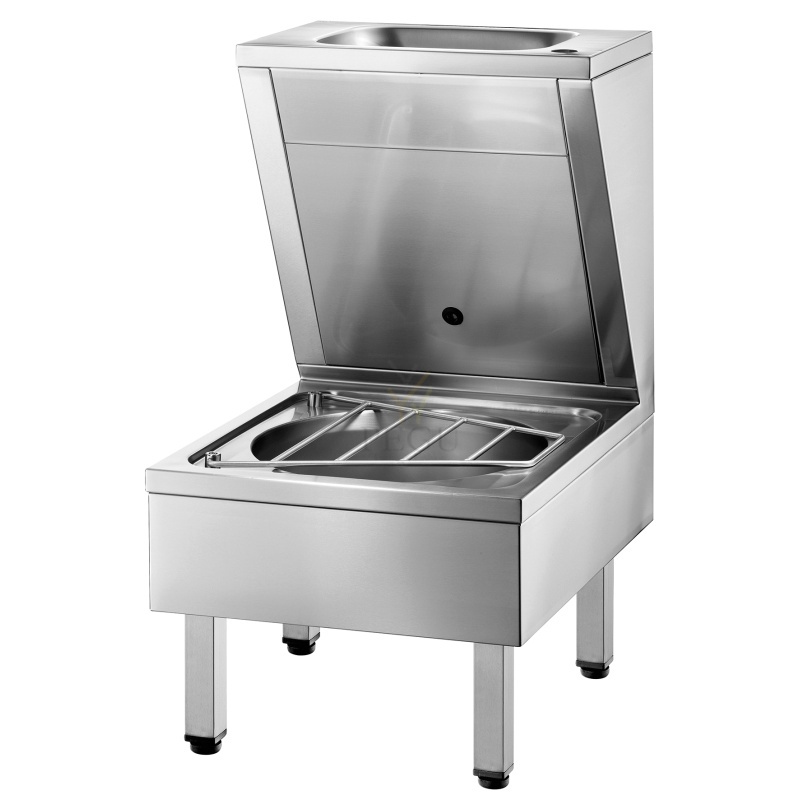

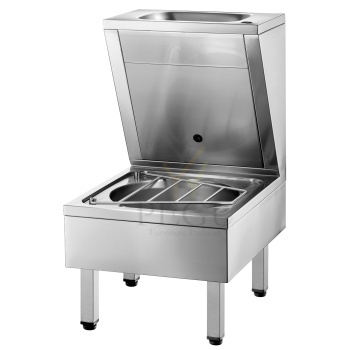

Delabie хозяйственная напольная раковина c видуаром Н/Р сталь AISI304 180140

Floor-standing janitorial unit
Ref. 180140

Floor-standing janitorial unit.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.0mm.
Smooth surface for easy cleaning.
Adjustable feet height up to 25mm.
With tap hole Ø 35mm on right side.
Supplied with 1 ¼" waste for washbasin and 1½" for disposal sink. Without overflow.
Hinged stainless steel bucket grid.
Weight: 22kg.

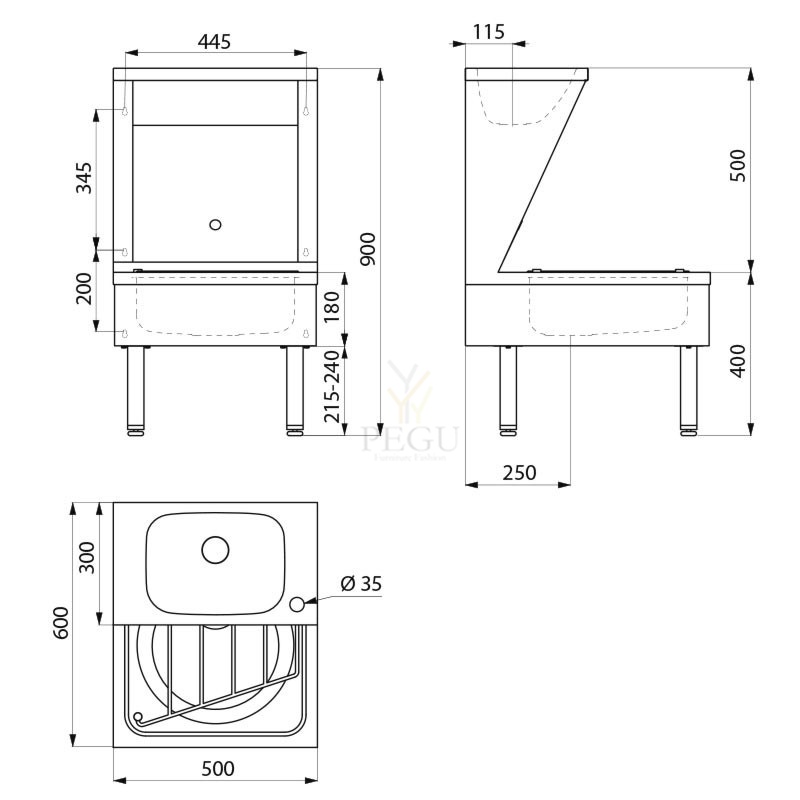

TECHNICAL FEATURES

Floor-standing janitorial unit
Ref. 180140

Height 900mm
Length 600mm
Width 500mm
Thickness 1.0mm
Finish 304 polished satin stainless steel
Схожие продукты

Изливная трубка на раковину, фиксированая Presto 30302

Артикул: P-30302 ,   Время доставки: 7 дней ,   Цвет или покрытие: Хром
134,10 € (10%)
149,00 €

Отделитель гипса GIPS-01, 9L, Н/Р сталь, AISI 304

Overall dimension in mm Ø300 x 382 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 7.70

Артикул: EL255-GIPS-01 ,   Время доставки: 3-4 недели ,   Цвет или покрытие:
1309,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Цвет или покрытие:
106,72 €

automatic washing system for wellingtons with jets - 12V, 50Hz


Radius of sensor 0 – 0,4 m
Water inlet G 1/2“
Water pressure 0,3 – 1,0 MPa
Outlet d = 32 mm
Inner dimensions of the trough 250 x 400 x 280 mm
Electricity protection IP 55
Power supply 12 V, 50 Hz
Power requirement 10 VA
Source of power supply ZAC 1/20 (max. 2 x AMO 01)
  ZAC 1/50 (max. 5 x AMO 01)
Weight 18 kg
  • Set up water inlet as per picture
  • Set up outlet d = 32 mm
  • Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Артикул: AZP-RMP-02 ,   Время доставки: 3-5 недель ,   Цвет или покрытие:
10492,23 €

Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.

Артикул: I-L1 ,   Время доставки: 14-21 день ,   Цвет или покрытие:
496,00 €
