Delabie коллективная раковина DUPLO RP 1200x500mm нержавеющая сталь сатин

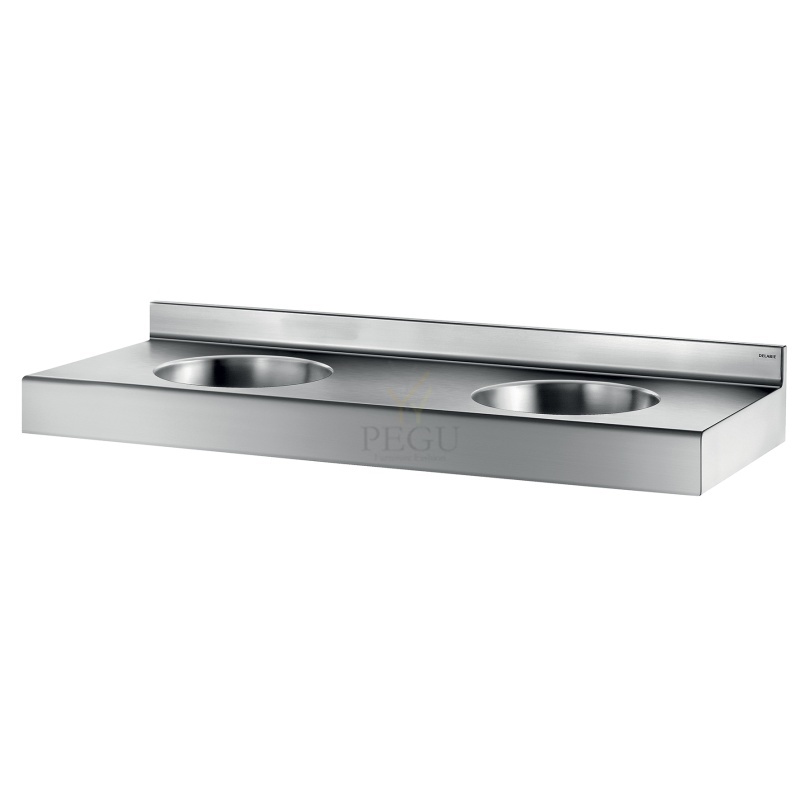

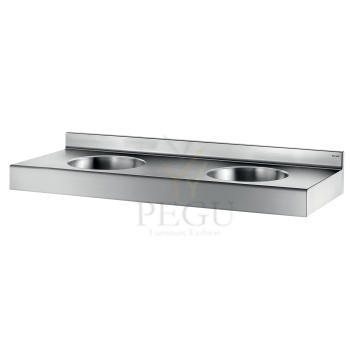

DUPLO RP wall-mounted multiple washbasin
Ref. 120390
Wall-mounted double washbasin, 1,200x500mm.
With a splashback to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 15kg.
Файлы
Delabie WC INVA Monobloco 700 Н/Р сталь
DESCRIPTION
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.
TECHNICAL FEATURES
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Height | 895mm |
---|---|
Length | 700mm |
Width | 370mm |
Thickness | 1.5mm |
Finish | Polished satin 304 stainless steel |
Хозяйственная раковина Intra VK50STD 555x455x230 настенная.
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
Нержавеющая подвесная раковина 455x330 , Н/Р сталь
Stainless steel floor standing bulk sink, 700x700x850 mm
Characteristics
- stainless steel bulk sink with supporting legs with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- available also in dimensions 600 x 600 x 850 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
Order number | 93150 |
Code | SLUN 15 |
Питьевой фонтан настенный сенсорный для бассейнов Н/Р сталь AISI316(бассейны) 6V(4x1.5V)
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
water inlet | G 1/2" |
water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
outlet | d = 40 mm |
bowl inner dimension | d = 245 mm |
weigth | 4 kg |
suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
