Delabie KOMPACT Combi HW/CW WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304 161800 Zoom

Delabie KOMPACT Combi HW/CW WC + раковина симметричный напольный антивандальный Н/Р сталь AISI304 161800

Артикул: DE-161800
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
4535,00 €
Kuumakse alates: 385,48 €
Кол-во: - +

Delabie KOMPACT Combi HW/CW WC + раковина симметричный напольный антивандальный Н/Р сталь AISI304 161800

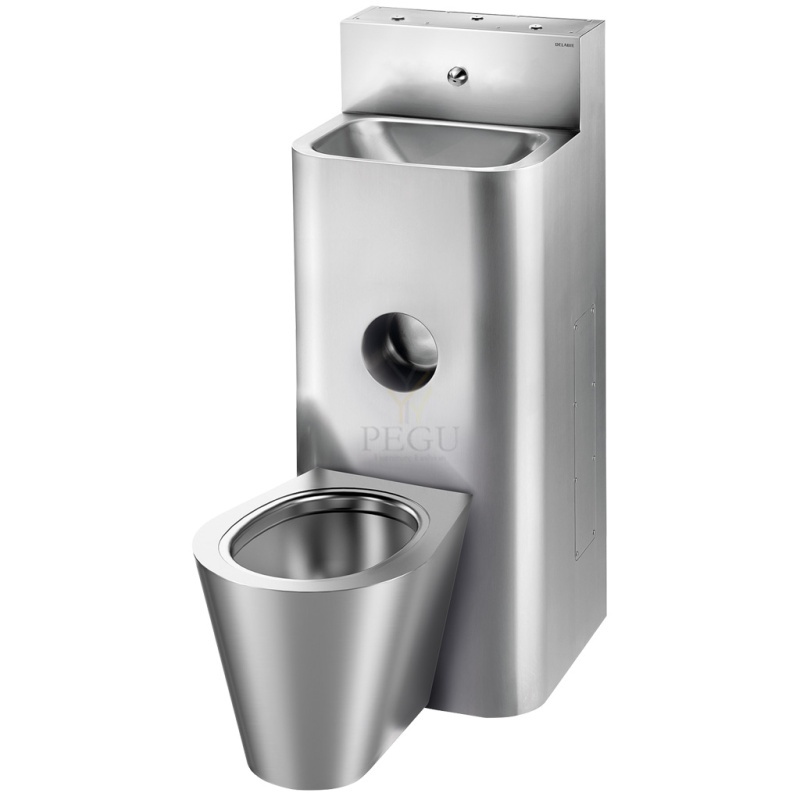

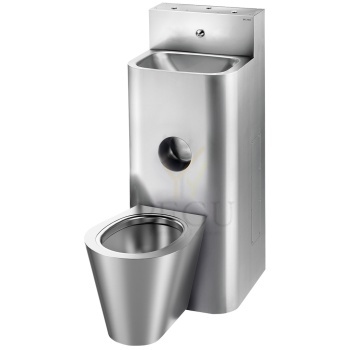

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800

Combination unit: washbasin and floor-standing central WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.

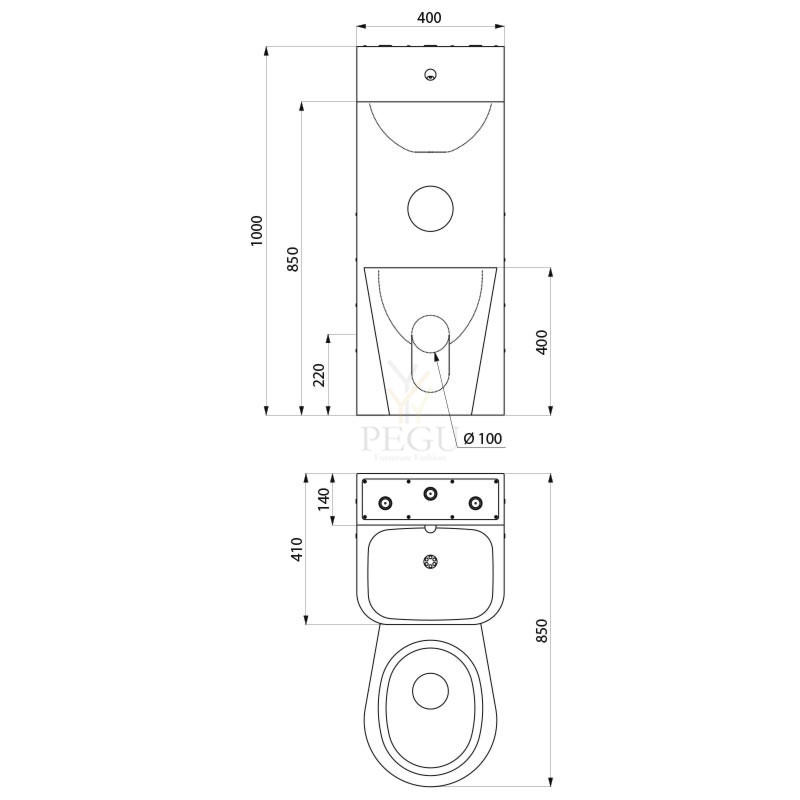

TECHNICAL FEATURES

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800

Height 1000mm
Length 850mm
Width 400mm
Thickness 2mm
Finish Polished satin 304 stainless steel

Файлы

Схожие продукты
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €

Антивандальное зеркало Н/Р сталь 385x485 AISI304 Delabie 3452

Stainless steel rectangular mirror, H. 500mm
Ref. 3452

Depth 10mm
Length Unbreakable mirror
Width 385mm
Drop height 485mm
Finish "Mirror" polished 304 stainless steel
Артикул: DE-3452 ,   Время доставки: 7-21 день ,   Viimistlus:
285,00 €

WC антивандальный комплект 1-200mm толщина стены 13060

> Working pressure : 1 to 5 bar

> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design

> Flow time : From 7 to 9 seconds

> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm

> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish

> Security : Anti-siphonic device

> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P13060 ,   Время доставки: 6-7 недель ,   Viimistlus:
471,00 €

Delabie раковина AQUEDUTO 700x440 нержавеющая сталь сатин 120150

AQUEDUTO wall-mounted washbasin
Ref. 120150

Wall-mounted washbasin, 700x440mm.
Simple and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
.Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.

Артикул: DE-120150 ,   Время доставки: 14-21 день ,   Viimistlus:
1340,00 €

Нержавеющая сталь WC напольный Delabie S21 110300

S21 P floor-standing WC pan
Ref. 110300

Floor-standing WC pan, 360 x 400 x 580mm.
Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm. Supplied with PVC pipe.
Water saving: works with 4L or more of water.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install: 2 access panels with theft prevention TORXsecurity screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14kg.

Артикул: DE-110300 ,   Время доставки: 14-21 день ,   Viimistlus:
