Delabie KOMPACT Combi HW/CW WC + раковина справа напольный антивандальный Н/Р сталь AISI304
Бренд:

Единица: шт
Время доставки: 4-6 недель
инфо e-mail : info@pegu.ee
PEGU0121 код скидки ввести в поле купона при оформлении покупки!

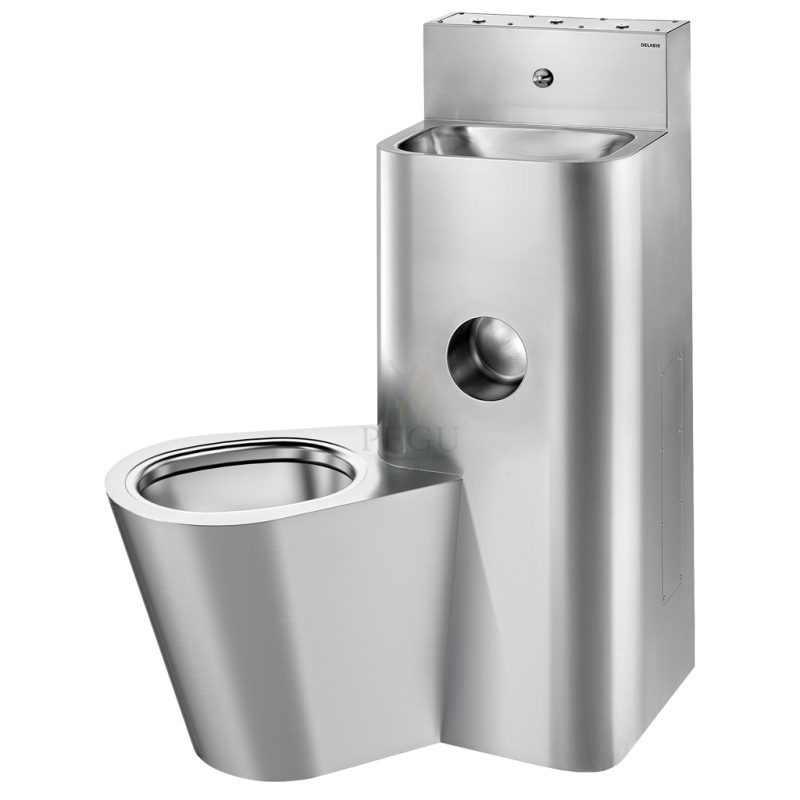

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161700
Combination unit: washbasin and floor-standing left hand WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.

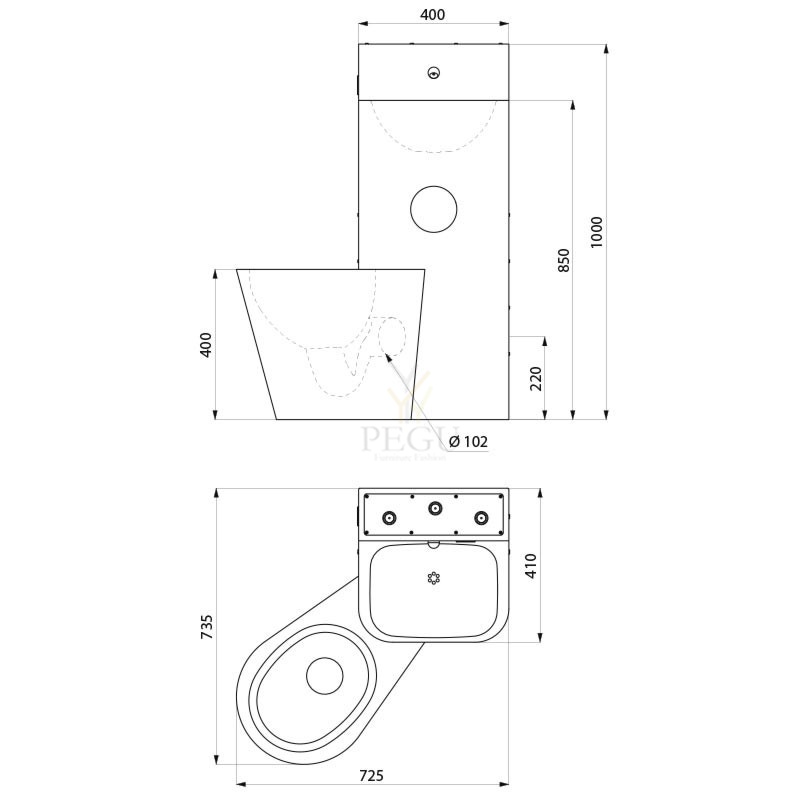

TECHNICAL FEATURES
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161700
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
Файлы
Overall dimension in mm Ø300 x 382 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 7.70
REDO wall-mounted washbasin
Ref. 121710
Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
REDO wall-mounted washbasin
Ref. 121710
Height | 150mm |
---|---|
Length | 375mm |
Width | 430mm |
Thickness | 1.2mm |
Finish | 304 polished satin stainless steel |
General
Size (mm): | 525 x 334 x 97 |
Large bowl (mm): | 500 x 310 x 83 |
Designer: | Halvor Thorsen |
Description
Icon Hand Wash Basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.
Polished finish.
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
