Delabie KOMPACT TC WC+valamu sümmetriline põranda antivandaalne R/V teras AISI304 166500 Zoom

Delabie KOMPACT TC WC + раковина симметричный напольный антивандальный Н/Р сталь AISI304

Артикул: DE-166500
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
4240,39 €
Kuumakse alates: 360,43 €
Кол-во: - +

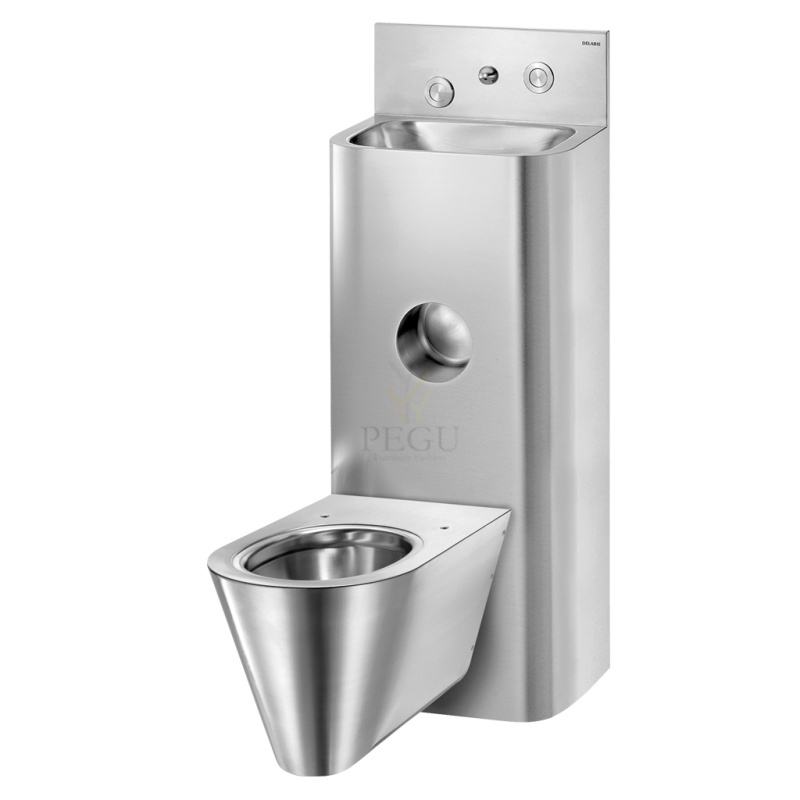

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Combination unit: washbasin and WC pan suspended centrallywith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Central WC pan
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130005]

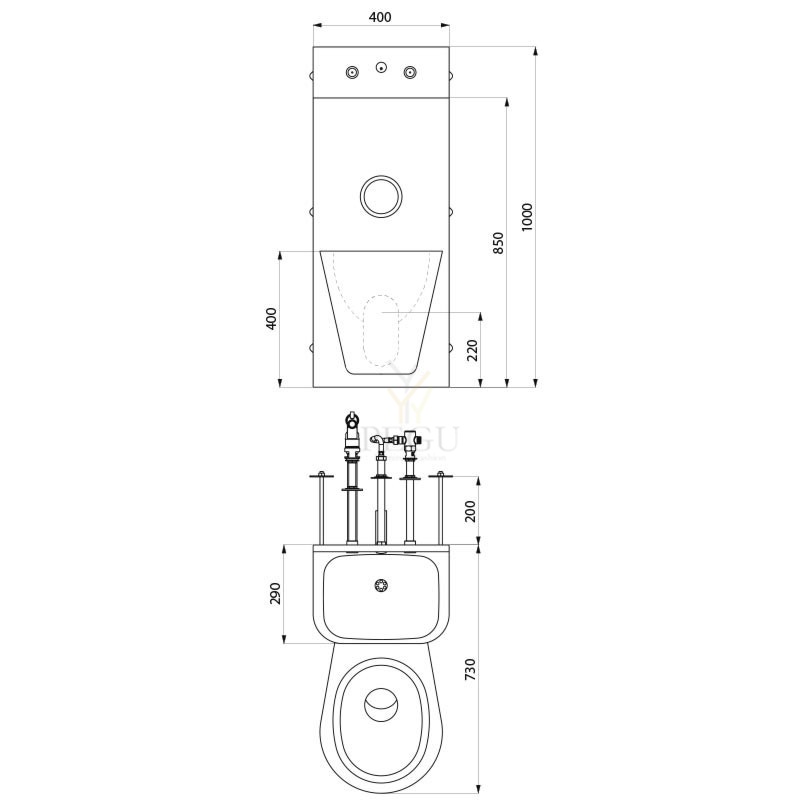

TECHNICAL FEATURES

KOMPACT TC washbasin and wall-hung WC combination
Ref. 166500

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel

Файлы

Схожие продукты
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €

TECHNICAL FEATURES

TEMPOSTOP time flow tap
Ref. 741943

Connector M1/2"
Technology Time flow
Length 200mm
Spout length 75mm
Flow rate 3 lpm

TEMPOSTOP time flow tap
Ref. 741943

Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is



Артикул: DE-741943 ,   Время доставки: 7-21 день ,   Viimistlus:
354,72 €

AQUEDUTO wall-mounted washbasin
Ref. 120150

Wall-mounted washbasin, 700x440mm.
Simple and timeless design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
.Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 12kg.

Артикул: DE-120150 ,   Время доставки: 14-21 день ,   Viimistlus:
1302,00 €

Wall-mounted BOB washbasin
Ref. 121130

Wall-mounted washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap.
Quick and easy to install from the front thanksto a stainless steel mounting frame.
Supplied with 1 ¼" waste and trap.
With tap hole Ø 35mm on right side.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Артикул: DE-121130 ,   Время доставки: 14-21 день ,   Viimistlus:
706,39 €

CANAL wall-mounted wash trough
Ref. 120250

Wall-mounted wash trough for 2 services L. 1,200mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
No tap hole.
Supplied with 1½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 8.4kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 100250).

Артикул: DE-120250 ,   Время доставки: 14-21 день ,   Viimistlus:
848,69 €
