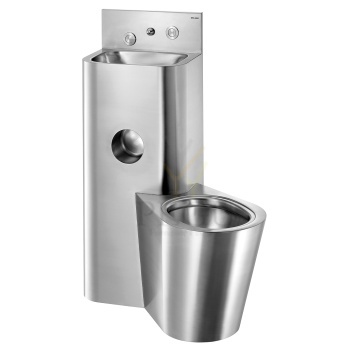

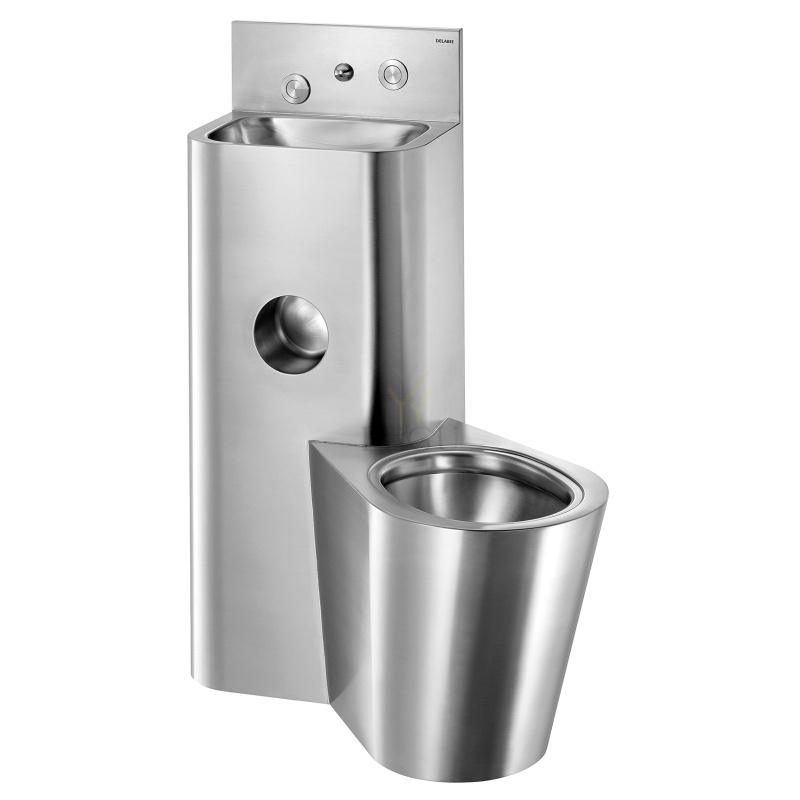

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600
Combination unit: washbasin and floor-standing WC pan on right sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130006]

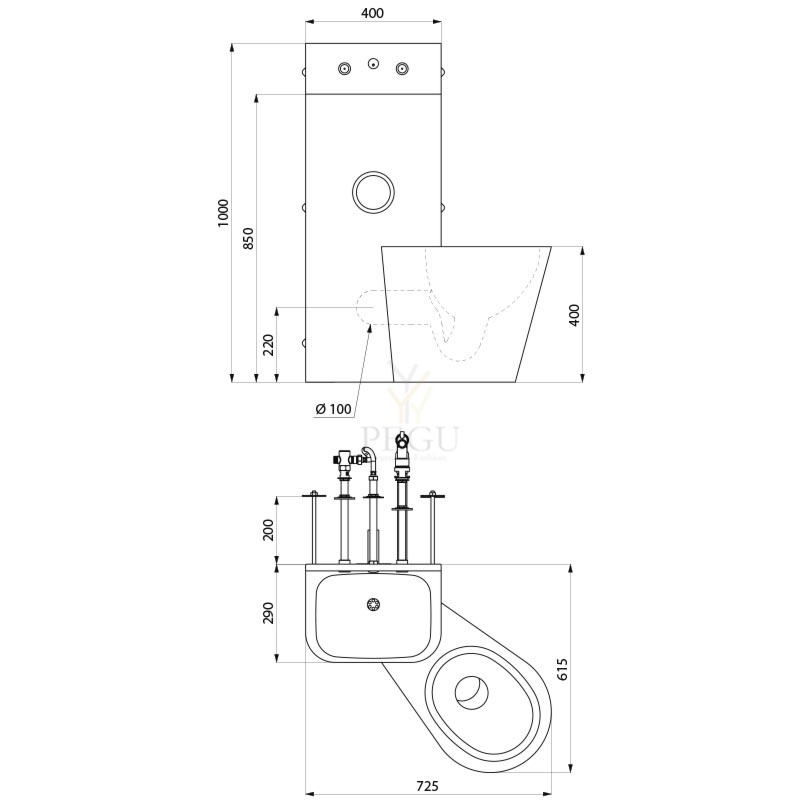

Technical features
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166600
Height | 1000mm |
---|---|
Length | 615mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
Файлы
Semi-recessed QUADRA washbasin
Ref. 120650
Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1¼" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.
TECHNICAL FEATURES
Semi-recessed QUADRA washbasin
Ref. 120650
Height | 130mm |
---|---|
Length | 380mm |
Width | 380mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
DESCRIPTION
HEMI inset round washbasin Ø 385mm - Ref. 120490
Round washbasin for recessed installation from above or below.
Basin internal diameter: 385mm.
Cut-out diameter: 400mm for installation from above, 380mm for installation from below.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 1 1⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 1.6kg.
Wall-mounted CANAL wash trough
Ref. 121250
Wall-mounted wash trough for 2 posts.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, lightweight wash trough.
Drainage on the right.
With 2 tap holes Ø 22mm.
Supplied with 1½" waste.
Without overflow.
Supplied with fixing brackets and fixings.
CE marked. Complies with European standard EN 14296.
Weight: 8.8kg.
Option to add a bacteriostatic 304 stainless steel splashback (ref. 100250).
CANAL wall-mounted wash trough
Ref. 120280
Wall-mounted wash trough for 3-4 posts - L. 1,800mm
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, light wash trough.
Drainage on the right.
With no tap hole.
Supplied with 1 ½" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 15.5kg.
Possible to add a bacteriostatic 304 stainless steel splashback (ref. 0011800005).
Floor-standing XL P disposal sink
Ref. 182070
Floor-standing disposal sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface is easy to clean.
Concealed perimetral flushing system.
Horizontal or vertical water inlet: Ø 55mm.
Horizontal or vertical water outlet: Ø 100mm.
Supplied with PVC pipe.
Concealed drainage: shrouded sink.
Quick and easy to install: 2 access panels
with theft prevention TORX security screws.
Hinged stainless steel bucket grid.
Weight: 16kg.
TECHNICAL FEATURES
Floor-standing XL P disposal sink
Ref. 182070
Height | 450mm |
---|---|
Length | 445mm |
Width | 410mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
