Delabie кухонный смеситель для профессиональной кухни 5625

Артикул: DE-5625
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1017,00 €
Кол-во: - +
   - или -

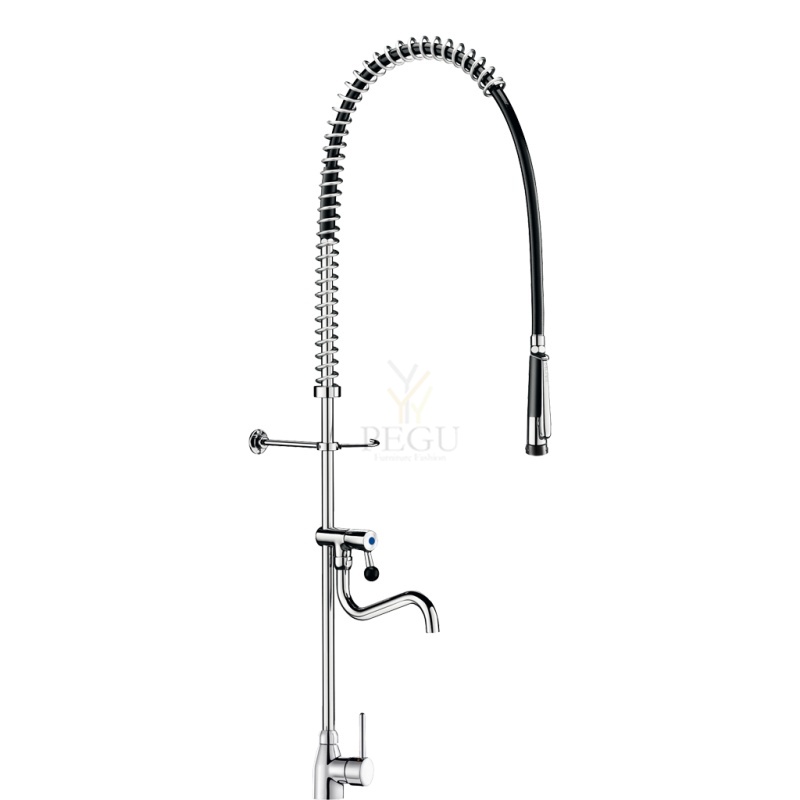

Pre-rinse set with mixer
Ref. 5625

Complete pre-rinse set with bib tap.
Single hole deck-mounted mixer with slimline control lever.
Supplied with F3/8" flexible hoses and non-return valves.
Bib tap with swivelling, tubular spout L. 200mm.
- 16 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism and ergonomic control.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade black flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

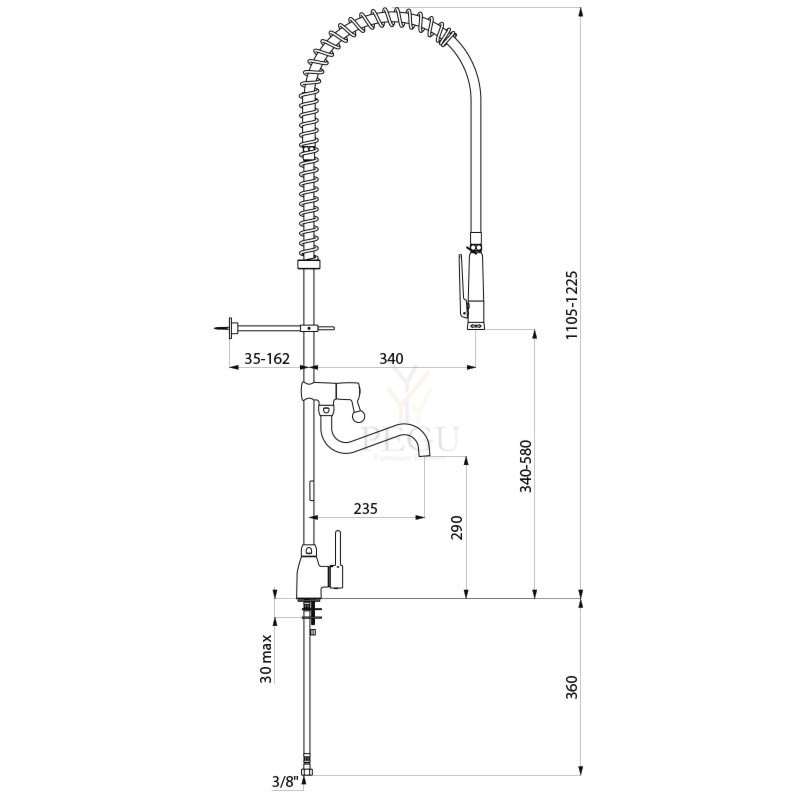

TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. 5625

Connector F3/8"
Height 1105-1225mm
Drop height 340 - 580mm
Flow rate 16 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Схожие продукты
Артикул: P70565 ,   Время доставки: 7-14 дней
505,00 €

Ref: 70818 - Column –deck-mounted mixer – rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Dimensions:

Maximum fixing height: 632 mm

> Model:

Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12 L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with :

1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540

Артикул: P70818 ,   Время доставки: 14-21 день
925,00 €

Ref: 70814 - Wall-mounted column with 2 holes– rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Wall version: facilitates cleaning and promotes optimal hygiene
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Model:

1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).

> Delivered with :

Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Артикул: P70814 ,   Время доставки: 14-21 день
617,00 €

Single hole single lever mixer with side clinic lever. 3/4“ male outlet

COMPOSITION

- Brass chromed tap
- Glass filled nylon clinical lever
- Ceramic disks cartridge
- With stainless steel flexible hoses 1/2" and non-return

valves

OPERATING CHARACTERISTICS
Operating pressure: Min 1 – max 6 bar

Water inlet temperature: 5 – 70 °C

Артикул: IDR-09490 ,   Время доставки: 14-21 день
122,40 € (15%)
144,00 €
