Delabie кухонный смеситель для профессиональной кухни 5630

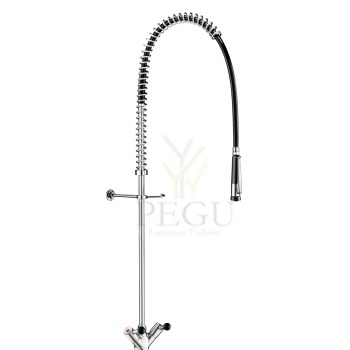

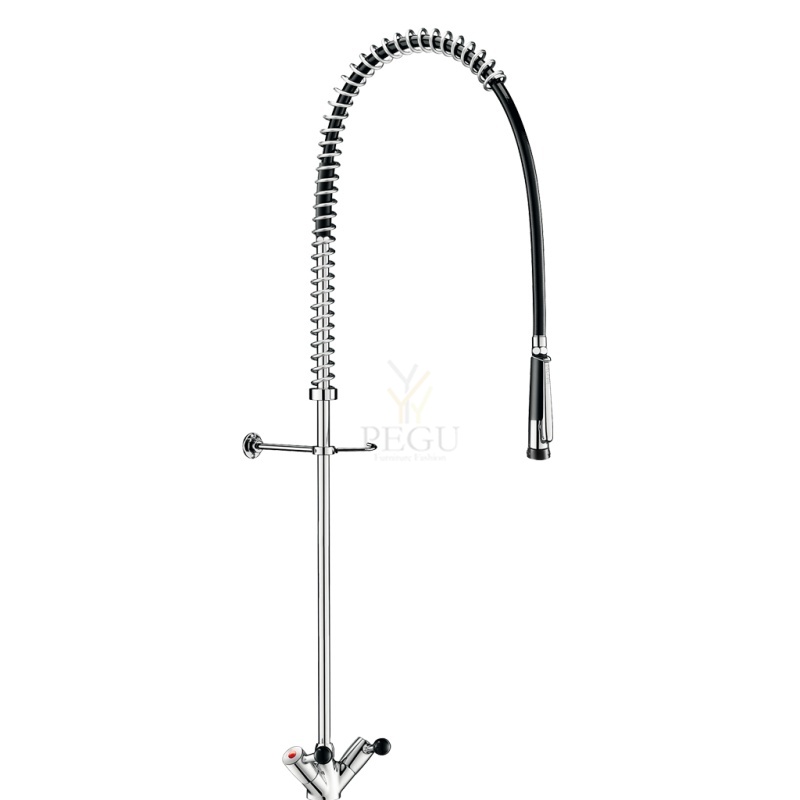

Pre-rinse set with mixer
Complete pre-rinse set without bib tap.
Deck-mounted single hole mixer with:
- Valve heads with reinforced mechanisms and ergonomic control levers.
- F3/8" flexibles and non-return valves.
- Reinforced fixing via 2 threaded rods with back-nuts.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

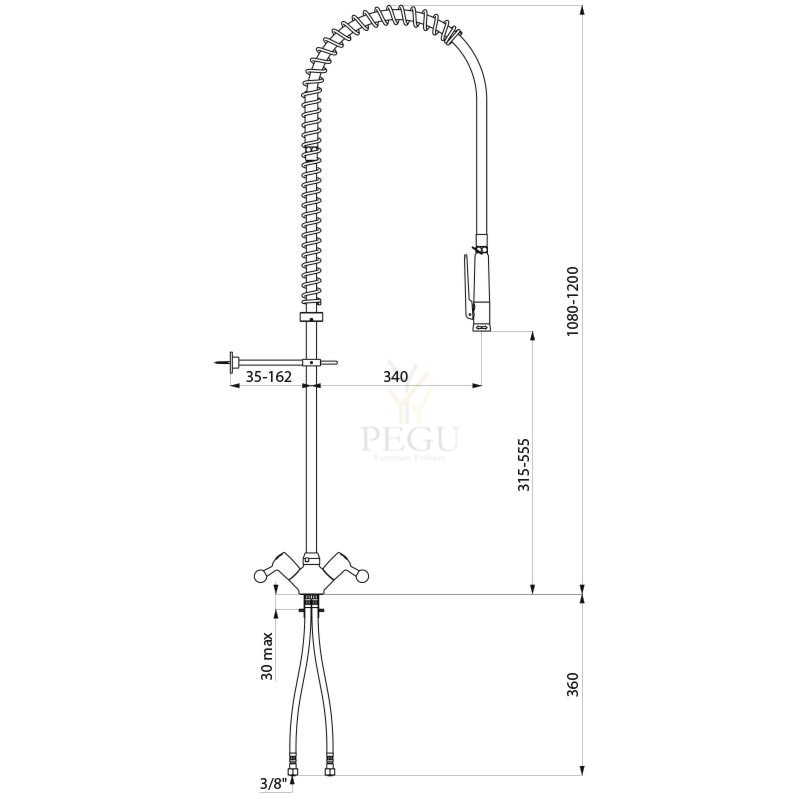

Pre-rinse set with mixer
|Flow rate||9 lpm|
|Width to the wall||35-162mm|
Deck-mounted single hole mixer - 45 lpm
Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 190mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.
Pressure-balancing mixer set and column with retracting hand spray
Ideal for babies' baths.
Anti-scalding safety: HW flow rate is reduced if CW supply fails.
Securitouch thermal insulation prevents burns.
Retracting hand spray with 2 jet options: flow straightener/rain effect.
Swivelling column H. 200mm L. 220mm.
Retracting hand spray with two jet options (flow straightener/rain effect)
Ø 35mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Mixer body and column with smooth interiors.
Flow rate 12 lpm at 3 bar.
Sculptured control lever.
Mixed water outlet L. 160mm.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose, smooth interior and exterior, low water volume (interior Ø 6mm).
Counterweight specific to flexible hose.
F⅜" PEX flexibles with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Ref: 70800 - Deck-mounted mixer – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: 22 mm in diameter
Ergonomic and robust control: easy grip
Robust mixing handle - possibility to install it laterally (installation flexibility)
Hygiene: spout with smooth interior
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever deck-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 276 mm, diameter 22 mm. Spout thickness: 1.5 mm. Ceramic cartridge
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
