Delabie кухонный смеситель для профессиональной кухни 6692

Артикул: DE-6692
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
800,00 €
Кол-во: - +
   - или -

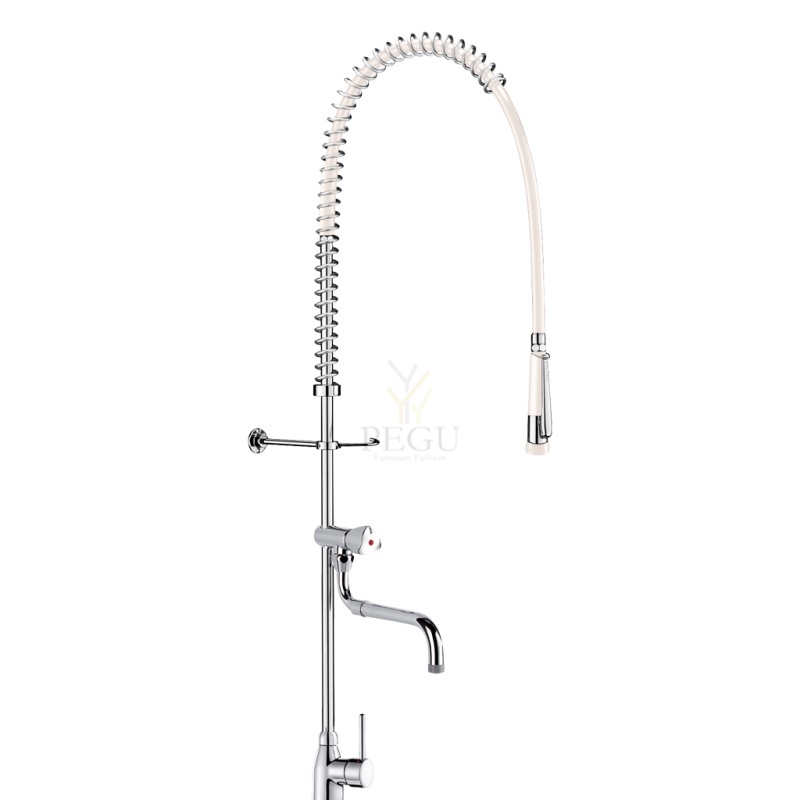

Pre-rinse set with mixer
Ref. 6692

Complete pre-rinse set with bib tap.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- Flow rate 16 lpm at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

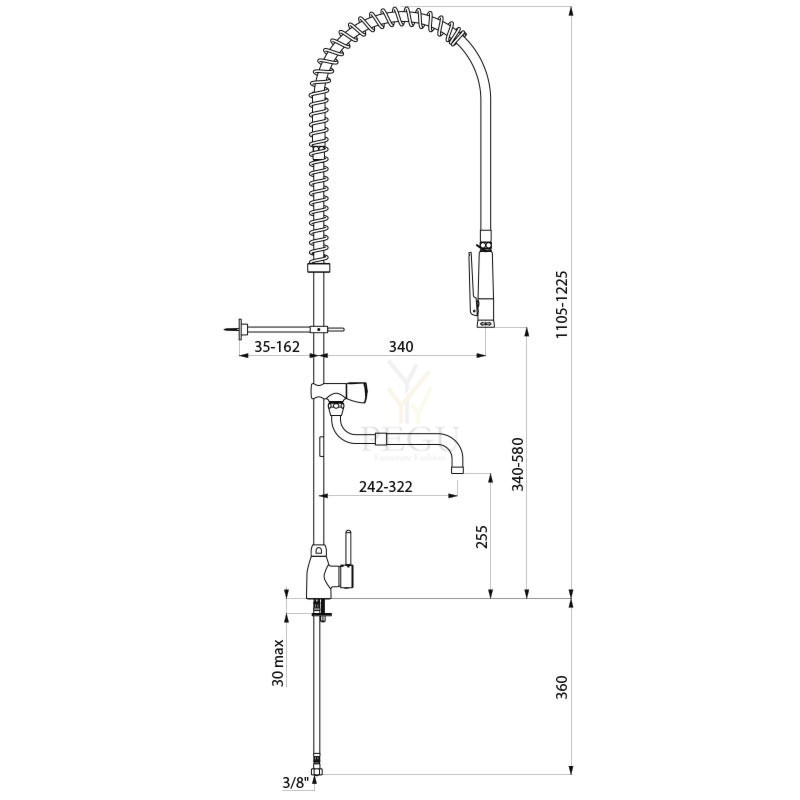

TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. 6692

Connector F3/8"
Height 1105-1225 mm
Drop height 340-580 mm
Flow rate 16 lpm
Width to the wall 35-162 mm
Finish Chrome-plated brass

Файлы

Схожие продукты
Артикул: P70556 ,   Время доставки: 7-14 дней
617,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
214,20 € (10%)
238,00 €

Stainless steel floor standing bulk sink, 700x700x850 mm



Characteristics

  • stainless steel bulk sink with supporting legs with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • available also in dimensions 600 x 600 x 850 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Order number 93150
Code SLUN 15
Артикул: SA-SLVN 01 ,   Время доставки: 3-5 недель
306,00 €

Wall-mounted pre-rinse set with mixer
Ref. G6432

Complete pre-rinse set with bib tap.
Wall-mounted F3/4" mixer with 150mm centres with:
- Valve heads with control knobs.
- Non-return valves integrated in the mixer.
Bib tap with:
- Telescopic, swivelling spout L. 200-290mm with 25 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable spray and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.





TECHNICAL FEATURES

Wall-mounted pre-rinse set with mixer
Ref. G6432

Connector F3/4"
Flow rate 25 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Артикул: DE-G6432 ,   Время доставки: 14-21 день
846,00 €

Ref: 70814 - Wall-mounted column with 2 holes– rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Wall version: facilitates cleaning and promotes optimal hygiene
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Model:

1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).

> Delivered with :

Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

Артикул: P70814 ,   Время доставки: 14-21 день
617,00 €
