Delabie кухонный смеситель для профессиональной кухни 6693

Артикул: DE-6693
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
625,00 €
Кол-во: - +
   - или -

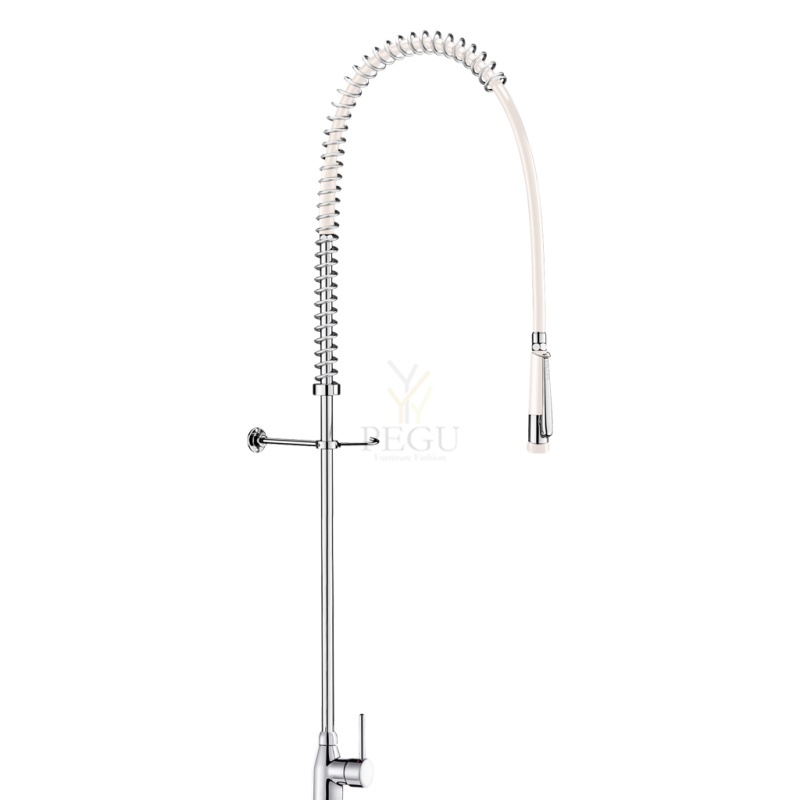

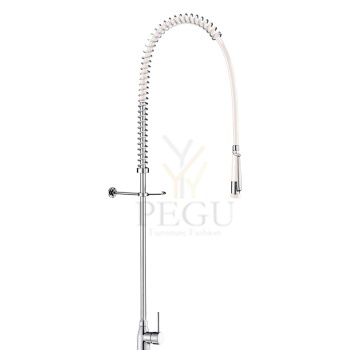

Pre-rinse set with mixer
Ref. 6693

Complete pre-rinse set without bib tap.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

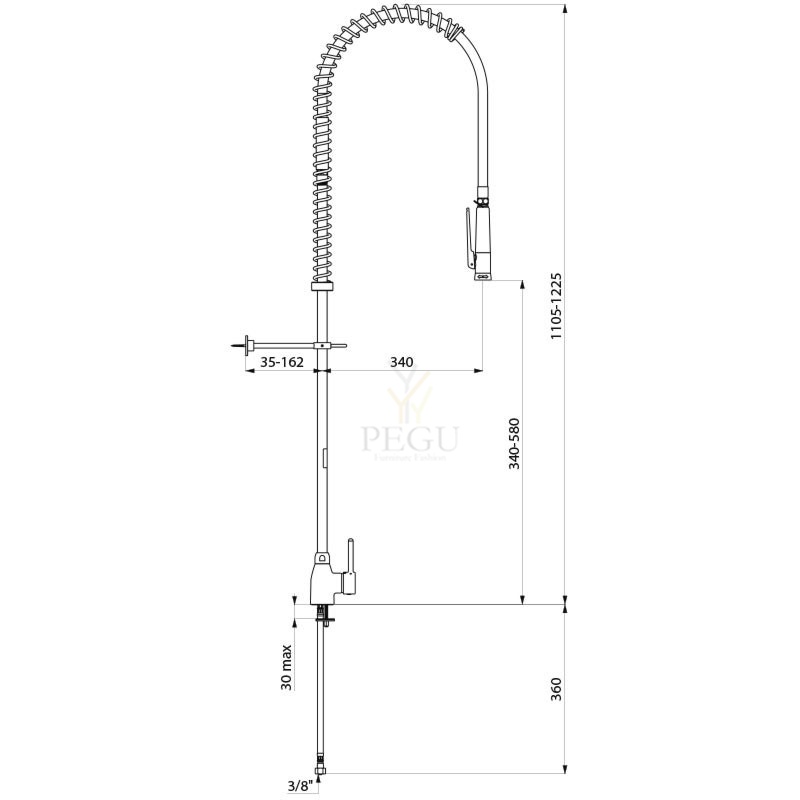

TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. 6693

Connector F3/8"
Height 1105-1225 mm
Drop height 340-580 mm
Flow rate 9 lpm
Width to the wall 35-162 mm
Finish Chrome-plated brass

Файлы

Схожие продукты
Артикул: P70556 ,   Время доставки: 7-14 дней
617,00 €
On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
214,20 € (10%)
238,00 €

Wall-mounted twin hole mixer - 60 lpm
Ref. 5645T2

Wall-mounted twin hole mixer with swivelling, tubular under spout Ø 22mm L. 200mm with star-shaped brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.

Артикул: DE-5645T2 ,   Время доставки: 7-14 дней
357,00 €

Twin hole pillar-mounted mixer - 100 lpm
Ref. 5603

Twin hole mixer, M3/4" with 150mm centres on pillar mounts for plunge sinks.
Swivelling, tubular spout Ø 22mm H. 380mm L. 300mm.
Star-shaped, brass flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant ergonomic ball levers.
Flow rate 100 lpm at 3 bar suitable for plunge sinks.
Full flow rate within the first 90°.
Spout with smooth interior.
One-piece body and spout in chrome-plated brass.
Reinforced fixings and recessed inlets.

Артикул: DE-5603 ,   Время доставки: 7-14 дней
885,00 €

Pre-rinse set with mixer
Ref. G6632

Complete pre-rinse set with bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- 20 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.



TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. G6632

Connector F3/8"
Height 1105 - 1225mm
Drop height 90 - 330mm
Flow rate 20 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Артикул: DE-G6632 ,   Время доставки: 14-21 день
891,00 €
