Delabie кухонный смеситель для профессиональной кухни G6632

Артикул: DE-G6632
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
891,00 €
Кол-во: - +
   - или -

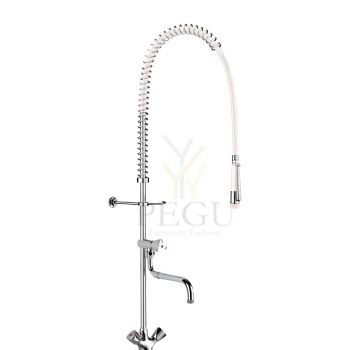

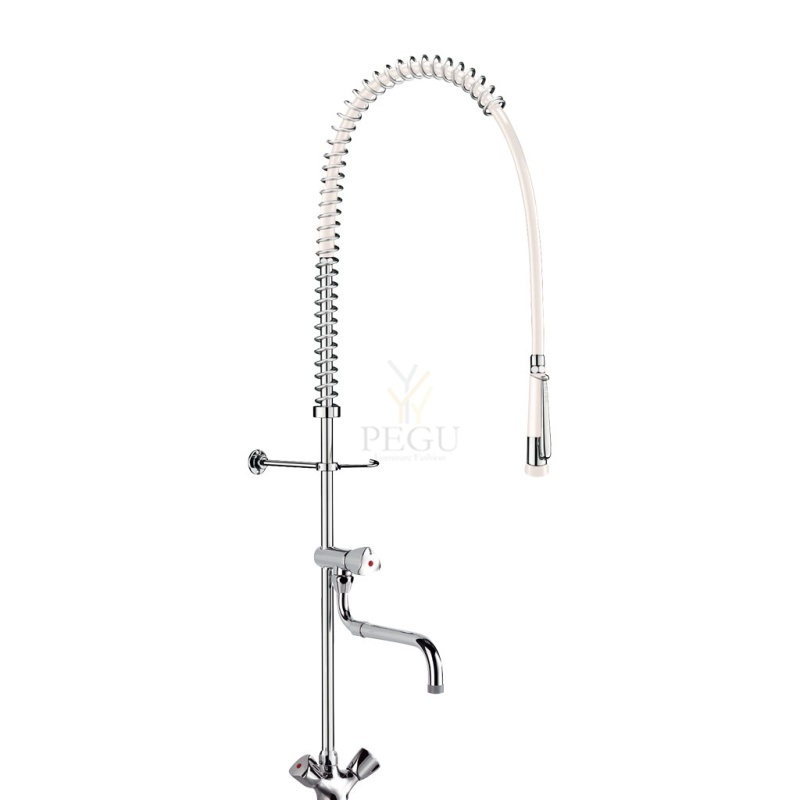

Pre-rinse set with mixer
Ref. G6632

Complete pre-rinse set with bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- 20 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

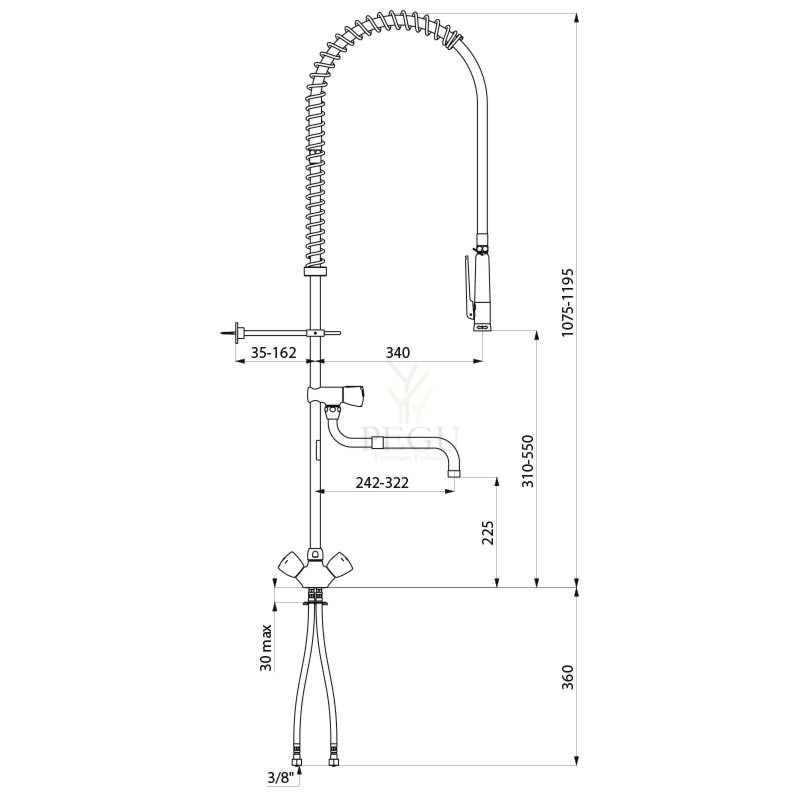

TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. G6632

Connector F3/8"
Height 1105 - 1225mm
Drop height 90 - 330mm
Flow rate 20 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass

Файлы

Схожие продукты
Артикул: P70573 ,   Время доставки: 7 дней
71,00 €

Deck-mounted single hole mixer - 45 lpm
Ref. 5640T3

Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 190mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.

Артикул: DE-5640T3 ,   Время доставки: 7-14 дней
366,00 €

Twin hole pre-rinse set with mixer
Ref. 5680

Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. 5680

Connector M1/2"
Height 1110 - 1230mm
Drop height 345 - 585mm
Flow rate 9 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Артикул: DE-5680 ,   Время доставки: 14-21 день
923,00 €

Twin hole pre-rinse set with mixer
Ref. G6532

Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Telescopic, swivelling spout L. 200-290mm with 25 lpm flow rate at the outlet.
- Valve head with control knob.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.





TECHNICAL FEATURES

Twin hole pre-rinse set with mixer
Ref. G6532

Connector F3/8"
Height 1125 - 1245mm
Drop height 360 - 600mm
Flow rate 25 lpm
Width to the wall 35-162mm
Finish Chrome-plated brass
Артикул: DE-G6532 ,   Время доставки: 14-21 день
931,00 €

Ref: 70810 - Column – deck-mounted mixer – rinsing head



> THE PRODUCT BENEFITS

Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts

> TECHNICAL SPECIFICATIONS > Dimensions:

Maximum fixing height: 632 mm

> Model:

Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right

> Recommended working pressure:

1 to 5 bars

> Shower flow:

12 L /min at 3 bar

> Hydraulic supply:

G 1/2 '' (15x 21)

> Material and color of finish:

Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list

> Thermal resistance :

Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).

> Delivered with :

1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower

> Standards and approvals:

Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540

Артикул: P70810 ,   Время доставки: 14-21 день
761,00 €
