Delabie кухонный смеситель для профессиональной кухни G6633

Артикул: DE-G6633
Бренд:

Единица: шт
Время доставки: 14-21 день

«Мои вкусы просты: я легко довольствуюсь лучшим».

kuumaks al. 66,30 €

Цена:

780,00 €

Kuumakse alates: 66,30 €

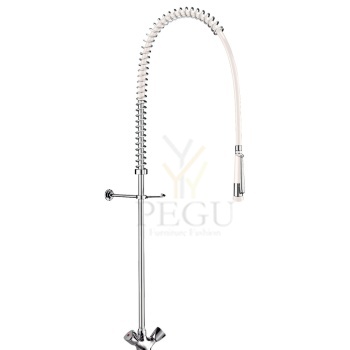

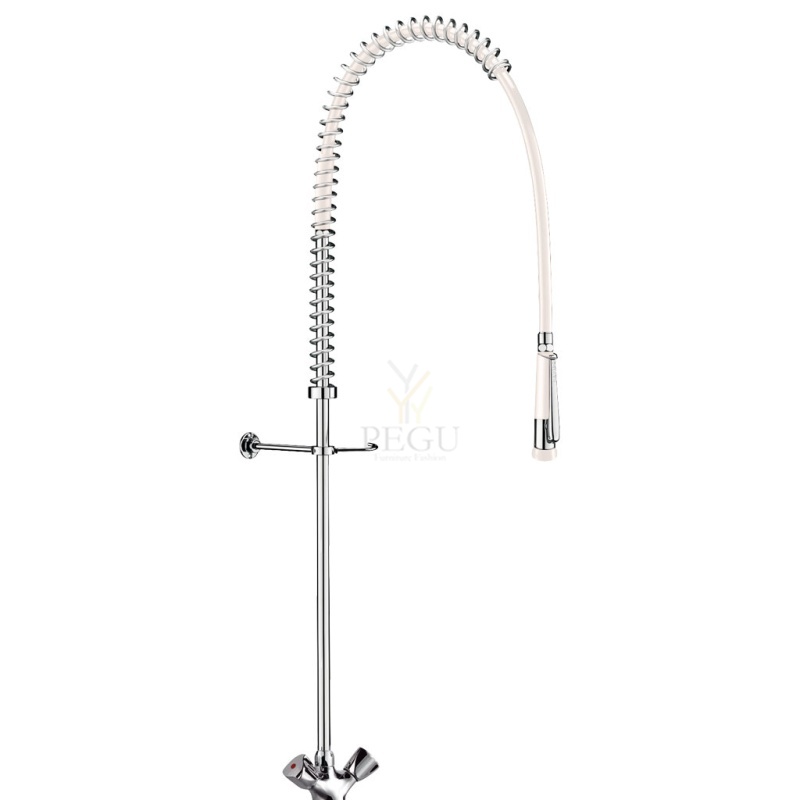

Pre-rinse set with mixer
Ref. G6633

Complete pre-rinse set without bib tap.
Single hole deck mounted mixer with:
- Valve head with control knob.
- F3/8" flexible connectors and non-return valves.
- Reinforced fixing via 2 threaded rods and back-nuts.
White, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

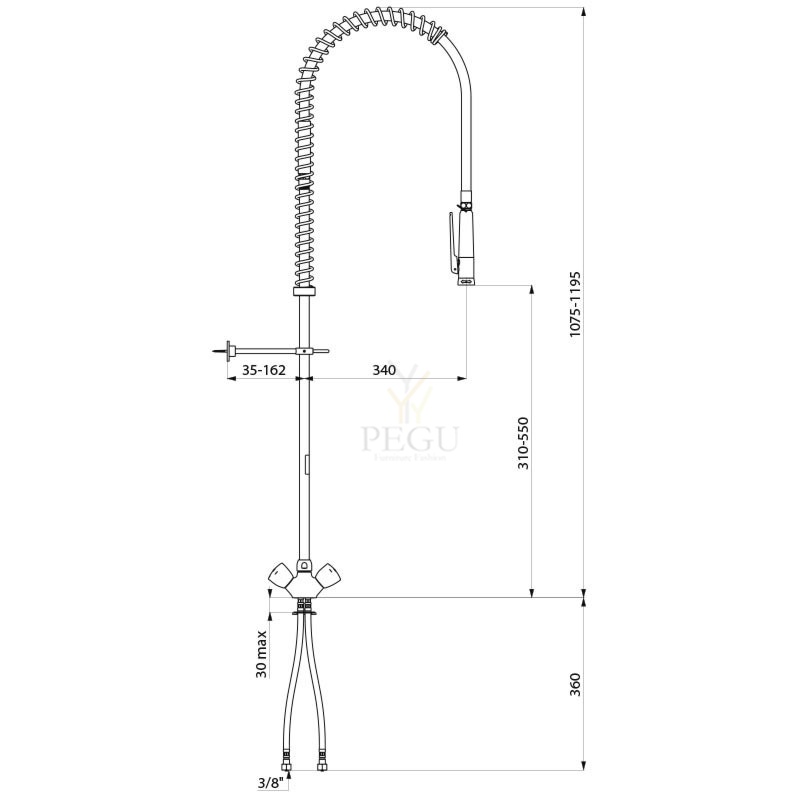

TECHNICAL FEATURES

Pre-rinse set with mixer
Ref. G6633

Connector	F3/8"
Height	1105 - 1225mm
Drop height	310 - 550mm
Flow rate	9 lpm
Width to the wall	35-162mm
Finish	Chrome-plated brass

Файлы

G6633.pdf

Схожие продукты

Nicolazzi кухонный смеситель. P.Mont Blank ручка, Бронза

Köögisegisti

Keraamilise käepidega.

P.Mont Blank

Pronks viimistlusega BZ

Артикул: N3407BZ76 , Время доставки: 7 недель

496,00 €

Добавить к желаемым

Сравнить

Soodus

Damixa Clover кухонный смеситель, хром, с высокой трубой

Артикул: D6007700 , Время доставки: 7 дней

148,75 € (15%)
175,00 €

Добавить к желаемым

Сравнить

Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm

	PV 01 stainless steel floor trap

PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!

Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable

Basic technical information
Minimum inner diameter:	70 mm
Diameter of connecting sewerage pipe:	75 mm
Water flow:	min. 50 lts / min
Loading class:	K3
Weight:	2,2 kg

Complete delivery
Trap body Grid with braz cover Hook to pull up the grid

Requirements for setting up the construction
Completed sewerage drains terminated by DN 75 coupling Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm
