Delabie professionaalse köögisegistile pihusti-otsik 1/2" valge 433000 Zoom

Delabie лейка-наконечник 1/2" для профессионального кухонного смесителя белый

Артикул: DE-433000
Бренд:
Единица: шт
Время доставки: 7-14 дней
Цена:
167,70 €
Kuumakse alates: 14,25 €
Кол-во: - +

Delabie лейка-наконечник 1/2" для профессионального кухонного смесителя белый

Delabie professionaalse köögisegistile pihusti-otsik 1/2" valge

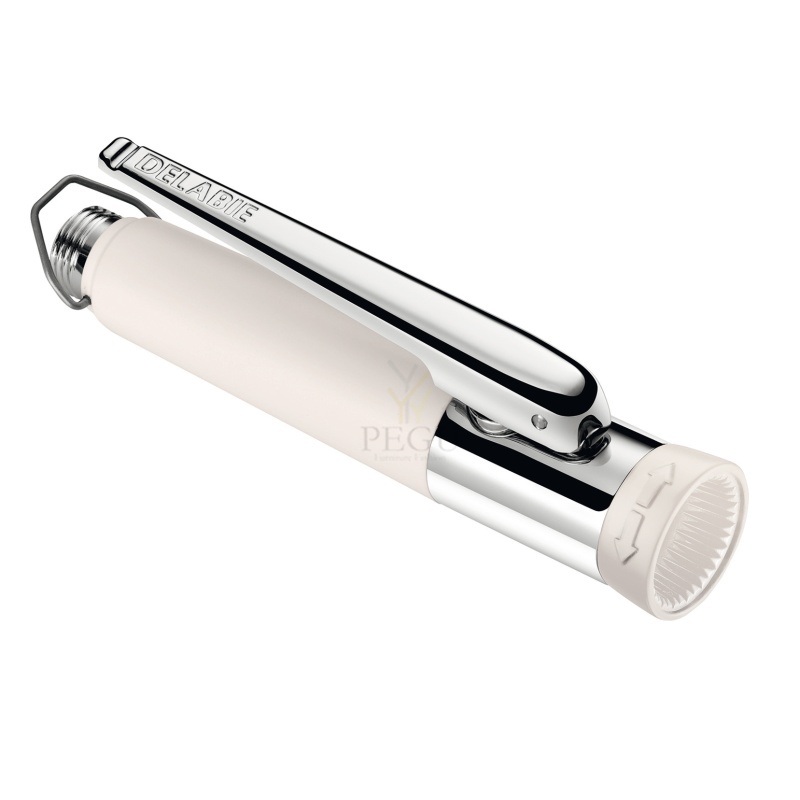

White M1/2" hand spray

Ref. 433000

White hand spray with adjustable jet and shock-resistant tip.
Scale-resistant diffuser (nozzle has no mesh).
Two jet options: rain effect - 8 lpm at 3 bar and concentrated jet - 9 lpm at 3 bar.
Reinforced polypropylene handle with non-slip grip (improved grip).
Chrome-plated solid brass.
Hand spray can be locked in open position using integrated collar.

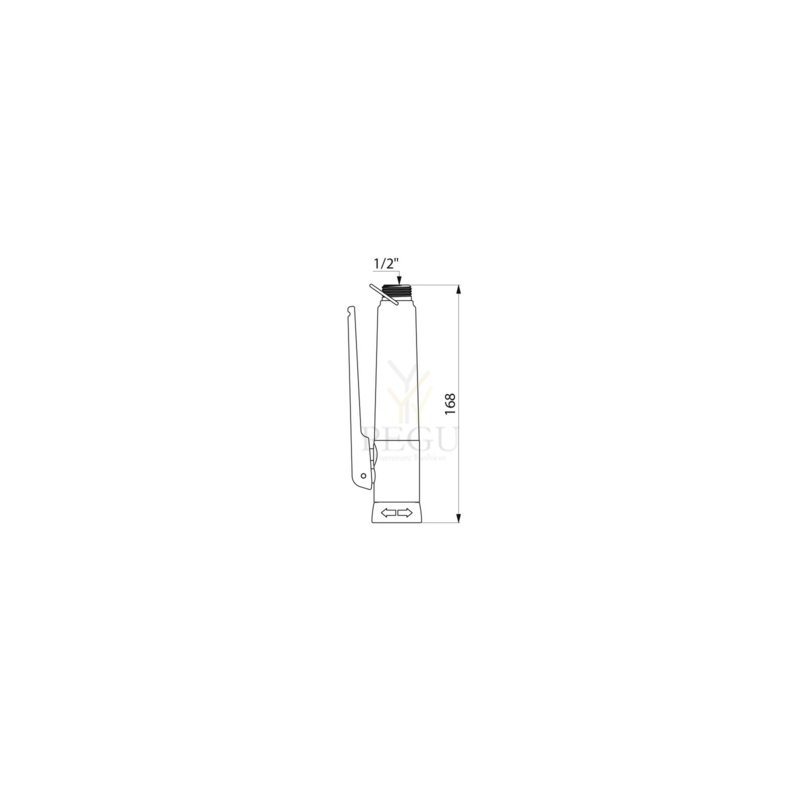

TECHNICAL CHARACTERISTICS

White M1/2" hand spray

Ref. 433000
Connector M1/2"
Height 168mm
Flow rate 8 - 9 lpm
Finish Polypropylene
Схожие продукты

1/2" keermega bidee otsik, kinnitus on komplektis

Артикул: D9305700 ,   Время доставки: 7 дней ,   Viimistlus:
54,89 € (10%)
60,98 €

Duhsivoolik 1/2"-1/2", plastik 1500mm , kroom

Артикул: D7665000 ,   Время доставки: 7 дней ,   Viimistlus:
39,33 € (10%)
43,70 €
Артикул: D2320600 ,   Время доставки: 7 дней ,   Viimistlus:
81,41 € (10%)
90,46 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели ,   Viimistlus:
429,93 €
Артикул: P01031 ,   Время доставки: 7-14 дней ,   Viimistlus:
96,56 €
