Delabie напольный питьевой фонтан Delabie ILHA JR Н/Р сталь

Артикул: DE-180110
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
969,00 €
Kuumakse alates: 82,37 €
Кол-во: - +
   - или -

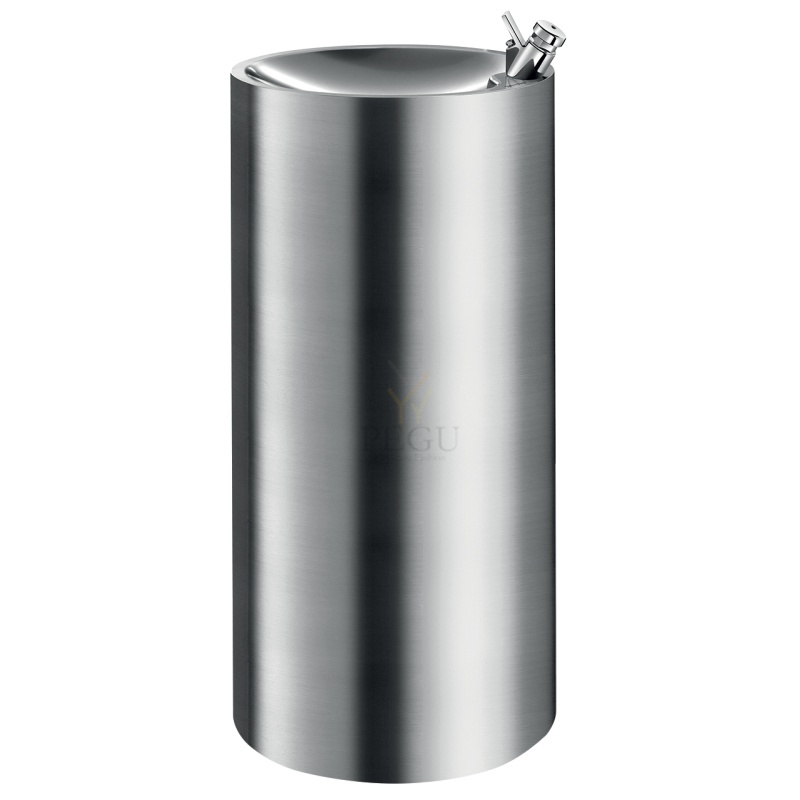

Delabie напольный питьевой фонтан Delabie ILHA JR Н/Р сталь

Delabie Joogifontöön ILHA JR H-800mm R-V teras

Floor-standing ILHA JR drinking fountain

Ref. 180110

Floor-standing drinking fountain.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.5mm.
Height: 800mm for children.
Supplied with bubbler tap: chrome-plated, instant shut-offand adjustable flow rate, inlet M⅜".
Flat perforated waste, without screws: easy to clean and vandal-resistant.
Recessed vertical water outlet. Waste outlet 1¼".
Weight: 9kg.

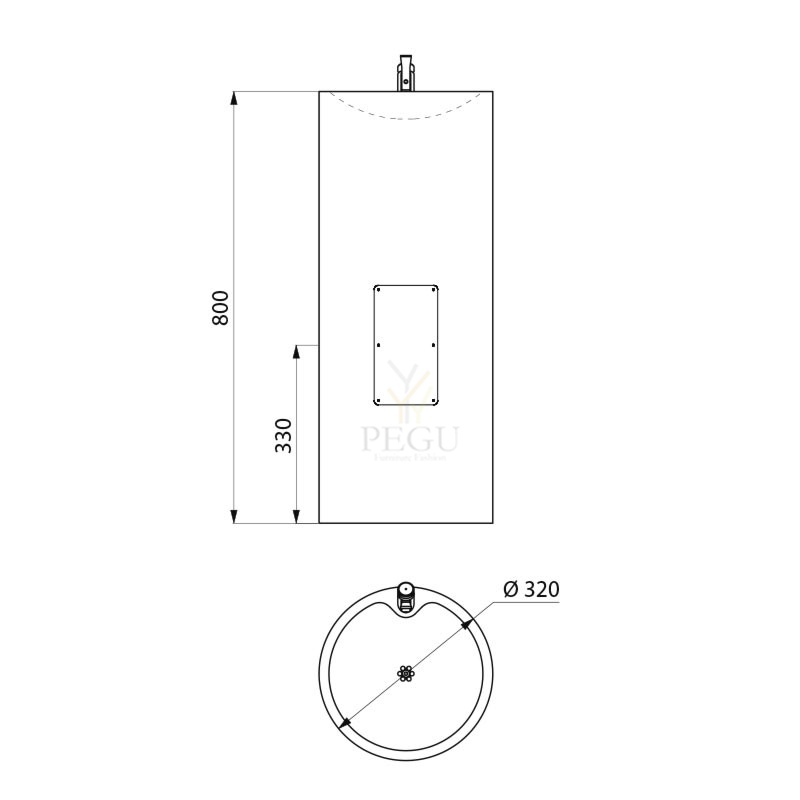

TECHNICAL CHARACTERISTICS

Floor-standing ILHA JR drinking fountain

Ref. 180110
Height 800mm
Length 320mm
Width 320mm
Thickness 1.5mm
Finish 304 polished satin stainless steel



Схожие продукты

Хозяйственная раковина Intra VK50STD  555x455x230 настенная.

Wall hung utility sink in stainless steel. Supplied with fixing brackets.

Артикул: I-VK50STD ,   Время доставки: 7-14 дней
305,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €

> Working pressure: 1 to 5 bar

> Flow: 1.9 l/min with flow regulator Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: G 1/2'' x 40

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 1 Filter gasket 1 base gasket 1 fixture nut + 1 stainless steel washer 1 Nut for 12x14 tube 1 rubber flat gasket 1 coloured sticker

> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Артикул: P64704 ,   Время доставки: 7-14 дней
197,60 € (5%)
208,00 €

> Working pressure: 1 to 5 bar

> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow With temperature limiter (at 38°C for cold water at 15°C/3 bar and hot water at 60°C/3 bar)

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Installation: Cross-partition Wall thickness: 0 to 50 mm

> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Артикул: P68056 ,   Время доставки: 7-14 дней
361,95 € (5%)
381,00 €
