Delabie настенная часть dual control electronic battery-operated WC вентиля RST 464006
Бренд:
Единица: шт
Время доставки: 14-21 день
Добавьте товар в корзину и выберите удобную доставку. Покупка без регистрации!⚡
ℹ️ Цена включает налог с оборота (KM).
▼ Читать далее: ...
✅ Популярные товары в наличии на складе в Таллине — доставка 1–3 дня или самовывоз.
✅ Если товар под заказ, уточните детали — часто мы можем предложить доставку быстрее ожидаемого: info@pegu.ee
✅ На все товары действует гарантия 2 года и право на возврат 14 дней.
✅ Автоматическая отправка счета на e-mail. Для e-arve добавьте пометку в комментариях.
ℹ️ Цена включает налог с оборота (KM).
PEGU OÜ — Usaldusväärne ettevõte 2025
Delabie настенная часть dual control electronic battery-operated WC вентиля RST 464006
Delabie süvistatav dual control electronic battery-operated WC ventiil RST

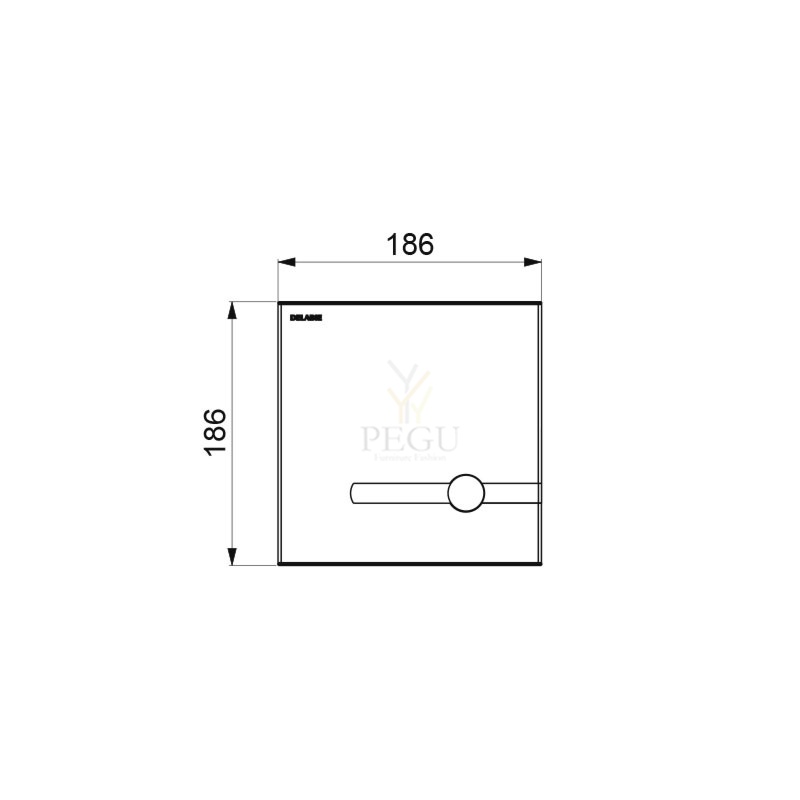

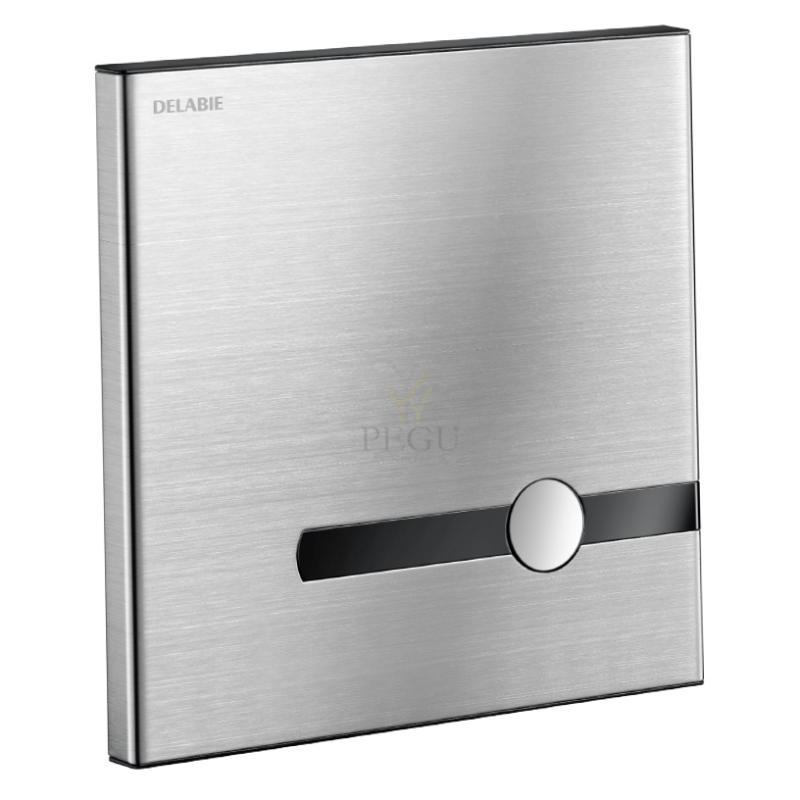

TEMPOMATIC dual control plate for WCs
Ref. 464006
Flush system without cistern: directly connected to pipework.
Battery-operated with CR123 6V Lithium batteries.
Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button, with integrated electronics.
TEMPOMATIC F¾" flush valve is compatible with sea water, rain water and grey water.
Shock-resistant infrared presence detection sensor.
Detection delay is 10 seconds.
Voluntary activation (anti-blocking push-button) or automatically without contact when the user leaves.
Independent push-button: the flush will activate even if the power supply fails.
"Intelligent" automatic rinsing: flush volume adapts according to use - 3L "short" usage, 6L "long" usage - (can be adjusted to 2L/4L or 5L/9L).
3 programmes (rinsing volume can be set according to type of WC pan).
Hygienic duty flush every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
Base flow rate: 1L/sec at 1 bar dynamic pressure.
Suitable for rimless WC pans without flow rate regulation and suitable for people with reduced mobility.
Order with frame system references 564060DE or 564065DE, or with recessed housing 464PBOX.
TECHNICAL CHARACTERISTICS
TEMPOMATIC dual control plate for WCs
Ref. 464006| Supply | 6V batteries |
| Connector | F¾" |
| Technology | Electronic and time flow |
| Length | 186mm |
| Width | 186mm |
| Finish | Satin stainless steel |
Delabie TEMPOMATIC WC вентиль 3/4" встраеваемая база 6V bat kit 1/2 (+464006) 464PBOX
Delabie TEMPOMATIC WC ventiil 3/4" seina süvistav baas 6V bat kit 1/2 (liskas on vaja DE-464006)
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOX
Flush system without cistern: directly connected to pipework.
Compatible with electronic WC valve.
CR123 6V Lithium battery-operated.
Collar with waterproof seal.
Hydraulic connection to the outside and maintenance from the front.
Adjusts to all types of installation (rails, solid walls, panels).
Compatible with wall finishes from 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
Suitable for standard or "pipe-in-pipe" supply.
Stopcock and flow rate adjustment, activation and electronic unit are all integrated and accessible from the front.
Backflow prevention device inside the housing.
Secure system flush without sensitive elements.
Outlet connection for PVC tube Ø26/32mm.
Order with control-plate reference 464006.
TECHNICAL CHARACTERISTICS
Recessed waterproof housing for TEMPOMATIC dual control WC
Ref. 464PBOX| Connector | F¾" |
| Technology | Electronic and time flow |
| Height | 150mm |
| Depth | 93 to 190mm |
| Width | 225mm |
286,00 €
Delabie KOMPACT Combi HW/CW WC + раковина симметричный напольный антивандальный Н/Р сталь AISI304 161800
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800
Combination unit: washbasin and floor-standing central WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.
TECHNICAL FEATURES
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161800
| Height | 1000mm |
|---|---|
| Length | 850mm |
| Width | 400mm |
| Thickness | 2mm |
| Finish | Polished satin 304 stainless steel |
4761,00 €
Delabie KOMPACT TC WC + раковина справа напольный антивандальный Н/Р сталь AISI304 166700
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130007]
TECHNICAL FEATURES
KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700
| Height | 1000mm |
|---|---|
| Length | 615mm |
| Width | 725mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
4583,00 €
Delabie KOMPACT WC с бачком + раковина справа напольный антивандальный Н/Р сталь AISI304 162700
KOMPACT washbasin and floor-standing WC combination
Ref. 162700
Washbasin combination unit with cistern, floor-standing WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M1/2".
WC fitted with 6-litre cistern.
Water inlets: washbasin M1/2", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
TECHNICAL FEATURES
KOMPACT washbasin and floor-standing WC combination
Ref. 162700
| Height | 1000mm |
|---|---|
| Length | 735mm |
| Width | 725mm |
| Thickness | 2mm |
| Finish | Polished satin 304 stainless steel |
5312,00 €
WC рама + с сенсорным управлением слива TEMPOMIX 3 Delabie 564005-464000
DESCRIPTION
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000
Please contact the sales office to check availability.
- Black powder-coated steel frame.
- Fixes to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- PVC soil pipe, Ø 100mm outlet to be glued to waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid walls from 10 - 120mm.
- 10-year warranty.
Fitted with a TEMPOMATIC dual control F¾" electronic direct flush valve:
- 230/6V mains supply (cable and transformer supplied).
- Satin finish stainless steel wall plate 186 x 186mm and chrome-plated metal button with integrated electronics.
- Waterproof recessing housing.
- Detection delay is 10 seconds.
- Voluntary activation (push-button with anti-blocking) or automatically when the user leaves.
- "Intelligent" automatic rinsing (flush volume adapts according to use).
- 3 programmes (rinsing volume can be set according to type of WC pan).
- Hygienic duty flush, every 24 hours (can be adjusted to 12 hours or OFF) after the last use.
- Backflow prevention device inside the housing.
- Integrated stopcock and flow rate adjuster.
- Compatible with sea water and grey water.
Technical characteristics: see TEMPOMATIC dual control ref. 464SBOX-464000.
Kit contents:
(564005): frame system, soil pipe Ø 100mm, flush tube, recessed housing with cover, valve configured for system flush, vacuum breaker, stopcock, connection accessories.
(464000): control plate, transformer, collar for waterproofing, solenoid valve, cartridge.
TECHNICAL CHARACTERISTICS
TEMPOFIX 3 self-supporting frame system with electronic WC valve
Ref. 564005-464000| Supply | Mains supply 230/6V |
| Connector | ¾" |
| Technology | Electronic and time flow |
| Height | 1000 - 1320mm |
| Depth | 177mm |
| Width | 350mm |
| Finish | Satin finish stainless steel |
1614,00 €
Рама для унитаза TEMPOFIX 3 с электронным бесконтактным смывом для унитаза Delabie 547105
Самонесущая система инсталляции премиум-класса с сенсорным управлением TEMPOFIX 3 (Артикул 547105) — это высоконадежная самонесущая рама для подвесных унитазов, укомплектованная встроенным электронным клапаном прямого смыва TEMPOMATIC F1". Главная особенность системы — отсутствие смывного бачка (подключение идет напрямую к водопроводу), что исключает застой воды, обеспечивает высокую гигиеничность, антивандальную защиту и экономию пространства. Подходит для использования людьми с ограниченными возможностями.
Преимущества рамы и конструкции:
-
Максимальная прочность: Стальная рама с черным порошковым покрытием оснащена массивными опорными ножками для надежной фиксации к несущему полу.
-
Гибкая регулировка: Высота рамы регулируется от 0 до 200 мм (имеется отметка 1 метр для точного монтажа). Глубина регулируется в пределах 157–177 мм.
-
Универсальность: Подходит для финишной отделки стен толщиной от 70 до 210 мм. Идеально совместима с безободковыми унитазами (rimless).
-
Легкий монтаж: Поставляется в предварительно собранном (микшированном) виде, что значительно сокращает время установки.
Преимущества электронной системы смыва TEMPOMATIC:
-
Абсолютная гигиена: Бесконтактный инфракрасный датчик присутствия в антивандальном исполнении. Смыв активируется либо добровольно (при поднесении руки на расстояние ~4 см), либо автоматически после ухода пользователя.
-
Экономичность и настройка: Время подачи воды по умолчанию составляет ~7 секунд (настраивается от 3 до 12 секунд). Дистанция обнаружения и объем смыва также регулируются. Базовый расход: 1 л/сек при динамическом давлении 1 бар.
-
Надежность электроники: Питание от сети 230/12В (трансформатор в комплекте). Автономный электронный блок имеет класс защиты IP65. Лицевая панель устанавливается заподлицо со стеной.
-
Экологичность: Система полностью совместима с использованием дождевой воды.
Технические характеристики:
-
Тип питания: От сети 230/12В
-
Подключение к водопроводу: 1" (электромагнитный клапан)
-
Технология: Электронная (инфракрасный сенсор)
-
Высота: 1000 - 1320 мм
-
Ширина: 350 мм
-
Глубина: 157 - 177 мм
-
Сливная труба: Ø 100 мм (ABS) с водонепроницаемым уплотнением (2 положения настройки)
-
Смывная труба: Ø 32 мм с соединительной манжетой Ø 55 мм
Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105
- Black powder-coated steel frame.
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- Ø 100mm ABS soil pipe with waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid wall finishes from 70 - 210mm.
Fitted with a TEMPOMATIC F1" electronic direct flush valve:
Flush system without cistern: directly connected to pipework
- Mains supply with 1" solenoid valve.
- 230/12V transformer.
- IP65 independent electronic unit.
- Wall plate flush to the wall.
- Shock-resistant infrared presence detection sensor.
- Voluntary activation (when hand is detected ~4cm in front of the sensor) or automatic flush (when the user leaves).
- Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
- Detection distance and flow rate/volume can be adjusted.
- Base flow rate 1 L/sec at 1 bar dynamic pressure.
- Compatible with rain water.
Technical characteristics: see TEMPOMATIC WC ref. 463150.
Suitbale for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility.
Connector 1"
Technology Electronic
Height 1000 - 1320mm
Depth 157 - 177mm
Width 350mm
1945,00 €
