Delabie раковина DUO S TC L нержавеющая сталь сатин

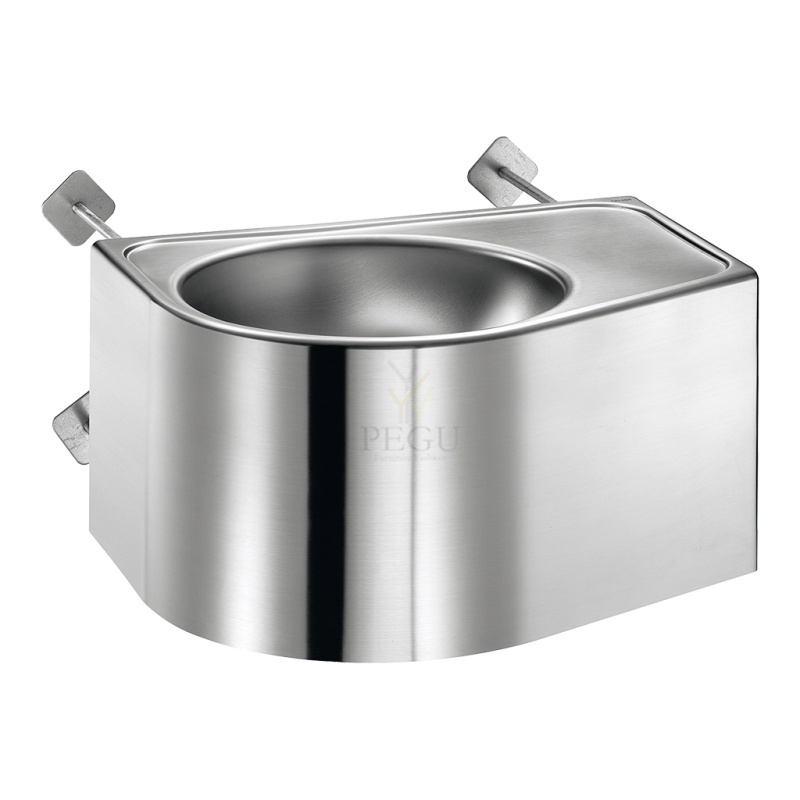

DUO S TC L washbasin
Wall-mounted washbasin with through-the-wallinstallation for service ducts.
Left hand basin.

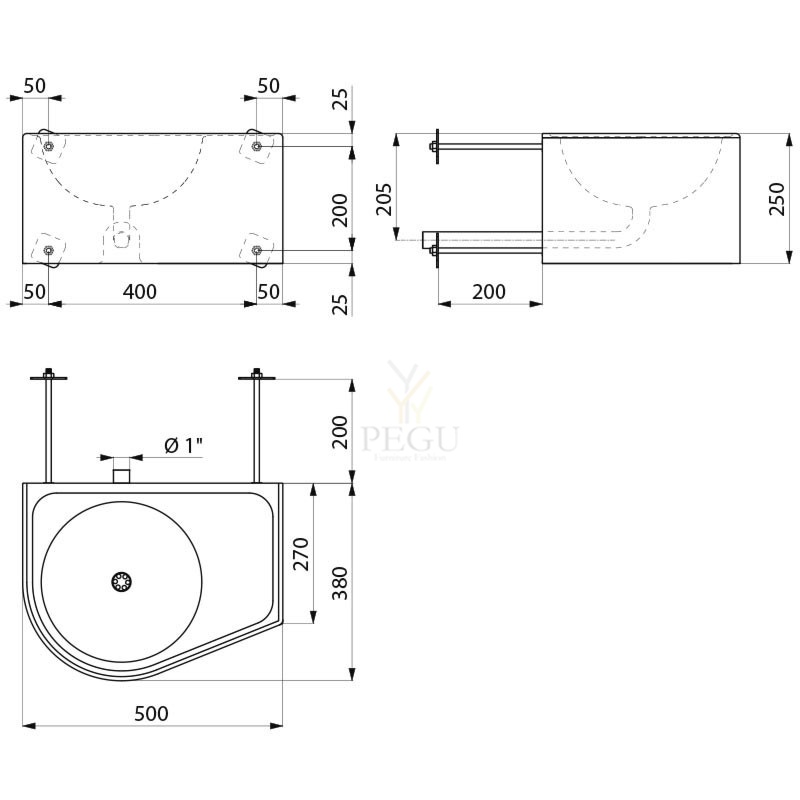

Basin internal diameter: 310mm. Polished satin finish. Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths are available on request).
Recessed horizontal waste outlet Ø 1".
Flat perforated waste, without screws:
easy cleaning and vandal-resistant.
Without overflow. Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
|dimensions||330 x 900 x 365 mm|
|water outlet||d = 40 mm|
|water inlet||G 1/2"|
|water pressure||0,2 – 0,6 MPa, recommended 0,3 MPa|
|power supply||230 V, 50 Hz|
|power input||820 W|
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
> Working pressure : 1 to 5 bar
> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design
> Flow time : From 7 to 9 seconds
> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm
> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish
> Security : Anti-siphonic device
> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
