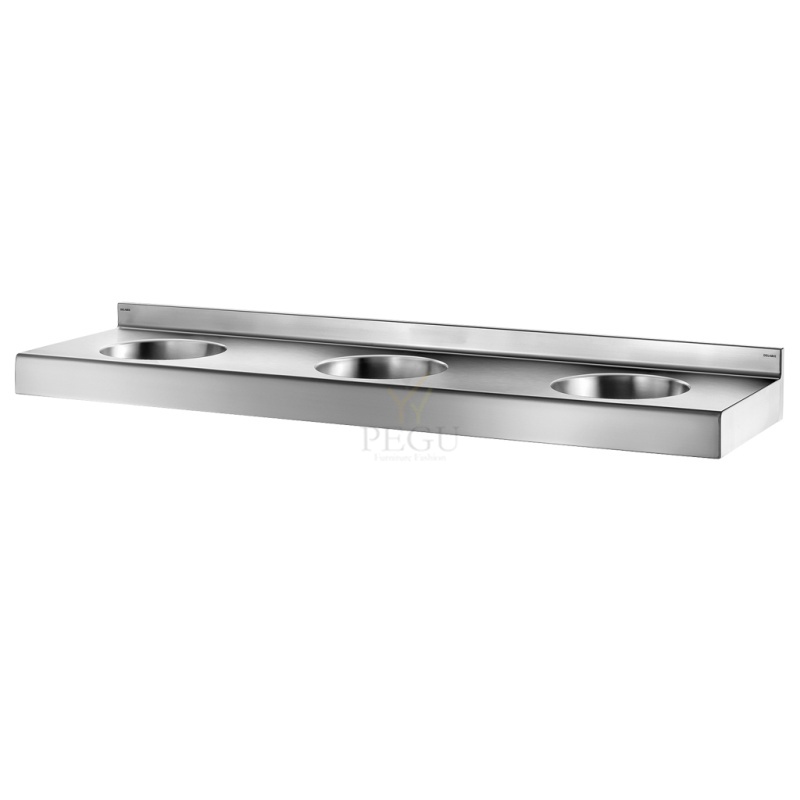

Delabie valamu TRIPLO RP pesurenn 1800x500mm segistiavaga d35mm roostevaba teras satiin 121750 Zoom

Delabie раковина коллективная TRIPLO RP 1800x500mm с отверстиями под смеситель d35mm нержавеющая сталь сатин 121750

Артикул: DE-121750
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
2220,82 €
Kuumakse alates: 188,77 €
Кол-во: - +

Delabie раковина коллективная TRIPLO RP 1800x500mm с отверстиями под смеситель d35mm нержавеющая сталь сатин 121750

TRIPLO RP wall-mounted multiple washbasin
Ref. 121750

Wall-mounted triple washbasin, 1,800x500mm.
With a splashback to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 22kg.

Файлы

Схожие продукты

Раковина с ножками 1200x700, высота 850mm , Н/Р сталь SLUN16

Раковина с ножками 1200x700, высота 850mm , Н/Р сталь

Stainless steel floor standing bulk sink, 700x700x850 mm



Characteristics

  • stainless steel bulk sink with supporting legs with a sheating
  • without a tap hole (could be made to order)
  • possibility of fine plane regulation by the regulation screws on the supporting legs
  • available also in dimensions 600 x 600 x 850 mm
  • material CrNi 18/10 (AISI-304)
  • brushed finish
  • different dimensions could be made to order
Order number 93150
Code SLUN 15
Артикул: SA-SLUN16 ,   Время доставки: 3-5 недель ,   Viimistlus:
3045,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели ,   Viimistlus:
381,15 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели ,   Viimistlus:
106,72 €

WC комплект TEMPOFLOX TC200 3/4" Delabie 761200

DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200

Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.

Soft-touch operation. Time flow ~7 sec.

Vacuum breaker.

Integrated stopcock and flow/volume rate adjuster.

Solid brass body and chrome-plated push-button.

In-line inlet M3/4".

Connection washer Ø 32/55mm.

For walls ≤ 200mm, without tube.



Connector 3/4"
Length 200mm



Артикул: DE-761200 ,   Время доставки: 7-21 день ,   Viimistlus:
360,82 €

Delabie раковина REDO 121710, Н/Р сталь AISI304 121710

REDO wall-mounted washbasin
Ref. 121710

Wall-mounted washbasin.
Basin internal diameter: 320mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With central tap hole Ø 35mm.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.



TECHNICAL FEATURES

REDO wall-mounted washbasin
Ref. 121710

Height 150mm
Length 375mm
Width 430mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Артикул: DE-121710 ,   Время доставки: 14 дней ,   Viimistlus:
533,61 €
