Delabie раковина полуутопленная QUADRA 380x380, Н/Р сталь AISI304 полированная

Артикул: DE-120652
Бренд:
Единица: шт
Время доставки: 14-21 дней
Цена:
657,00 €
Кол-во: - +
   - или -

DESCRIPTION

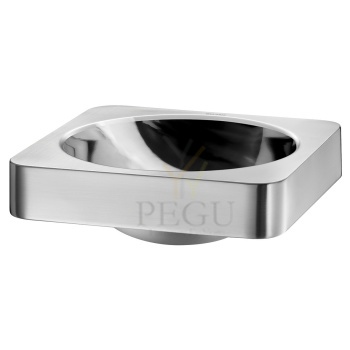

Semi-recessed QUADRA washbasin - Ref. 120652

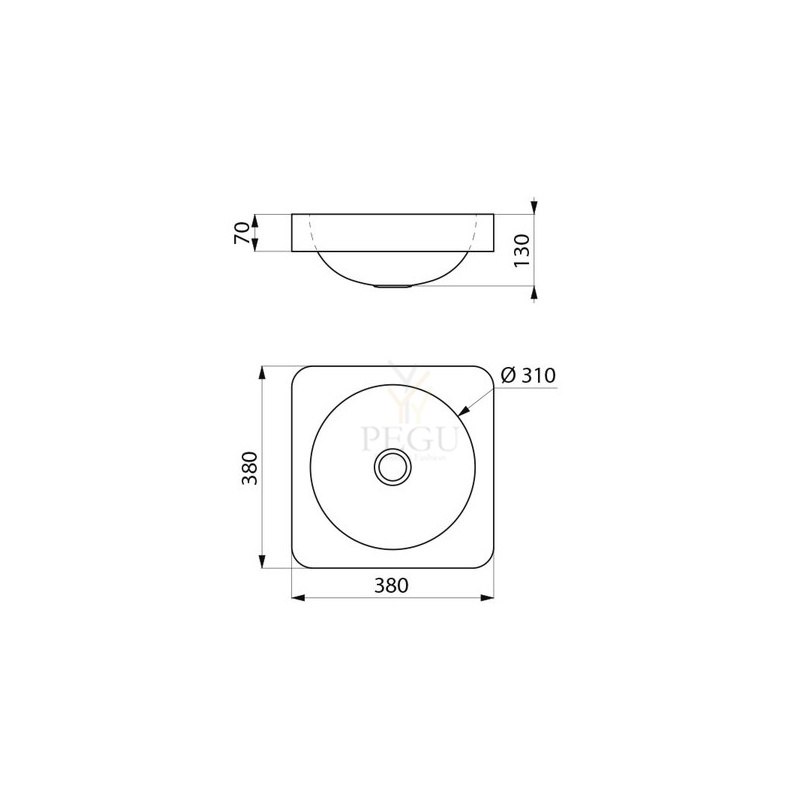

Semi-recessed washbasin, 380x380mm.
Suitable for use with wall-mounted or extended mixer/tap.
Basin internal diameter: 310mm.
Cutout diameter: 310mm.
Stainless steel thickness: 1.2mm.
Dual finish: bright polished basin interior and polished satin exterior. Stainless steel thickness: 1.2mm.
One-piece, seam-free pressed bowl.
Rounded edges prevent injury.
Supplied with 11⁄4" waste.
Without overflow.
CE marked. Complies with European standard EN 14688.
Weight: 3kg.

Файлы

Схожие продукты
Height: 100mm
Width: 145mm
Depth: 36mm
Weight: 0,45 kg.
Designer: Bønnelycke mdd
Material: Aluminium
Артикул: FROQ301414525 ,   Время доставки: 14-21 дней
109,00 €
For spare roll
Height: 175mm
Width: 65mm
Depth: 130mm
Weight: 0,45 kg.
Designer: Bønnelycke mdd
Material: Aluminium
Артикул: FROQ301516025 ,   Время доставки: 14-21 день
109,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
254,00 €

Kätepesuvalamu Endura ED1



600x415x130 mm
Артикул: I-ED1 ,   Время доставки: 14-21 день
327,00 €

For 4-10mm shelves (2 pcs./set). Available in 6 finishes. To be mounted with 2 screws. Q3003


Height: 22,5mm
Width: 22,5mm
Depth: 36mm
CC: 12,5mm
Weight: 0,2 kg.
Design: Bønnelycke mdd
Артикул: FROQ300303625 ,   Время доставки: 14-21 день
79,00 €
