Категории

Delabie раковина TEK TC нержавеющая сталь с краном 7 sek сатин

Артикул: DE-160340
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1155,00 €
Кол-во: - +
   - или -

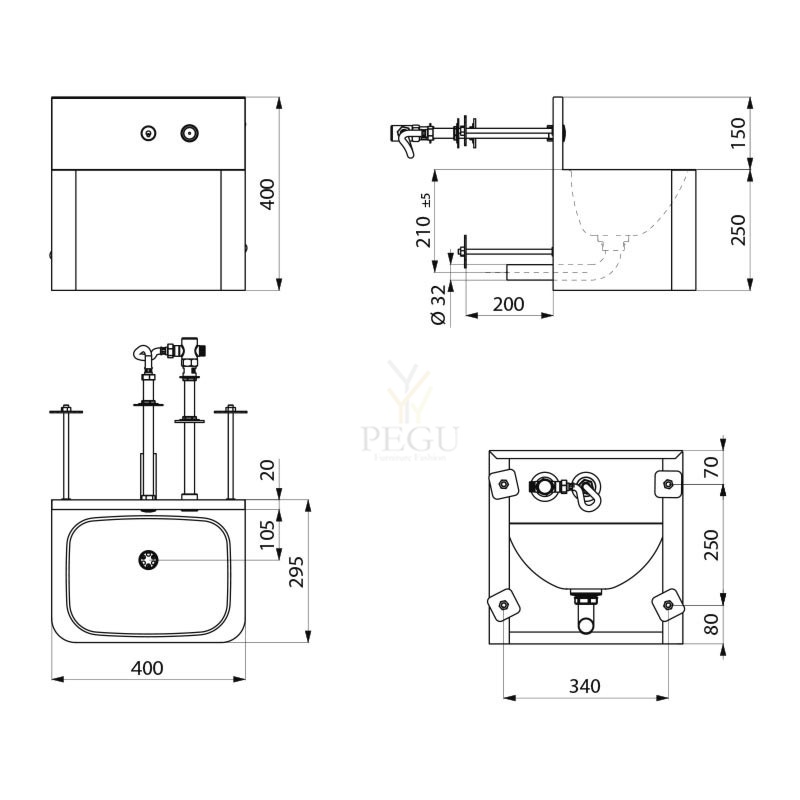

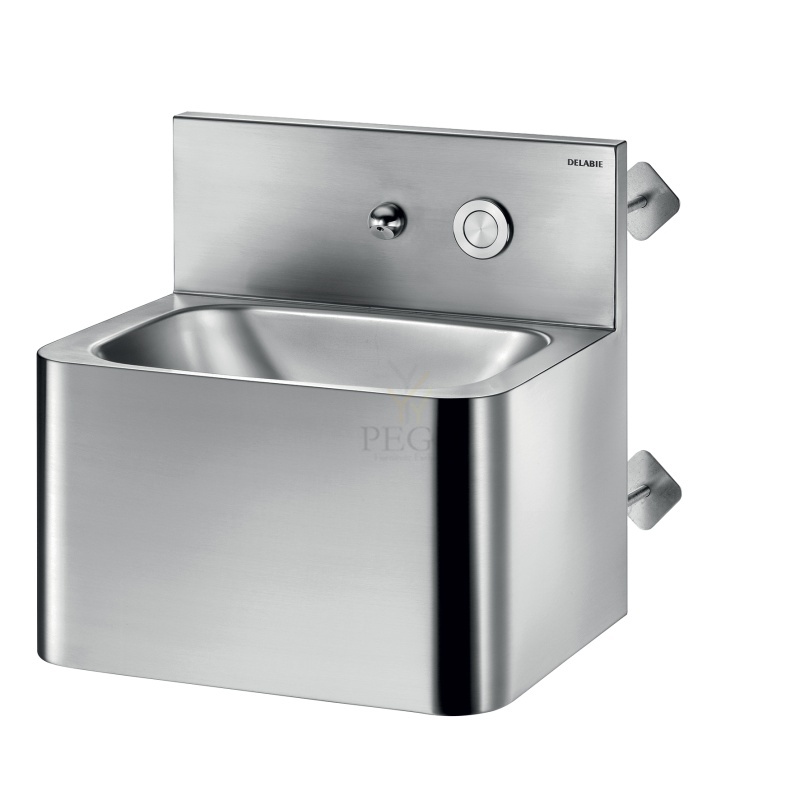

TEK TC washbasin
Ref. 160340

Wall-mounted washbasin, cross wall installation for service ducts.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths available on request.
Supplied with 1 time flow tap: stainless steel tamperproof push-button and anti-blocking, 7 seconds time flow.
Recessed horizontal waste outlet Ø 32mm.
Flat, perforated waste, without screws: easy to clean and vandal-resistant.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 9kg.

Файлы

Схожие продукты

1 1/4" keere + 300mm toru ja rosett

Артикул: PBS3 ,   Время доставки: 7 дней
52,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
254,00 €

AFO 01 stainless steel wall-mounted drinking fountain

AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • stainless steel sink with casing
  • press valve
  • corner valve with filter
  • flexible hose siphon
  • fixing bar
  • connecting hoses
  • anchoring material
Water inlet G 1/2"
Water pressure 0,2 – 0,6 MPa (recommended 0,3 MPa)
Outlet d = 40 mm
Inner dimension of the fountain d = 245 mm
Weight 4 kg



Артикул: AZP-AF001.CL ,   Время доставки: 3-4 недели
702,00 €

AFO 01.Yst. steel sensor controlled drinking fountain

AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.

Fountain is made by welding all components together.

Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).

Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).

St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.

The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.

Package contents

  • st. steel drinking fountain
  • nozzle
  • sensor and electronic
  • electromagnetic valve
  • connecting flexible hose
  • corner valve with filters
  • siphon
  • mounting material
water inlet G 1/2"
water pressure 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL)
  2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL)
outlet d = 40 mm
bowl inner dimension d = 245 mm
weigth 4 kg
suppply 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL)
  6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL)
power supply ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL)

Артикул: AZP-AFO01.YB.CL ,   Время доставки: 3-4 недели
883,00 €

TECHNICAL FEATURES

TEMPOSTOP time flow tap
Ref. 741943

Connector M1/2"
Technology Time flow
Length 200mm
Spout length 75mm
Flow rate 3 lpm

TEMPOSTOP time flow tap
Ref. 741943

Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is



Артикул: DE-741943 ,   Время доставки: 7-21 день
265,00 €
