Delabie раковина TRAPEZ 600x505 с отверстием под смеситель 35mm нержавеющая сталь сатин

Артикул: DE-121270
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
505,00 €
Кол-во: - +
   - или -

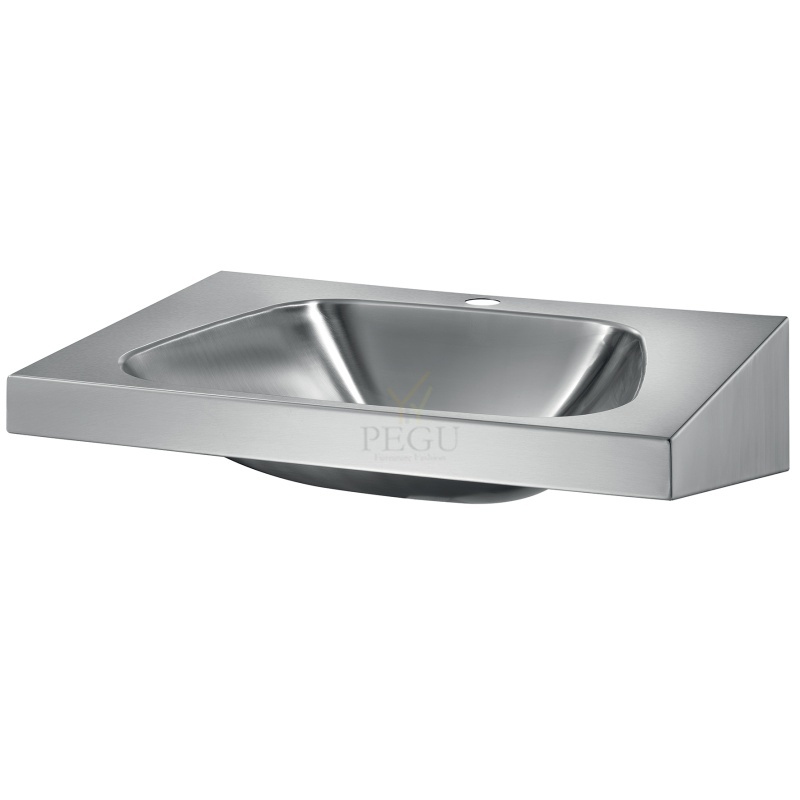

Wall-mounted TRAPEZ washbasin
Ref. 121270

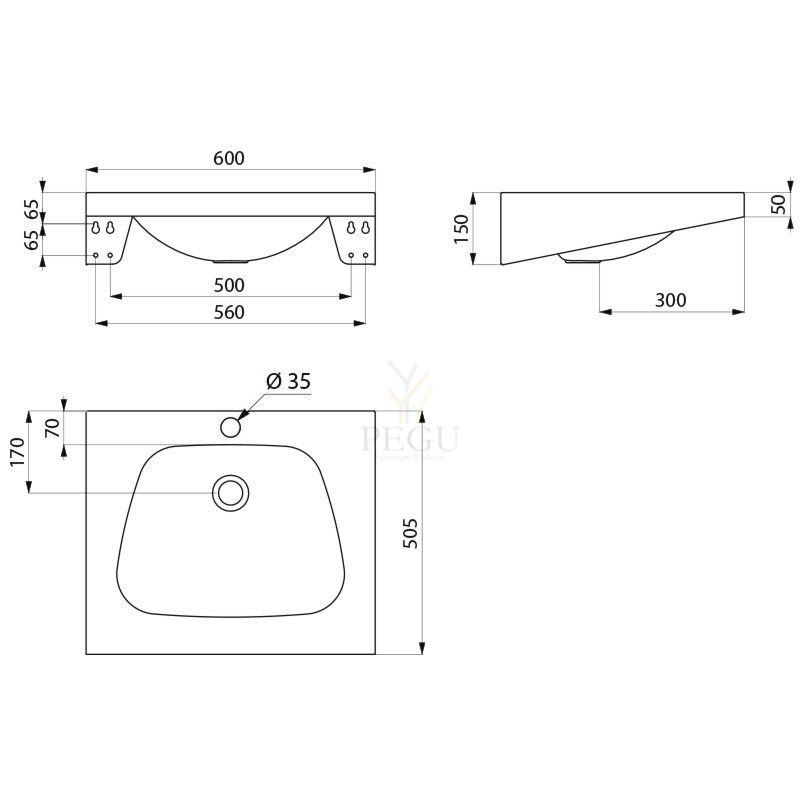

Wall-mounted washbasin, 600x505mm.
Shallow washbasin suitable for people with reduced mobility.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Supplied with 1 ¼" waste.
Without overflow.
With central tap hole Ø 35mm.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 5.5kg.

Файлы

Схожие продукты

AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.



The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.



It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.

Basic technical information
Water inlet: d= 34 - 50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 27 kg

Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material
  • Stainless-steel backrest
Артикул: AZP-AUZ 08 INV ,   Время доставки: 3-4 недели
1269,90 € (10%)
1411,00 €



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
254,00 €

AFO 01.SL

drinking fountain with spout for filling bottles designed to stand and to be attached to wall

AFO 01.SL is a drinking fountain with spout for filling bottles designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed. Second pressure valve serves for bottle filling.

In standard version the fountain is produced with a niche suitable for filling the bottle of 0.7 l. Fliountain with a niche for filling the botlles of 1.5 l can be made on order.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

TAutomatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Pressure valve with jet
  • Pressure valve for bottle filling
  • Flexible hose outflow
  • Fixing and connecting material
dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 2 - 6 Bar, recommended 3 Bar
weight 12 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"



Артикул: AZP-AFO01.SL ,   Время доставки: 3-4 недели
1353,00 €

Characteristics

  • stainless steel counter top washbasin
  • assembling by screws
  • material AISI - 304
  • brushed finish
Артикул: SA-SLUN77 ,   Время доставки: 14-21 день
589,00 €
