Delabie TEMPOMATIC душевой комплект с сенсором в с стену ≤ 155mm 230V/12V

Артикул: DE-452159
Бренд:

Единица: комплект
Время доставки: 14-21 день

инфо e-mail : info@pegu.ee

SÜGIS2021 код скидки ввести в поле купона при оформлении покупки!

kuumaks al.

Цена:

518,00 €

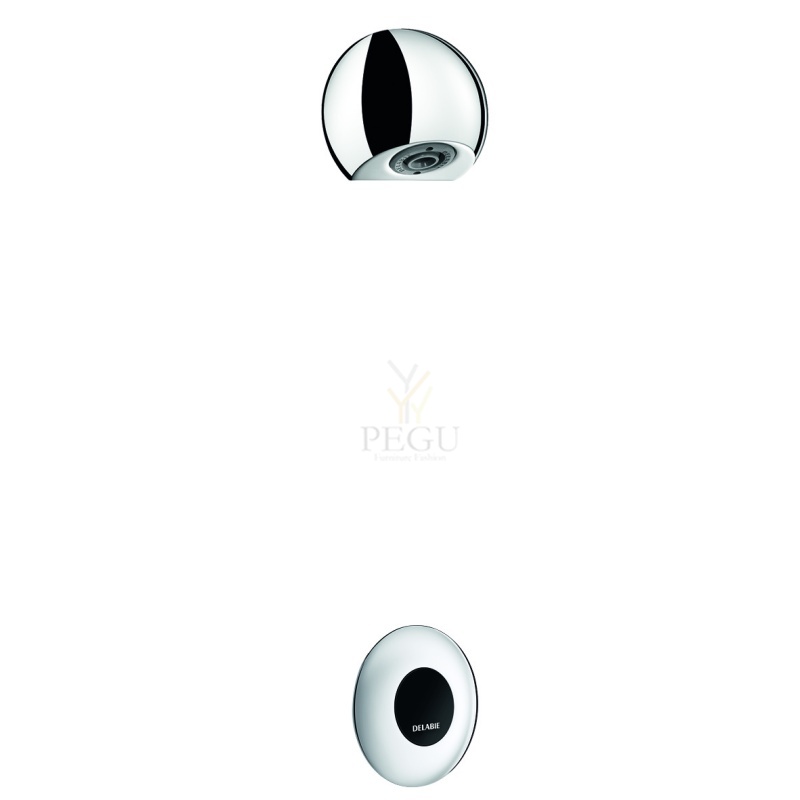

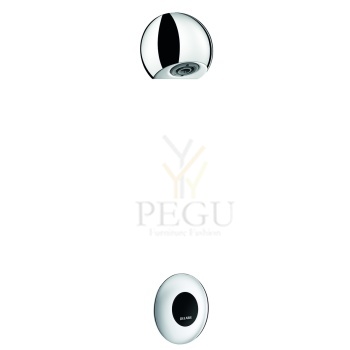

TEMPOMATIC shower kit
Ref. 452159

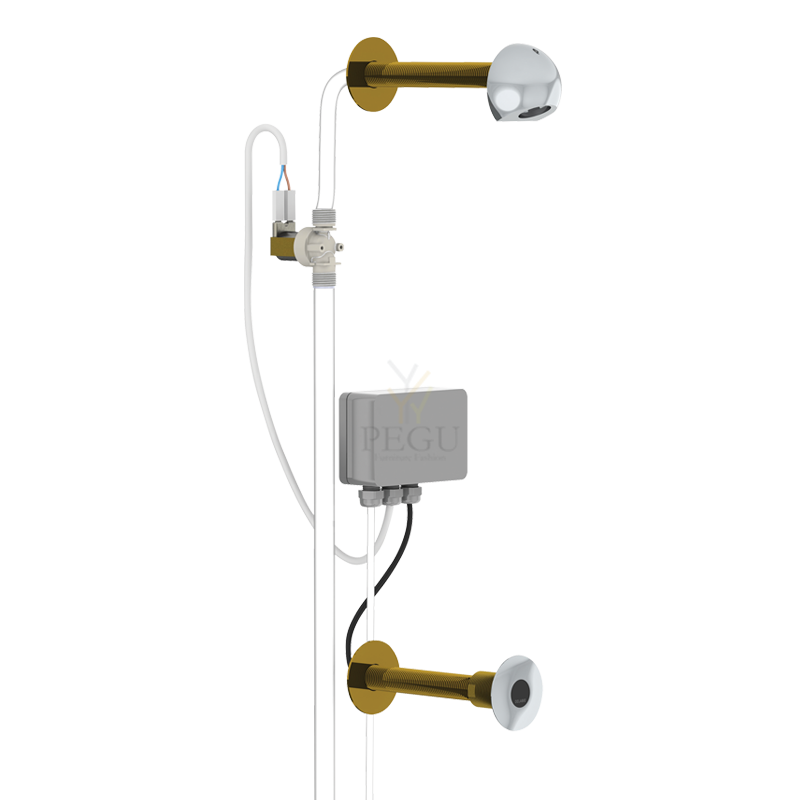

Cross wall electronic shower kit:
TEMPOMATIC electronic valve for mixed water supply.
For walls ≤ 155mm.
Power supply by electronic unit with solenoid valve 1/2".
230/12V transformer.
2 operation modes:
- Automatic activation via presence detection.
- Voluntary ON/OFF activation by passing the hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Chrome-plated solid brass.
Wall plate flush to the wall.
Threaded rods can be cut-to-size.

Файлы

452159.pdf

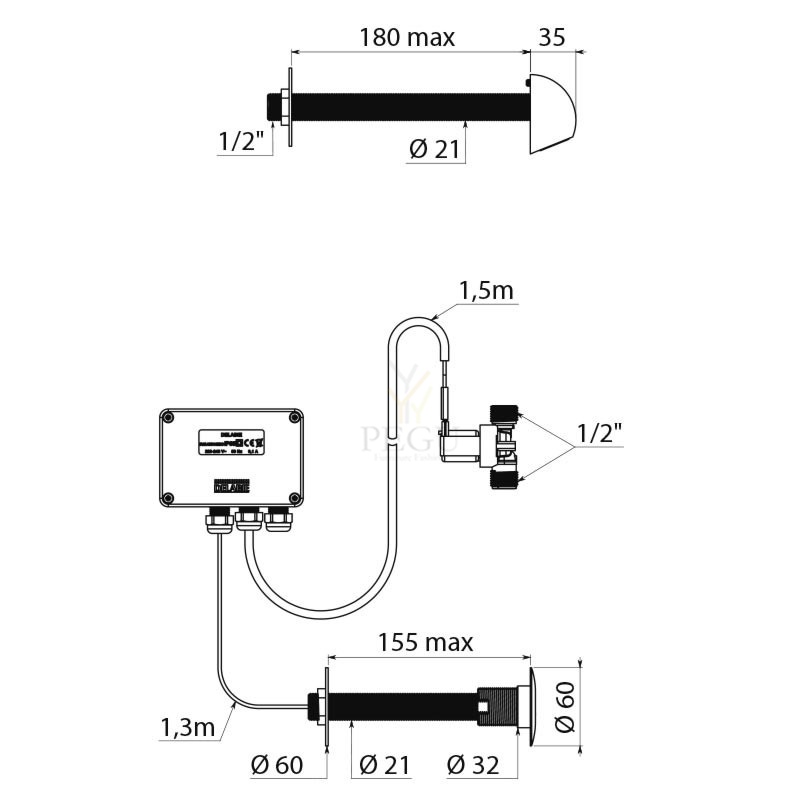

TECHNICAL FEATURES

TEMPOMATIC shower kit
Ref. 452159

Supply	230/12V mains supply
Connector	1/2"
Technology	Electronic
Length	155mm
Flow rate	6 lpm
