Delabie TEMPOMIX 3 самозапорный душевой смеситель 20-30 sek хром

Артикул: DE-794470
Бренд:
Единица: комплект
Время доставки: 14-21 день
Цена:
402,60 €
Kuumakse alates: 34,59 €
Кол-во: - +

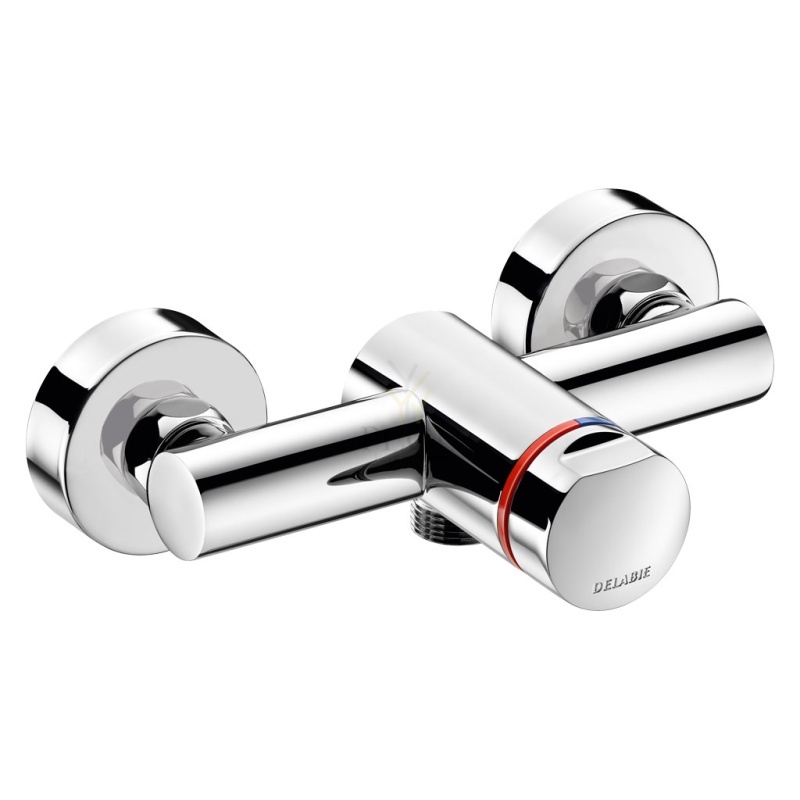

TEMPOMIX 3 shower mixer
Ref. 794470

Exposed time flow shower mixer:
TEMPOMIX 3 single control mixer, bottom outlet M3/4" with M1/2" connector.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
For wall-mounted, exposed installation.
Soft-touch operation.
Time flow pre-set at ~30 seconds, can be adjusted from 20 - 30 seconds.
Flow rate 9 lpm at 3 bar, can be adjusted.
Chrome-plated solid brass.
Integrated filters and non-return valves.
Chrome-plated metal push-button.
M1/2" offset connectors for 130 - 170mm centres.

Файлы

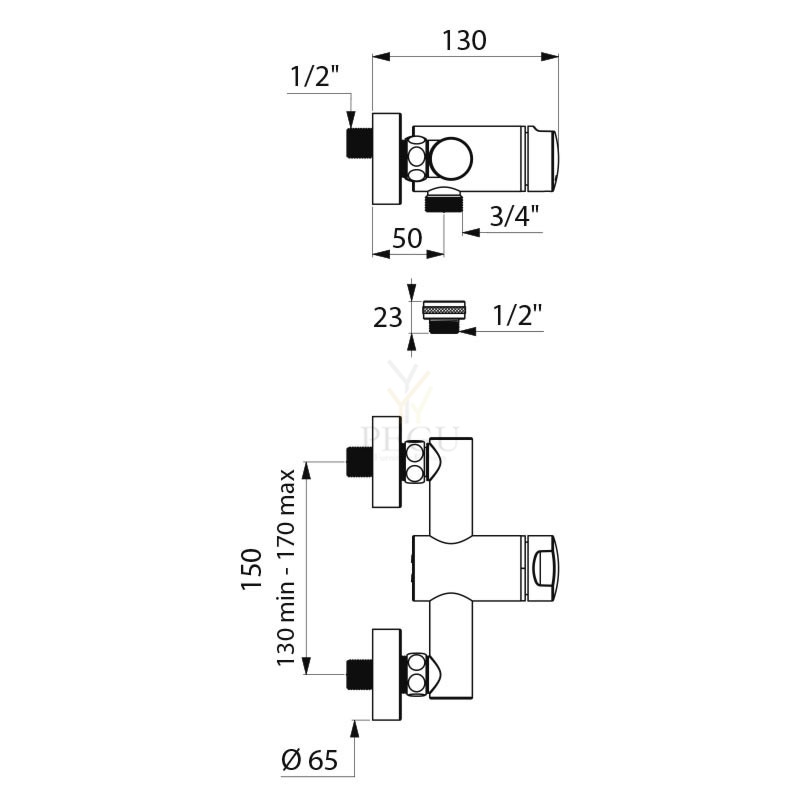

TECHNICAL FEATURES

TEMPOMIX 3 shower mixer
Ref. 794470

Connector M1/2''
Technology Time flow
Width 150mm
Flow rate 9 lpm
