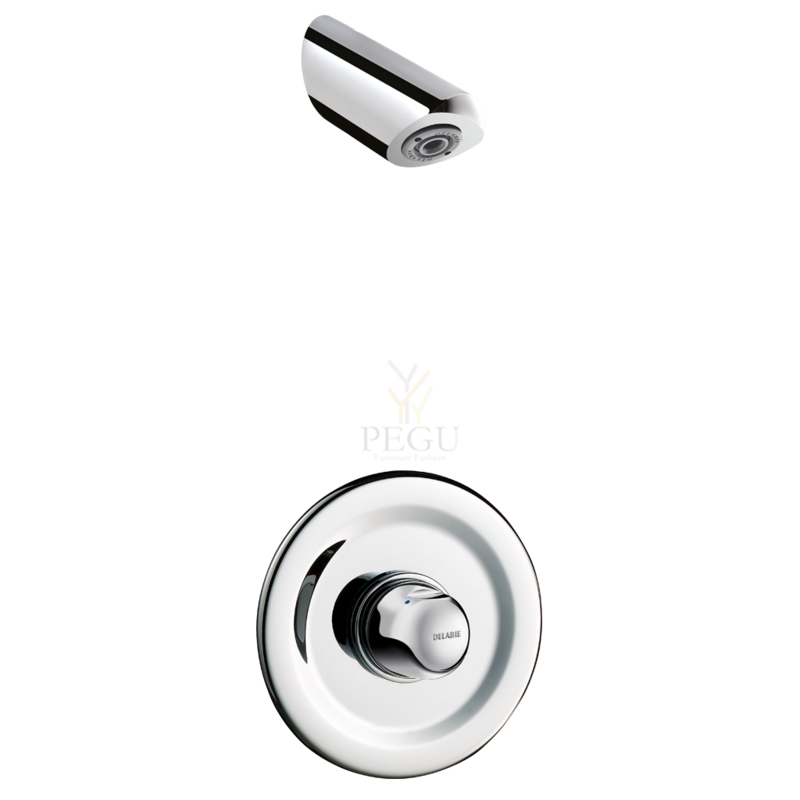

Delabie TEMPOMIX душевой комплект, с настройкой на выключение 30 sek , самовыключающийся

Артикул: DE-790912
Бренд:
Единица: комплект
Время доставки: 14 дней
Цена:
671,00 €
Kuumakse alates: 57,04 €
Кол-во: - +
   - или -

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.

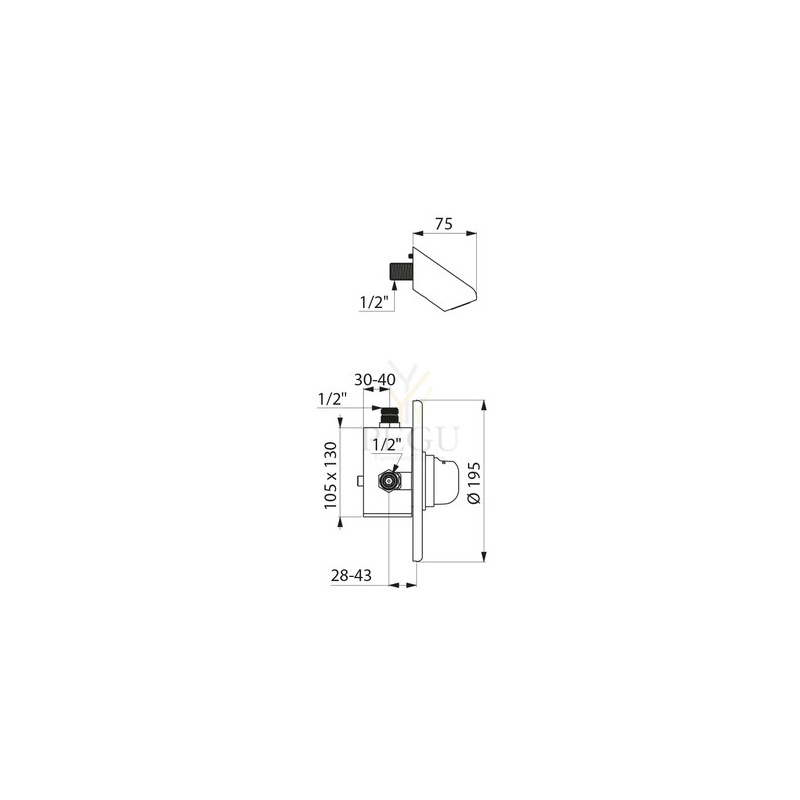

Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).



TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
